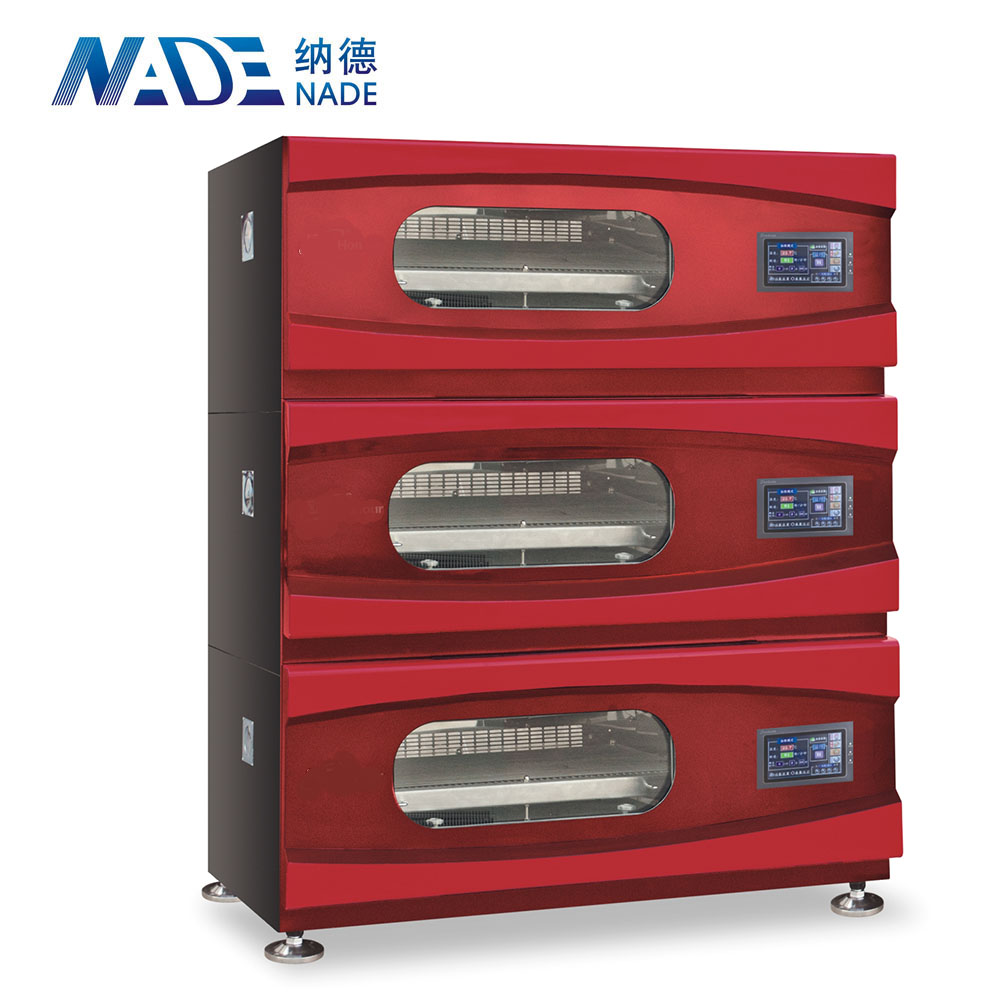

Nade Laboratory Superposition of constant temperature laboratory incubator shaker HNY-103T

  • Peristaltic pump Head

  • Laboratory Thermostatic Devices

  • other

  • Nade

  • HNY-103T

  • China

  • 174L

  • 1000W

  • 5℃-25℃

  • one(per unit)

  • ambient +5°Cto 60°C( refrigeration)

  • 0-999.9(Any time,continuous duty)

  • convolution

  • P.I.D microprocessor chip

  • forced convection

Product Description

Nade Laboratory Superposition of constant temperature incubator shaker HNY-103T

Product Description

1,Advanced USB data automatic record, download and processing system. As well as it has large storage, and automatic recording & saving in the full test processing

2,The data could be directly downloaded by USB in a minute or automatically downloaded by wireless, without the hassle of moving computers and replacing printing papers.

3, Automatic analyzing, listing table, charting and printing on downloaded dates. Easy replay the data by clicking the mouse; it can trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.

4, Multi-steps rotate speed, temperature and time control systems. Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation (touch screen only).

5, The ultra low speed starts, startup speed is adjustable. If the speed out of control, it will be locked automatically.

6,Adjustable closed cycle heating & cooling systems are controlled electronically. Both consistent temperature and temperature evenness are ensured by the mute fan, forced convection and the duct design.

7, The mode of cooling is automatic which can automatically switch opening or closing of the refrigeration system according to the changes of environment temperature. It is without manual operation.

8,The technology of smart refrigeration frost-free operation can make the equipment stably operate in low temperature for a long time and; and it has automatic defrost function.

9, high-precision speed control: PID feedback control, the motor speed is stable and accurate, the accuracy of ± 1RPM

10,high-precision temperature control: PID feedback control, the measurement accuracy of 0.1 °C, the measured temperature deviation from the set value ≥ ± 3 °C, audible and visual alarm

11,Unique drive system makes the machine running smoothly, stably, durably and reliably.

12,Intelligent sound and light alarm environmental scanning micro-processing controller, the machine has the functions of automatic stop protection by opening the door, self-diagnostic, and security alarm.

13,The operating parameters can be memorized and protected. Unexpected power outage, the original set-up process can be automatically resumed.

14,The operating parameters are encrypted and locked, which can avoid human errors. The machine has the functions of Light and ultraviolet disinfection.

15,Automatic power protection devices when the motor is overheating or the temperature is out of control

16,The machine can run continuously or be timing. It can display the set time and time remaining

17,A unique slow-start design, preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments

18,Three layers structure, over an area of an area small, the large using space.

Specification

model

HNY-103T

specifications

control model

P.I.D microprocessor chip

convection model

forced convection

shake model

convolution

display

LCD

Drive mode

Unidimensional drive

system of USB data download and analysis

Yes

control system

mutiple segments temperature, speed, time, control system

cyclotron frequency range(rpm/min)

0;10-300(To do static culture)

cyclotron frequency sensitivity(rpm)

±1

Orbit Diameter(mm)

Φ26

maximum capacity

250ML×32 OR 500ML×21 OR 1L×13 OR 2L×7(per unit)

standard capacity

clipboard(per unit)

size of platform(mm)

610×460

timing range(h)

0-999.9(Any time,continuous duty)

temperature range(℃)

ambient +5°Cto 60°C( refrigeration)

temperature sensitivity(℃)

±0.1

temperature uniformity(℃)

≤0.3(37℃)

temperature uniformity(℃)

≤0.1(37℃)

number of platform

one(per unit)

outside dimension(W*D*H)(mm)

1120×790×620(per unit)

capacity(L)

174

power(W)

1000

power supply

AC220±10%50-60HZ

outside temperature(℃)

5-25

Certifications

Nade Laboratory Superposition of constant temperature laboratory incubator shaker HNY-103T

Packaging & Shipping

Nade Laboratory Superposition of constant temperature laboratory incubator shaker HNY-103T Nade Laboratory Superposition of constant temperature laboratory incubator shaker HNY-103T

Company Information

Nade Laboratory Superposition of constant temperature laboratory incubator shaker HNY-103T

Nade Laboratory Superposition of constant temperature laboratory incubator shaker HNY-103T

Our Services

Nade Laboratory Superposition of constant temperature laboratory incubator shaker HNY-103T

FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
