1 year
Laboratory Thermostatic Devices
other
Nade
HNY-202T
China
280L
1800W
one(per unit)
4°Cto 65°C(25℃)
±0.1℃
convolution
P.I.D microprocessor chip
forced convection
LCD Display
136*83*62cm
Product Description

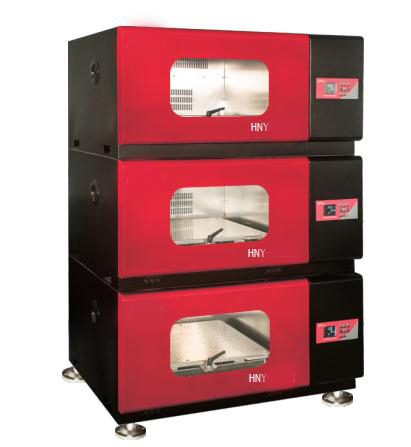

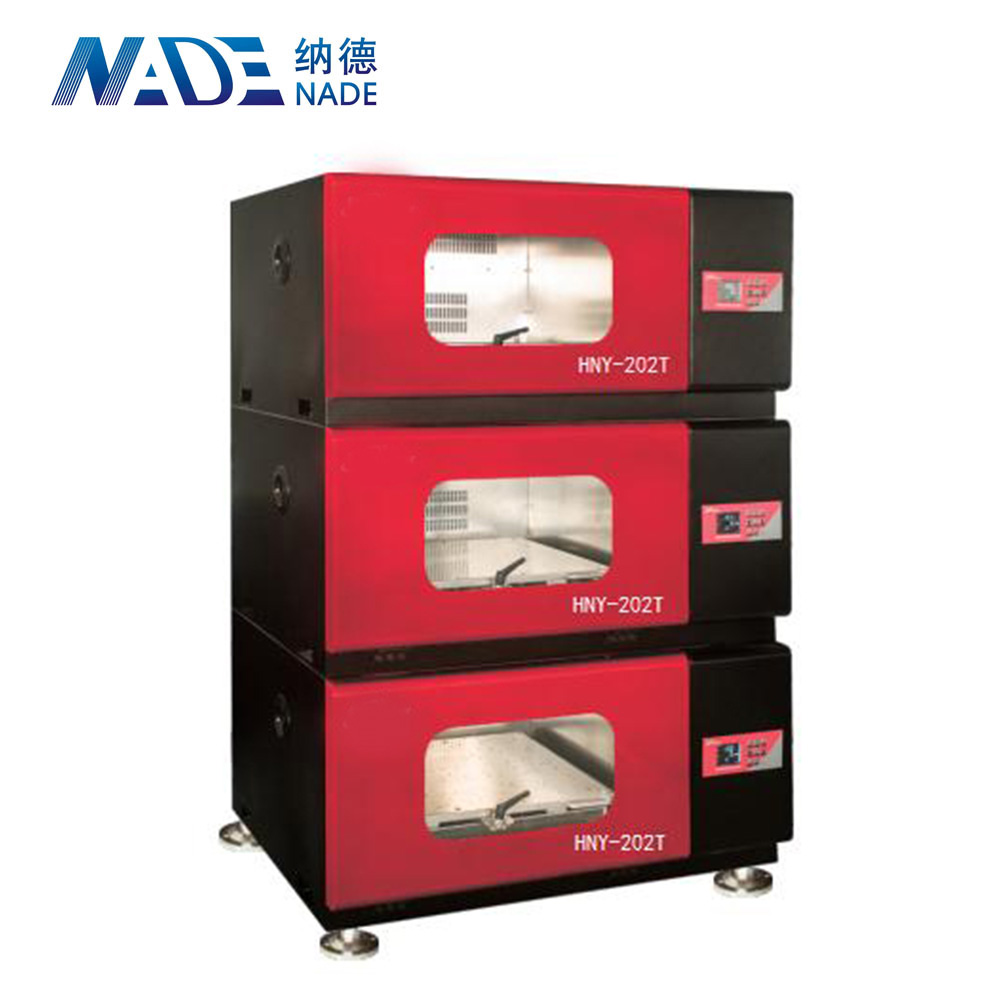

Nade Superposition of constant temperature incubator shaker HNY-202T
Pull out rail platform. It can easily pull the platform out to load or unload fixtures and then push it back and lock, which is fast and convenient to operation.
Three stackable layers structure. Each layer can be independently controlled. Temperature, speed and time can be set alone. Users can run any layer according to need.Note: stackable incubator shaker would be optional high temperature incubator shaker (temperature up to 80 ℃); Humidifying incubator shaker.
High pressure water rinses the bottom of the chamber and platform. Simple cleaning, fast and efficient.
Advanced USB data automatic record, download and processing system. It has large storage, and automatic recording & saving in the full test processing. The data could be directly downloaded by USB or automatically downloaded by wireless.
Automatic analyzing, listing table, charting and printing on downloaded dates. It can trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.
High quality servo motor. Speed control accurately, noiseless, durable and high efficiency.
Multi-steps rotate speed, temperature and time control systems. Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.
Slow accelerate and decelerate design. Slowly start and stop, prevent bacteria or cells to shear force is too large and damage.
Advantaged air duct design. Air duct design contributes to high-precision temperature uniformity.
Automatic defrosting function. It makes shakers operating stably in low temperature for a long time.
| model | HNY-202T |
| specifications | |
| control model | P.I.D microprocessor chip |
| convection model | forced convection |
| shake model | convolution |
| display | LCD |
| Drive mode | Multidimensional drive |
| system of USB data download and analysis | Yes |
| control system | Multiple Programmable mode(temp,speed,time) |
| cyclotron frequency range(rpm/min) | 0;20-350(top floor 20-300)(To do static culture) |
| cyclotron frequency sensitivity(rpm) | ±1 |
| Orbit Diameter(mm) | Φ26 |
| maximum capacity(Flask clamp) | 250ML×60 OR 500ML×40 OR 1000ML×20 OR 2000ML×11(per unit) |
| standard capacity(Sticky board) | 250ML×55 OR 500ml×33 OR 1000ML×18 OR 2000ML×15(per unit) |
| size of platform(mm) | 830×510 |
| timing range(h) | 0-9999(Any time,continuous duty) |
| temperature range(℃) | 4°Cto 65°C( refrigeration) |
| temperature sensitivity(℃) | ±0.1 |
| temperature uniformity(℃) | ≤0.7(37℃) |
| temperature uniformity(℃) | ≤0.1(37℃) |
| number of platform | one(per unit) |
| outside dimension(W*D*H)(mm) | 1360×830×620(per unit) |
| capacity(L) | 280 |
| power(W) | 1800 |
| power supply | AC220±10%50-60HZ |
| outside temperature(℃) | 5-30 |
