Zhejiang, China
Nade
1~32
20~1000ul
>95%
32
96 Deepwell plate
Lysis, Sample binding, Washing and elution
100 copy sample positive rate >95%
Nucleic Acid Analyzer
Lab
AC110V~220V 10%
Product Description

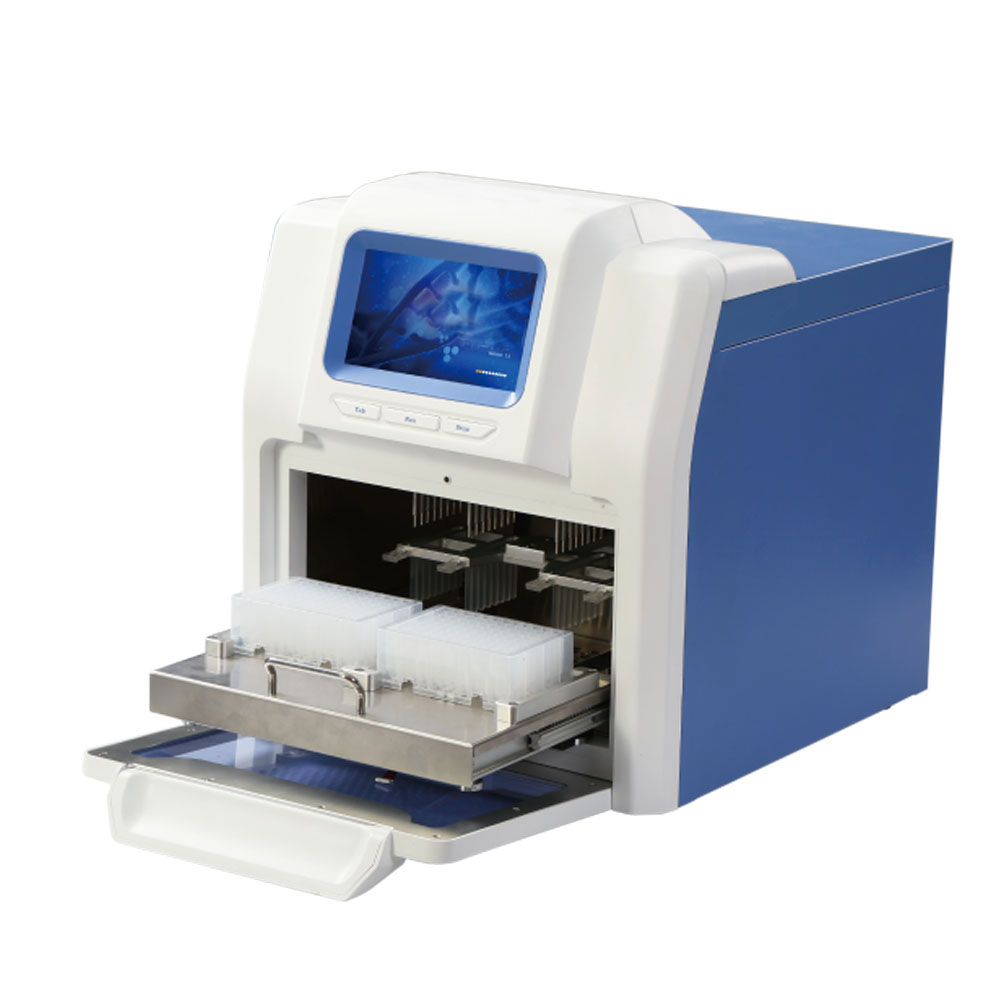

Nade Nucleic Acid Purification System Auto-Pure32A
Auto-Pure20 / Auto-Pure32A is a bench top device for DNA and RNA purification by using magnetic separation technology from different starting materials, such as blood, cultured cells or bacteria, tissues, cell-free body fluids and plant samples. The device is capable of using magnetic rods to transfer particles through the various purification phases of binding, mixing, washing and elution, offering a solution with minimized hands-on time. The DNA and RNA purification is of high quality and high molecular weight.
1. It is easy to use with 7 inch touch screen
2. Very simple operation (easy to install, operate, maintain) without computer
3. Very fast extraction protocol, 15~40 minutes / cycle depending on sample typeand method
4. Universal built-in program for easy using
5. High purity and excellent yield of nucleic acid
6. UV lamp to avoid cross contamination
7. 3 shortcut key to make for easy running, stopping the magnetic beads program
8. Open system can optimize purification proposal according to various magnetic beads kits
9. Drawer design to prevent possible injuries
10. With special plastic consumables to avoid cross contamination
11. Improves workflow, and allows staff to perform other value-added tasks
12. Ensures impurities are removed; improved sample quality leads to better downstream analyses
13. Capable of extracting 1~20 samples or 1~32samples per run and process samples up to 1ml, 3ml and 5ml
14. Alarm for indicating the completion of purification
15. Pause function for emergent stop
| Type | Auto-Pure32A |
| Throughput | 1~32 |
| Process volume | 50~1000ul |
| Collection efficiency | >95% |
| Magnetic rod number | 32 |
| Purification accuracy | 100 copy sample positive rate>95% |
| Stability | CV<5% |
| Plate types | 96 Deepwell plate |
| Healting for lysis tube | Ambient temperature~120°C |
| Heating for elution tube | Ambient temperature~120°C |
| Operation | 7 inch color touch screen |
| Extraction steps | Lysis, Sample binding, Washing and elution |
| Storage Capacity | more than 100 programs |
| Protocol Management | Create, edit, delete, protocol mode |
| Pollution Control | UV light |
| Lighting | Yes |
| Extension interface | 4 standard USB port, built-in SD card |
| Exhaust | Fan |
| Power Supply | 450W |
| Dimensions | 400×470×450 mm |
| Weight | 25Kg |

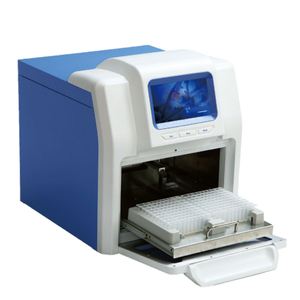

Auto-Pure20,pls click picture for more details
Our Packaging Details:
Our Shipping
Hot Selling Products..........
 |  |  |
 |  |  |
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
