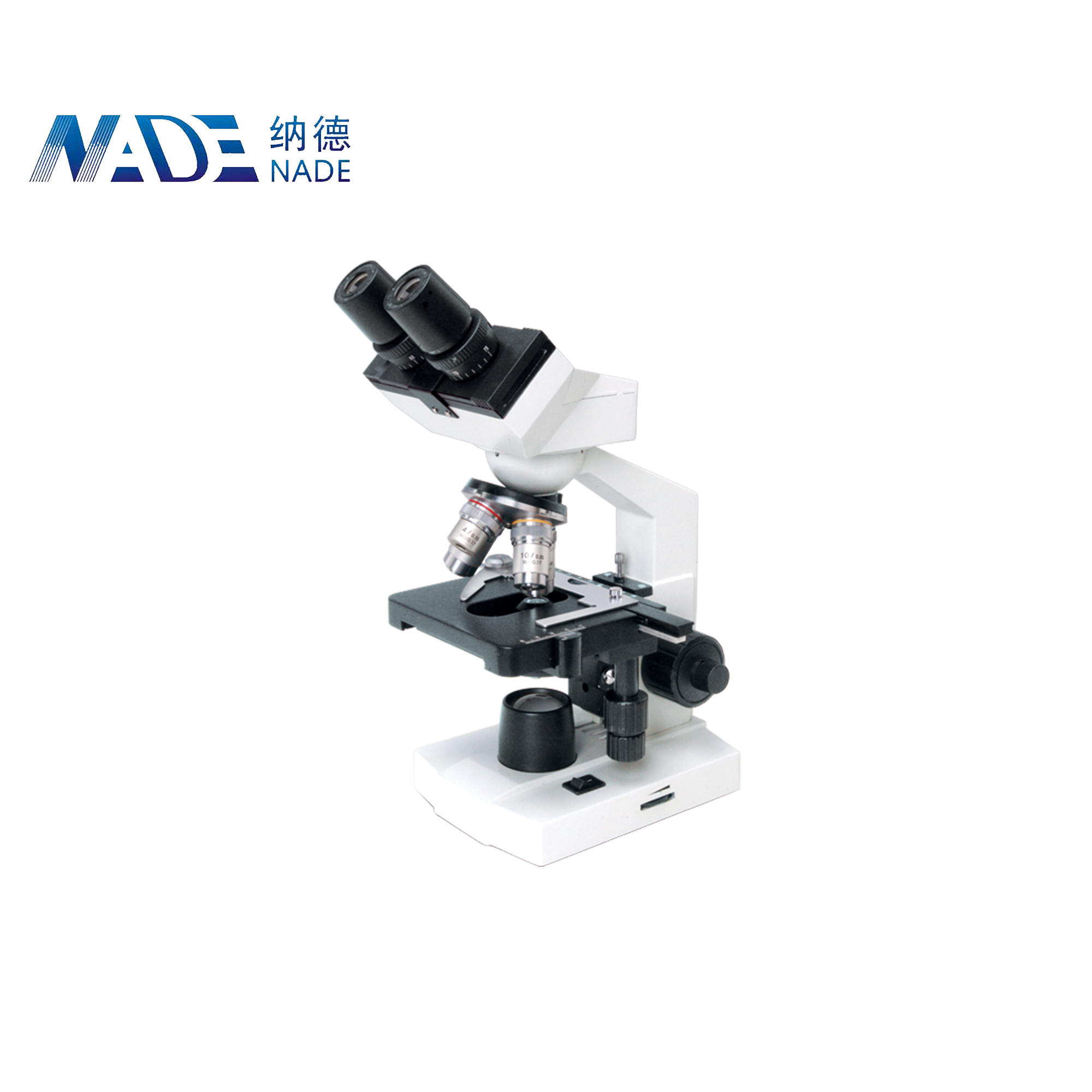

Nade N-10E Biological Binocular Microscope

  • 1 YEAR

  • other

  • Zhejiang, China

  • Nade

  • N-10E Binocular Head

  • Biological Microscope

  • BINOCULAR

  • 4X 10X 40X 100X

  • Biological Binocular Microscope

  • N-10E Binocular Head

  • Sliding Binocular, Inclined at 45°, 360° Rotatable

  • Quadruple Nosepiece

  • Wide Field Eyepiece WF10x

Product Description

Nade N-10E Laboratory Biological Binocular Microscope

Product Description

Description

N-10 series microscope is an economical microscope with all basic features for educational use in elementary and high school.

Nade N-10E Biological Binocular Microscope

Specification

N-10E

Viewing Head

Monocular, Inclined at 45°, 360° Rotatable

Sliding Binocular Head, Inclined at 45°

S

Nosepiece

Triple Nosepiece

Quadruple Nosepiece

S

Eyepiece

Wide Field Eyepiece WF10×

S

Eyepiece 5×, 16×

O

Eyepiece WF10× with Pointer

O

Objective

Achromatic Objective 4X, 10X, 40X(S)

S

Achromatic Objective 20X, 60X

O

Achromatic Objective 100X

S

Stage

Plain Stage with Slide Clips
110×120mm

Plain Stag with Attachable Mechanical 110×120mm/ 60×30mm

Double Layers Mechanical Stage
110×120mm/ 70×20mm

S

Focusing

Coaxial Coarse and Fine Adjustment

S

Condenser

Single Lens NA 0.65 with Disc Diaphragm

Single Lens NA 0.65 with Iris Diaphragm

Abbe NA 1.2 with Iris Diaphragm & Blue Filter, Spiral Adjustment for Condenser

Abbe NA 1.2 with Iris Diaphragm & Blue Filter, Rack and Pinion Adjustment for Condenser

S

Illumination

Incandescent Lamp Illumination 15W, Brightness Adjustable

S

LED Lamp Illumination 1W, Brightness Adjustable

Mirror

O

Note: "S" Standard Outfit, "O"Optional
Packaging & Shipping

Nade N-10E Biological Binocular Microscope

Nade N-10E Biological Binocular Microscope

Company Information

Nade N-10E Biological Binocular Microscope

Nade N-10E Biological Binocular Microscope

Our Services

Nade N-10E Biological Binocular Microscope

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
