1 year, 1 year
other
Zhejiang, China
Nade
Nano-100
200*250*166mm
2.6KG
Spectrophotometer
200-800nm
0.2mm (For high concentration measwrement) 1.0mm (For ordinary)
Xenon flash lamp
1nm
≤3nm (FWHM at Hg 546nm)
0.003Abs
1% (7.332Abs at 260nm)
0.02 - 90A (10mm equivalent)
Nano-100
Product Description

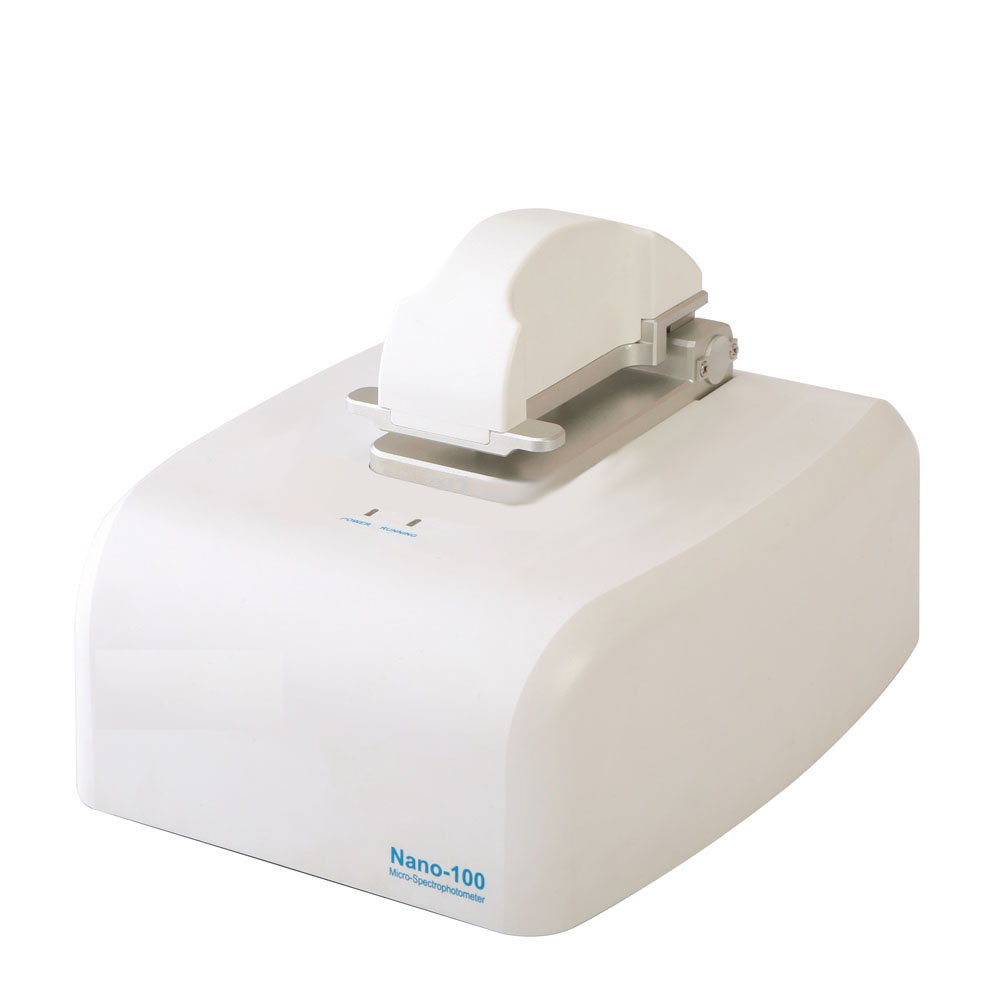

Nade Laboratory Micro Spectrophotometer Nano-100
The Nano-100 is a perfect instrument for micro-volume UV-VIS spetrophotometer, designed specifically for the life science market. It can accurately measure DNA, RNA and Oligonucleotide calculations, protein assays etc.. The Nano-100 utilises CCD detector, a Xenon light source for long lifetime lamp together with simple software. Simple pipette 0.5~2μl sample onto the pedestal, laying down the sampling arm, it can complete the measurement within 5 second.
Applications:
Easy Handling:
FEATURES
1. Turn on and instantly measure without lamp warm up time; Full scan capability from 200-800nm within 10 sec
2. User-freiendly software: It’s easy to use, and as always free software updates are available
3. Simply pipette a sample onto the the pedestal, measure, wipe the pedestal
4. Only require 0.5~2μl sample to accurate determinate of nucleic acids, proteins
5. Xenon flash lamp, 10 flashes, up to 10 years, no cells or cuvetes
6. Direct measurement without wasteful dilitions and expensive comsumables
TECHNICAL DATE
| Model | Nano-100 |
| Wavelength Range | 200~800nm |
| Minimum Sample Size | 0.5~2.0ul |
| Path Length | 0.2mm (For high concentration measwrement) 1.0mm (For ordinary) |
| Light Source | Xenon flash lamp |
| Detector Type | 3864-element linear silicon CCD array |
| Wavelength Accuracy | 1nm |
| Spectral Resolution | ≤3nm (FWHM at Hg 546nm) |
| Absorbance Precision | 0.003Abs |
| Absorbance Accuracy | 1% (7.332Abs at 260nm) |
| Absorbance Range | 0.02 - 90A (10mm equivalent) |
| Detects Nucleic Acid up to | 2~4500ng/ul (dsDNA) |
| Measurement Time | <10s |
| Dimensions (W x D x H)mm | 200 x 250 x 166 |
| Weight | 2.6kg |
| Sample Pedestal Material | Aluminum alloy and Quartz fiber |
| Operating Voltage | 24VDC |
| Operating Power Consumption | 20W |
| Standby Power Consumption | 5W |
| Software Compatibility | Windows 7, Windows XP |
