Nade Lab Intelligent Microwave System for Digestion XT9912

  • Laboratory Heating Equipments

  • China

  • 40kg

  • 1600w

  • 110/220AC,50-60Hz

  • 2450 MHz

  • 65L

  • Microwave Digestion System

  • XT-9912

  • Lab

  • 1 Year

  • 50kgs

Product Description

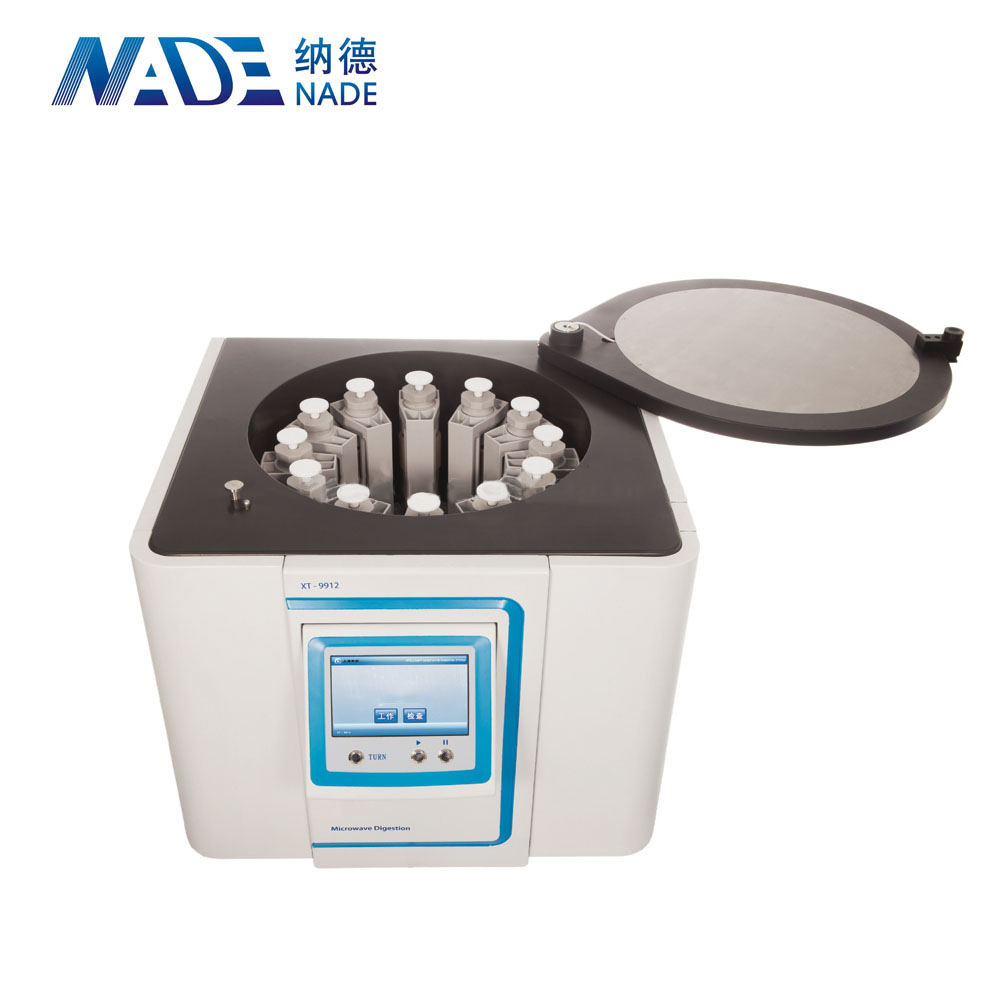

Nade XT-9912 Intelligent Microwave Digestion System

Product Description

Intelligent Microwave Digestion Parameter

1.Microwave output power and frequency: 0-1300W, stepless adjustment; 2450 MHz

2.Microwave resonance radiation cavity: 65L, internally installed corrosion resistant internally clapboard

3.Multi-vessel pressure monitoring: 0.1~5MPa (precision:±0.01MPa); multiple non-contact pressure sensors, real-time monitoring, display and control the true pressure of 12 digestion vessels

4.Multi-vessel temperature monitoring: 0-250°C(precision:±1°C); multiple non-contact temperature sensors, real-time monitoring, display and control the true temperature of 12 digestion vessels

5.Number of digestion sample: simultaneously digest 12 samples of same or different interstitial substance contents. The user may freely digest or extract 1-12 samples

Multiple safety measures:

1.High pressure exterior vessel: PSF exterior vessel with PPS liner, maximum pressure endurance is 6MPa (900 psi).
2.Overheating protection: when the case or the exterior vessel is overheated, instrument will warn and suspend the microwave radiation
3.Abnormal noise detection: when abnormal noise is made in the furnace chamber, instrument will warn and cut off microwave automatically.
4.Abnormal pressure warning: a unique device of ‘optical fiber non-contact displacement sensor’, real-time monitor and control the pressure in the digestion vessel, display every vessels’ pressure change by screen. Independently monitor each vessel’s reaction situation, avoid overpressure caused by single sample’s too violent reaction. Pressure auto matching control and rise speed limitation, when the pressure is much too high or the rise speed is too fast, instrument warns and cuts off the microwave output.
5.High strength bursting framework and design of dual protective door, effectively assure the safety of operator.
6.Dual pressure reduction by inner vessel’s air bleed hole and bursting film: when the gas pressure in the digestion vessel is too large, gas will leak from the air bleed hole; when the pressure is larger than the limit value and the hole can’t leak the air in time, the skirt border of the sealing bowl will broken, then leak gas and reduce pressure.
7.Double security door
Packaging & Shipping

Our Packaging Details:

Nade Lab Intelligent Microwave System for Digestion XT9912

Our Shipping

Nade Lab Intelligent Microwave System for Digestion XT9912

Company Information

Nade Lab Intelligent Microwave System for Digestion XT9912

Nade Lab Intelligent Microwave System for Digestion XT9912

Our Services

Nade Lab Intelligent Microwave System for Digestion XT9912

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
