1 year
Laboratory Thermostatic Devices
other
Nade
HNY-810
China
LED(digital display)
80W
250ML*12
one
convolution
P.I.D microprocessor chip
Unidimensional drive
460*380mm
AC220±10%50-60HZ
Product Description

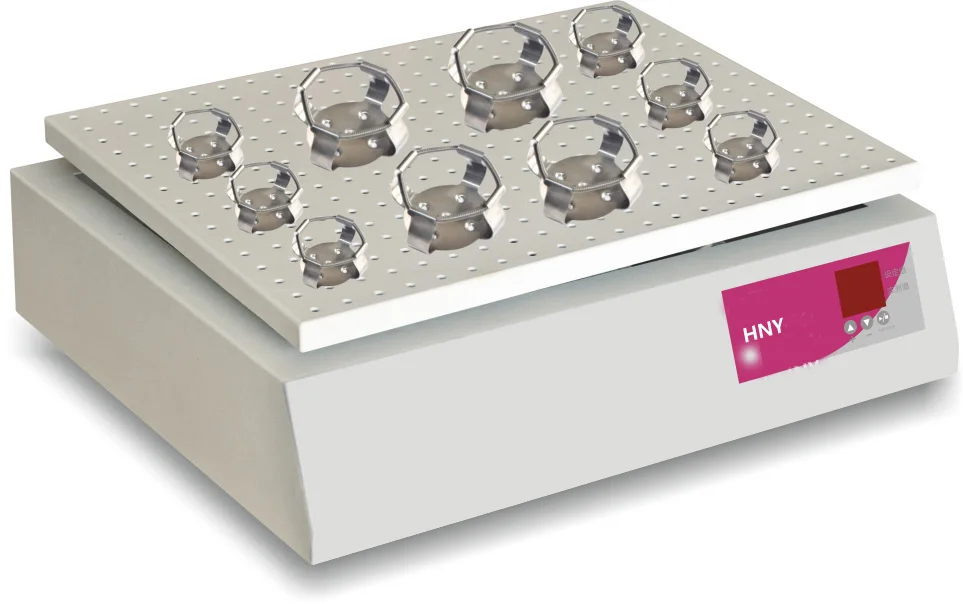

Nade Cheapest Open Laboratory Incubator Shaker Supply With Various Types
The HNY shaker is an open-type oscillating device, which is used for the centralized temperature control in the same control room, the mass production of cluster oscillation, easy to operate and economical and practical.
1. Super low speed startup function, the starting torque can be adjusted.
2. Call recovery function.
3. Ac induction motor, torque can be adjusted without carbon brush, constant speed, speed adjustment, and maintenance.
4. Adopt the speed-up control circuit, slowly start up and steadily accelerate to ensure the safety of experimental samples.
| model | HNY-810 |
| specifications | |
| control model | P.I.D microprocessor chip |
| shake model | convolution |
| display | LCD(digital display) |
| Drive mode | Unidimensional drive |
| cyclotron frequency range(rpm/min) | 20-300 |
| cyclotron frequency sensitivity(rpm) | ±1 |
| Orbit Diameter(mm) | Φ26 |
| maximum capacity | 100ML×22 OR 250ML×12 OR 500ML×8 |
| standard capacity | 250ML×12 |
| size of platform(mm) | 460×380 |
| number of platform | one |
| outside dimension(W*D*H)(mm) | 460×410×250 |
| power(W) | 80 |
| power supply | AC220±10%50-60HZ |
| Net weight(kg) | 32 |
| Gross weight(kg) | 45 |
