ND-105MW Halogen Moisture Analyzer Moisture Meters

Capacity: 110g
Readability: 0.005g
Operating Temp: 5℃-35℃
Display: LCD(White back light with black font)


Availability:
  • ND-105MW
  • NADE
  • 220V 50HZ/110V 60HZ
  • 1
  • 1 year
  • China

Product Description

XY-105MW

Introduction:

Widely used in industrial,agriculture,laboratory applications.Some typical applications are :

Tobacco,paper,food,tea,com,chemical,row materials, etc.

Features:

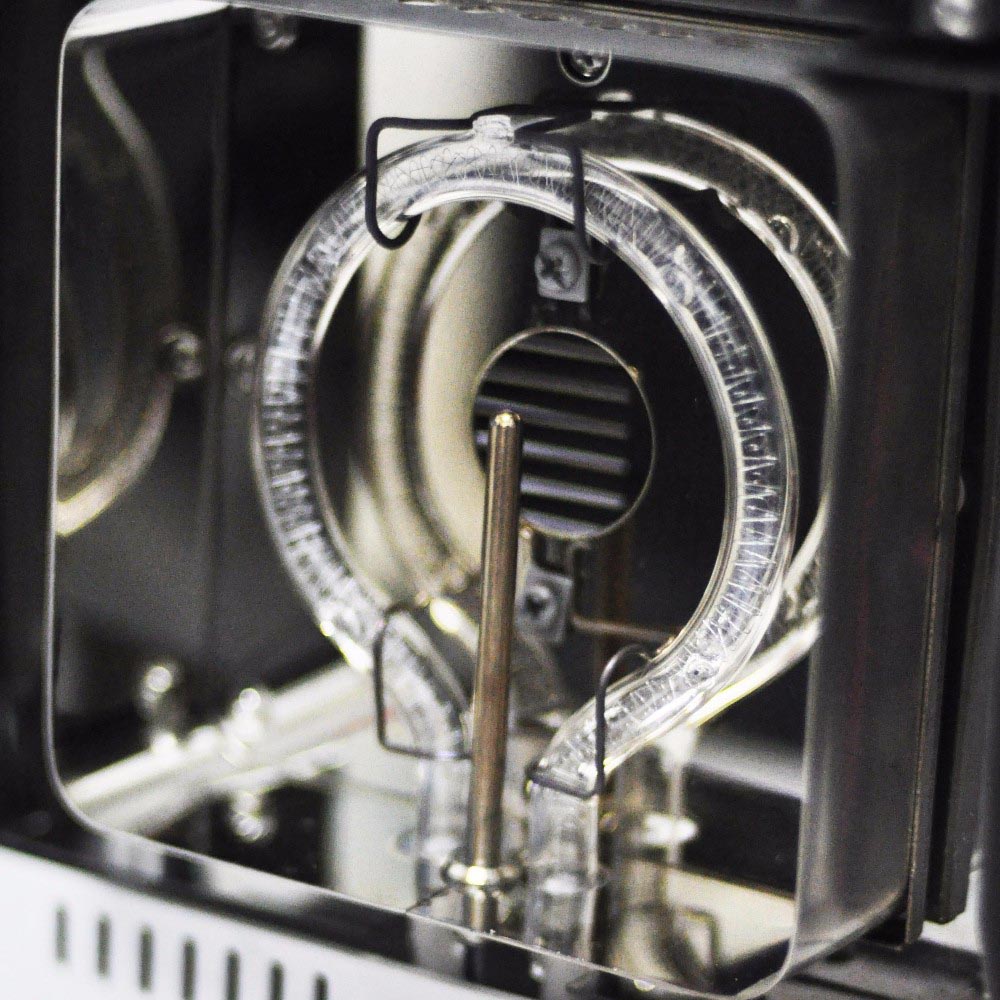

1.Halogen  light  heating

2.Stainless  steel  chamber

3.The percentage of moisture content

4.Temperature and time can be set

5.The percentage of dry residual

6.LCD  with backlight

7.Store historical  setting


Parameters

Model

ND-110MW

ND-105MW

ND-102MW

ND-100MW

ND-100MW-IR

Capacity

110g

Readability

0.01g

0.005g

0.002g

0.001g

0.001g

Operating Temp

5℃-35℃

Display

LCD(White back light with black font)

LCD HD Back Display

Calibration

External Calibration

Interface

RS232/RJ45/USB...

RS232(Standard) / USB(Optional)

Pan Size

Ø90mm

Packing Size

490x350x360mm

Gross Weight

7.5kg

Heating Source

Halogen Lamp-1

Infrared Lamp

Temp.Sensor

PT100

Temp.Range

40℃-199℃

40℃-160℃

Temp.Step

1℃

Moisture Range

0.00%-100.00%



Moisture Readability

0.2%

0.10%

0.04%

0.01%

0.01%

Dry Range

100.00%-0.00%

Dry Readability

0.2%

0.10%

0.04%

0.01%

0.01%

Temp Setting

40℃-199℃ By 1℃ Step

Time Setting

1-99min By 10s

1-99min By 1s

Number Of Storage

15

Heater

220V ±15% 50HZ/110V±15% 60HZ/400W



Balance

Input:220V 50HZ/110V 60HZ  Output:9V
