ND-110MW
NADE
220V 50HZ/110V 60HZ
1
1 year
China
Product Description
Introduction:
Widely used in industrial,agriculture,laboratory applications.Some typical applications are :
Tobacco,paper,food,tea,com,chemical,row materials, etc.
Features:

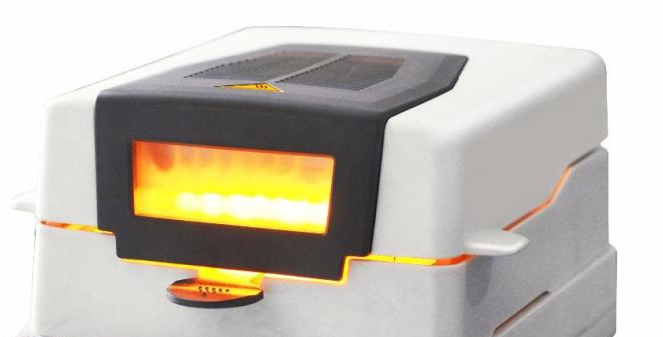

1.Halogen light heating
2.Stainless steel chamber
3.The percentage of moisture content
4.Temperature and time can be set
5.The percentage of dry residual
6.LCD with backlight
7.Store historical setting
Parameters
Model | ND-110MW | ND-105MW | ND-102MW | ND-100MW | ND-100MW-IR |
Capacity | 110g | ||||
Readability | 0.01g | 0.005g | 0.002g | 0.001g | 0.001g |
Operating Temp | 5℃-35℃ | ||||
Display | LCD(White back light with black font) | LCD HD Back Display | |||
Calibration | External Calibration | ||||
Interface | RS232/RJ45/USB... | RS232(Standard) / USB(Optional) | |||
Pan Size | Ø90mm | ||||
Packing Size | 490x350x360mm | ||||
Gross Weight | 7.5kg | ||||
Heating Source | Halogen Lamp-1 | Infrared Lamp | |||
Temp.Sensor | PT100 | ||||
Temp.Range | 40℃-199℃ | 40℃-160℃ | |||
Temp.Step | 1℃ | ||||
Moisture Range | 0.00%-100.00%
| ||||
Moisture Readability | 0.2% | 0.10% | 0.04% | 0.01% | 0.01% |
Dry Range | 100.00%-0.00% | ||||
Dry Readability | 0.2% | 0.10% | 0.04% | 0.01% | 0.01% |
Temp Setting | 40℃-199℃ By 1℃ Step | ||||
Time Setting | 1-99min By 10s | 1-99min By 1s | |||
Number Of Storage | 15 | ||||
Heater | 220V ±15% 50HZ/110V±15% 60HZ/400W | ||||
Balance | Input:220V 50HZ/110V 60HZ Output:9V | ||||
