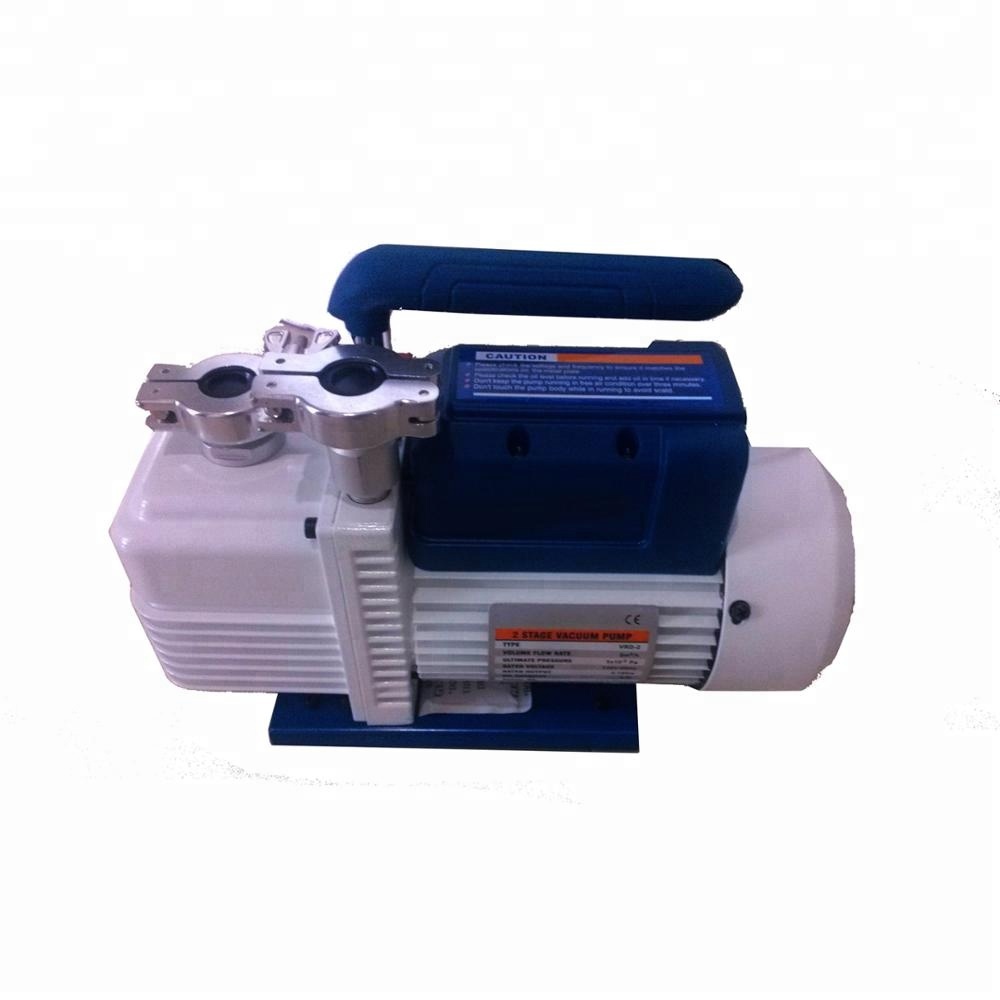

NADE two stage 2.4cbm per hour Small Rotary Vane Oil air Vacuum Pump

  • 1 year
  • NADE
  • VRD-2
  • Zhejiang, China
  • Other, laboratory, industry
  • 0.8Mpa, High Pressure
  • Multistage Pump
  • 16KF/25KF
  • 220V/110V, 220V/110V
  • Other
  • Air Pump
  • Gasoline
  • Vacuum Pump
  • 2 CBM/H
  • single-phase
  • 0.18kw
  • 0.17-0.22L

Product Description

We have different volume for VRD series vacuum pump, pls click for more details.

Introductions

VRD series vacuum pump are designed and manufactured to meet the requirements of various scientific and industrial applications such as analytic instruments, laboratories and product line for refrigeration, electronics, light, semiconductor, etc.

How is the performance of VRD?

1. Automatic anti-suck back valve, protect your system from oil and oil steam when power suddenly goes off.

2. Internal forced oil cycling system, fully lubricates the pump and make the lifetime longer and vacuum better.

3. Adjustable gas ballast for different needs of steam emission.

4. High reliable integrated cylinder structure, suits production lines better.

5. Different voltage types for different countries and regions.

Usages of VRD Series Vacuum Pumps:

  1. Semiconductor industry
  2. Scientific instruments
  3. Mechanical equipments
  4. Chemical industry
  5. Vacuum metallurgy
  6. Medical instrument
  7. Vacuum packaging

Specification:

for more models, pls check at our web.

Model VRD-2 VRD-4 VRD-8
Displacement speed m3/h(L/s) 50Hz 2.0(0.5) 4.0(1.1) 8.0(2.2)
60Hz 2.4(0.6) 4.8(1.3) 9.6(2.6
Ultimate partial pressure without gas ballast(Pa) 5×10-2 5×10-2 5×10-2
Ultimate total pressure without gas ballast(Pa) 5×10-1 5×10-1 5×10-1
Ultimate total pressure with gas ballast(Pa) 8×10-1 8×10-1 8×10-1
Power supply single-phase single-phase single-phase
Power supply(KW) 0.18 0.25 0.37
Intake and exhaust DN(mm) 16KF 16KF 25KF
Oil capacity(L) 0.17-0.22 0.26-0.35 0.45-0.55
Motor speed(rpm) 50Hz 1440 1440 1440
60Hz 1720 1720 1720
Ambient temperature(°C) 10~40 10~40 10~40
Noise leve(dB) ≤56 ≤56 ≤56
Type of Protection(IP) 44 44 44
Weight(kg) 8.5 10.4 16.2
Dimensions(mm) 318×124×234 337×138×244 395×145×257
