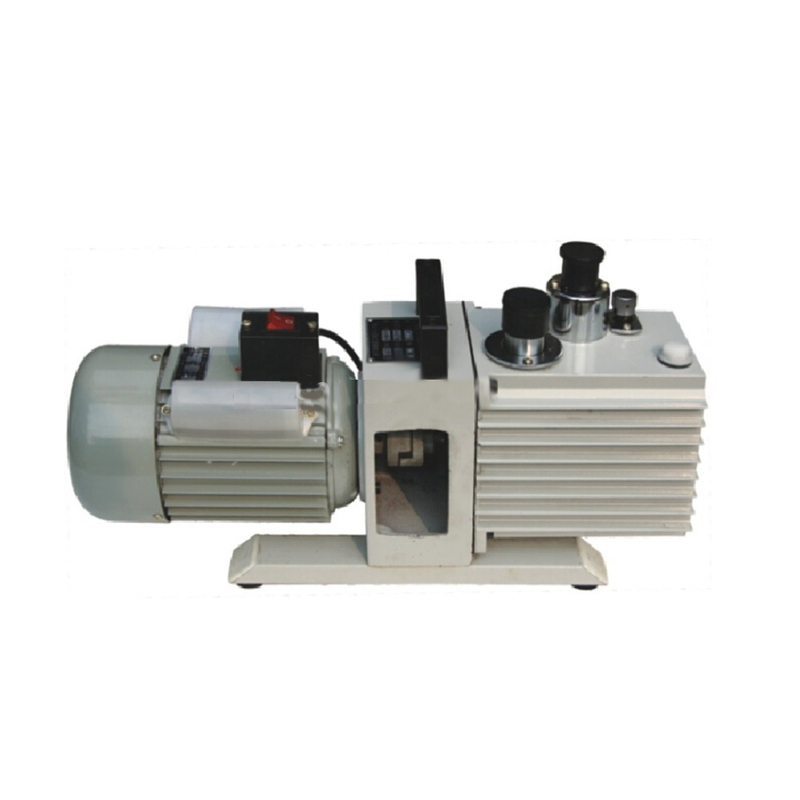

2XZ-4 NADE Oil Rotary Vane Vacuum Pump

Inquire

  • NADE

  • 2XZ-4

  • Zhejiang, China

  • Machining, Pharmaceutical industry, Water Distribution, Other

  • 0.06kPa, High Pressure

  • Multistage Pump

  • 25mm

  • 220V single/3-ph

  • Other

  • Air Pump

  • Electric

  • Vacuum Pump

  • 220V single/3-ph

  • 0.06Pa

  • 4 L/S

  • 1440 rpm

  • Other

Product Description

Introductions

  1. High speed straight league structure vane vacuum pumps.
  2. The device with gas valve, prevent oil pump mix water and extends pump oil use time.
  3. Small volume, light weight, low noise, start convenient.
  4. The return to oil, prevent oil leakage, protect the environment clean.
  5. The pump can be separately as a gas use, also can be used as booster pump, and the diffusion pumps, pump before the molecular level pump, maintain pump, titanium pump or use a pump.
  6. Used in vacuum components manufacturing, medical analysis instruments, especially of lithium bromide, air conditioning, ice whose refrigeration industry, etc.

Specification:

Model

Ultimate pressure(Pa)

Pumping speed(L/S)

Inlet diam (mm)

Motor power (kw)

Net weight (kg)

Rotary speed

2XZ-0.25

0.06

0.25

10

0.12

15

1440 rpm

2XZ-0.5

0.06

0.5

16

0.18

18

1440 rpm

2XZ-1

0.06

1

16

0.25

19

1440 rpm

2XZ-2

0.06

2

25

0.37

27

1440 rpm

2XZ-4

0.06

4

25

0.55

30

1440 rpm
