NADE TG16A high speed 16000r/min centrifuge for hospitals, laboratory, colleges and universities

Share to:

NADE TG16A high speed 16000r/min centrifuge for hospitals, laboratory, colleges and universities


Inquire

Classification: Laboratory Centrifuge
Brand Name: NADE
Model Number: TG16A
Place of Origin: China
Max Speed: 16000r/min
Max RCF: 17800xg
Max Capacity: 5mlx10
Speed Accuracy: ± 30r/min
Time Setting: 1min~99min
Noise: <65dB(A)
Power Supply: AC110/220V 50Hz/60Hz 5A
Dimension(LxWxH): 230mmx310mmx240mm
Packing size(LxWxH): 290mmx400mmx330mm
Net weight: 9kg

Product Description

Product Description

Introduction

The old model TG16A-WS model has now been updated to TG16A

Technical Performance
Microcomputer control, DC brushless motor, stable operation, low noise and high speed accuracy.
Touching panel, programmable operation. The operation data can be set according to demand and stored automatically .
LED or LCD display. user-friendly interface, simple and convenient operations. The real-time conversation of Speed and RCF is convenient for operation.
It has self-locking device, over-speed safety device, and automatic alarm device, etc.

Specification

Model	TG16A(TG16A-WS)
Max Speed	16000r/min
Max RCF	17800xg
Max Capacity	5mlx10
Speed Accuracy	± 30r/min
Time Setting	1min~99min
Noise	<65dB(A)
Power Supply	AC110/220V 50Hz/60Hz 5A
Dimension(LxWxH)	230mmx310mmx240mm
Packing size(LxWxH)	290mmx400mmx330mm
Net weight	9kg

Optional accessories

Available rotors:

Picture	Rotor description
	NO.1 Capacity: 1.5/2.2ml×12 Speed: 16000r/min Centrifugal force: 17800×g Optional Tube adapter:0.2ml,0.5ml

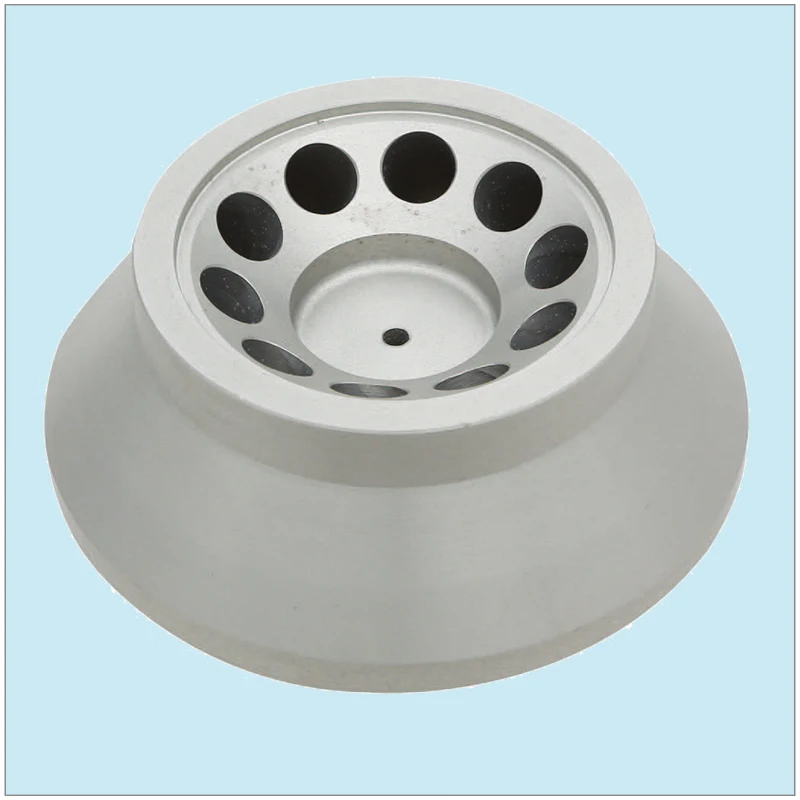

	NO.2 Capacity: 5ml×10 Speed: 13000r/min Centrifugal force: 11400×g Optional Tube adapter:0.5ml,1.5ml

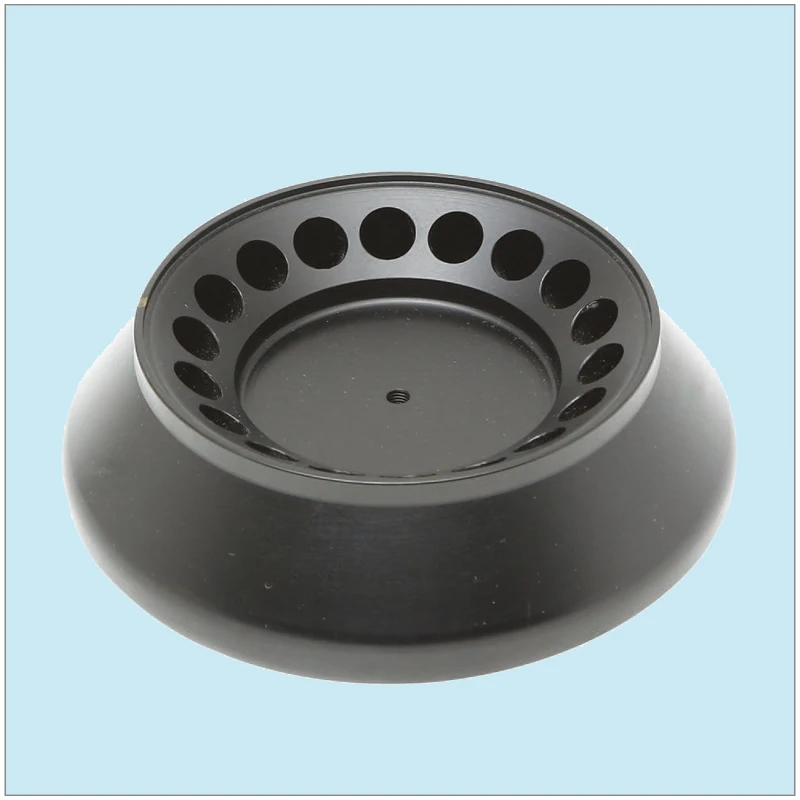

	NO.3 Capacity: 1.5/2.2ml×18 Speed: 13200r/min Centrifugal force: 16110×g Optional Tube adapter:0.2ml,0.5ml
