D3024 High Speed Micro-Centrifuge

Max. RCF:21380 x g, increment:10 x g
Speed Accuracy:±20rpm
Weight:12kg
Motor:Brushless DC motor
Availability:
Inquire

  • D3024

  • NADE

  • AC200V-400V, 50Hz/60Hz,5A, AC100V-120V,50Hz/60Hz, 8A 200W

  • 1

  • 1 year

  • China

Product Description

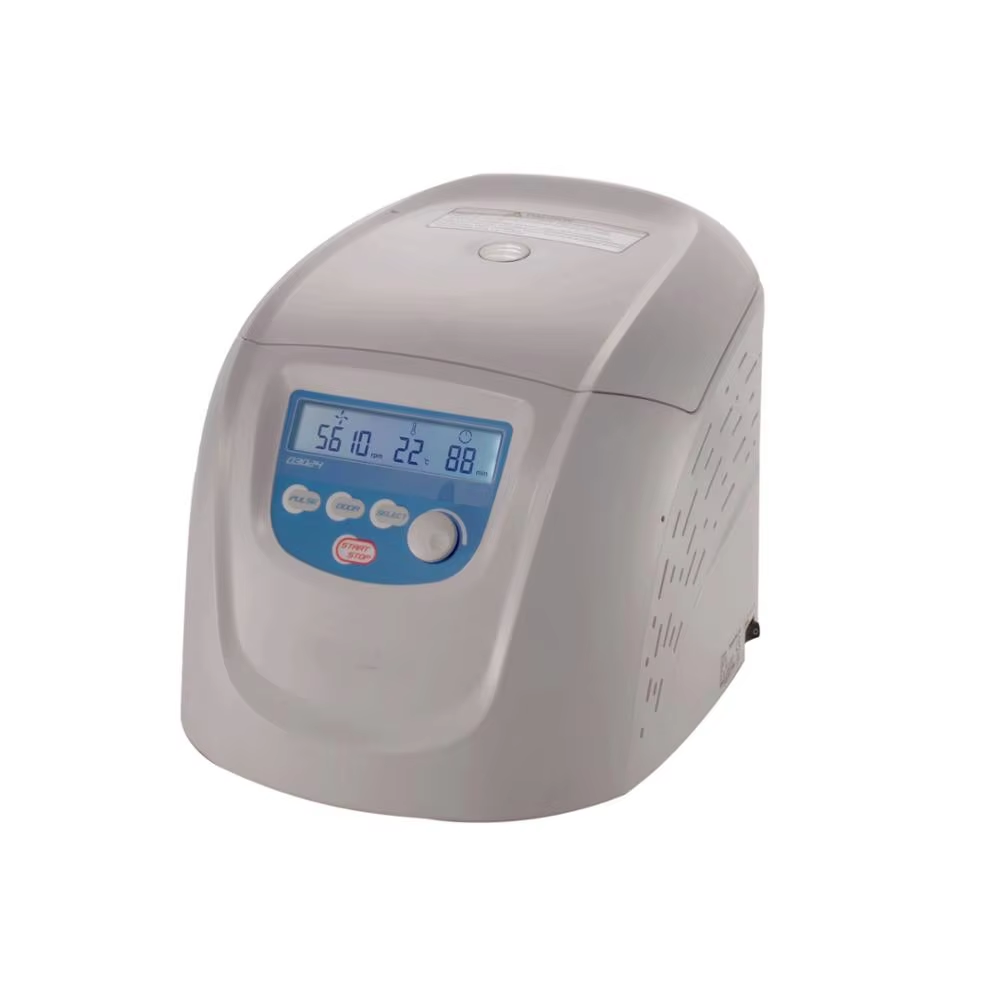

D3024

D3024
High Speed Micro Centrifuge
with AS24-2 aluminum alloy rotor kit


Applications：

Suitable for numerous biological, chemistry, clinical and research applications including molecular biology, chemistry labs, wide variety of microbiology applications, such as DNA, RNA or protein isolation and many more.

Features：

1.Double cooling air design ensures fast cooling of the rotor and low energy consumption
2.3-layer sealed rotors ensure safe centrifugation
3.Brushless motor drive, maintenance free
4.Safety features include door interlock; excessive speed and temperature detection; automatic self-diagnostics
5.Outstanding aluminum alloy rotors fully autoclavable at 121℃ temperature and high pressure disinfection
6.Five rotors are optional complete with 24places 1.5/2.0mL tubes,5.0mL, 0.2mL and 0.5mL tubes with adapters



Specification

Specifications

D3024

 Max. Speed

15000rpm(200-15000rpm),

increment:10rpm

Max. RCF

21380 x g, increment:10 x g

Speed Accuracy

±20rpm

 Rotor Capacity

1.5/2mLx24, 0.2/0.5mLx36, PCR-8 stripsx4, 5mLx12, 5mLx18

Run Time

30sec-99min/Continuous

Acceleration/Braking time [Sec]

25s↑25s↓

Motor

Brushless DC motor

Safety Devices

Dual door interlock, Over-speed detection, Automatic internal diagnosis

Power Requirements

Single-phase, AC200V-400V, 50Hz/60Hz,5A, AC100V-120V,50Hz/60Hz, 8A 200W

Noise Level

≦68dB

Dimension[W×D×H]

280x364x266mm

Weight

12kg

Weight

Speed/RCF switch; Short-time run function; sound-alert function


Accessories

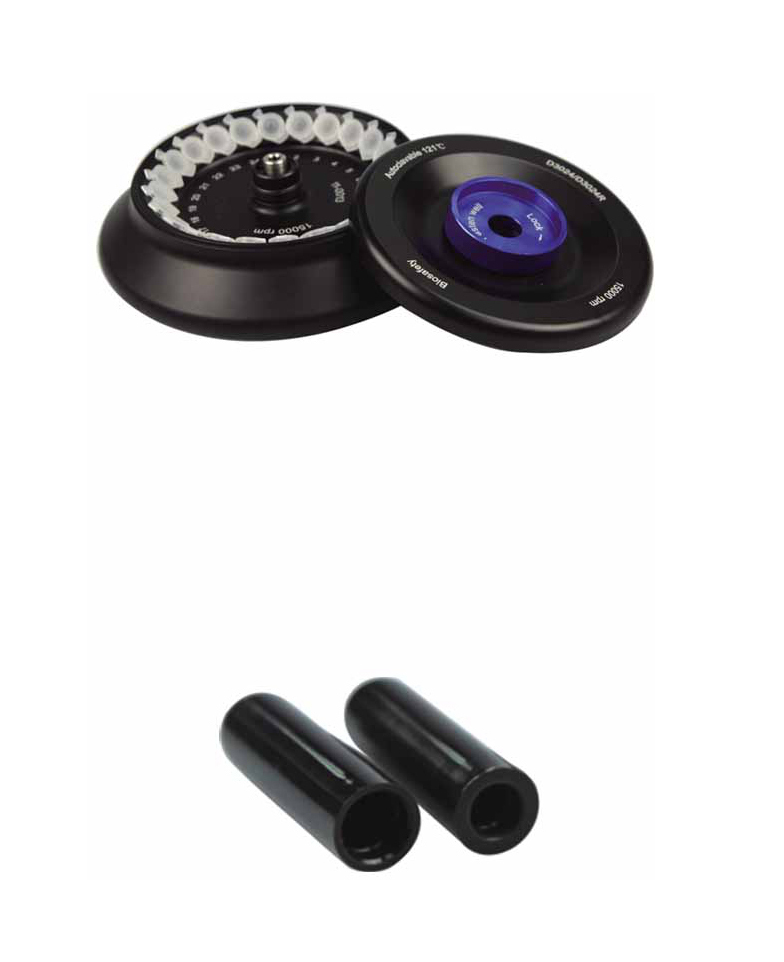

Rotors: Aluminum alloy rotor kit with lid, fixing clips and O'ring

Model

Description

Available adapters


A18-5

Max. Speed (rpm) : 15000
Max. RCF (×g): 21380
Max. capacity: 5ml×18
Bio safe: Yes
Use with: D3024; D3024R

NO

NADE D3024 200~15000rpm laboratory high speed micro clinical centrifuge machine

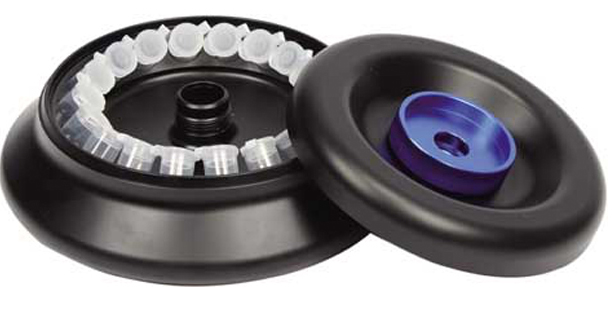

AS24-2

Max. Speed (rpm) : 15000
Max. RCF (×g): 21380
Max. capacity: 2ml×24
Bio sa

fe: Yes
Use with: D3024; D3024R

A02P2

A05P2

NADE D3024 200~15000rpm laboratory high speed micro clinical centrifuge machine

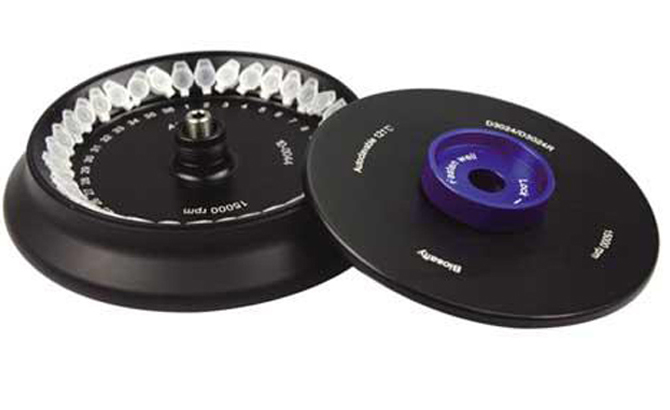

AS36-05

Max. Speed (rpm) : 15000
Max. RCF (×g): 21380
Max. capacity: 0.5ml×36
Bio safe: Yes
Use with: D3024; D3024R

A02P05

NADE D3024 200~15000rpm laboratory high speed micro clinical centrifuge machine

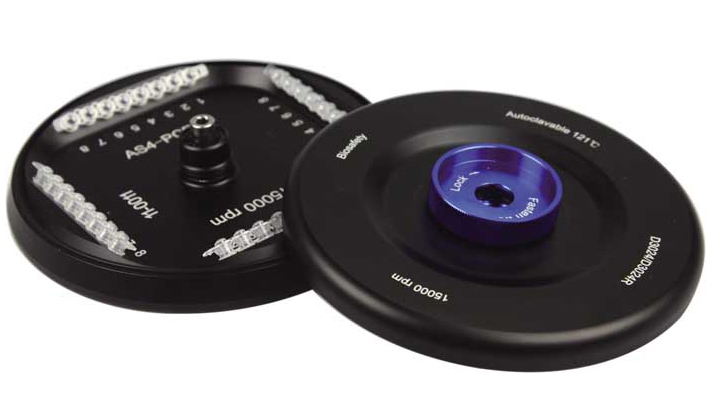

AS4-PCR8

Max. Speed (rpm) : 15000
Max. RCF (×g): 21380
Max. capacity: 4×PCR8
Bio safe: Yes
Use with: D3024; D3024R
Available adapters: N/A

NO

NADE D3024 200~15000rpm laboratory high speed micro clinical centrifuge machine
Adapters:

A02P2

0.2ml rotor adapter, use with A12-2 & AS24-2 rotors,24pcs/pk

A05P2

0.5ml rotor adapter, use with A12-2 & AS24-2 rotors,24pcs/pk

A02P05

0.2ml rotor adapter, use with AS36-05 rotor,36pcs/pk
