NADE TA-3.0 Laboratory Portable Online Total Organic Carbon Analyzer TOC Tester in online monitoring pharmaceutical water

  • 1 year
  • CE
  • China
  • TA-3.0
  • 100-260VAC 50HZ
  • 0.055us/cm-8.000us/cm
  • 0.001mg/L~1mg/L(1~1000ppb)
  • 1-99℃
  • Repeatability ≤ 3%
  • 0.001mg/L
  • 5mins
  • Online
  • 8.5KG
  • 300*210*250

Product Description

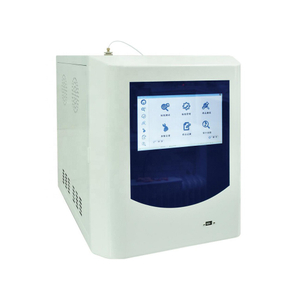

TA-3.0 Laboratory Portable Online Total Organic Carbon Analyzer TOC Tester

Introduction

TA - 3.0 is to make a tiny adjustment on the basis of TA - 2.0, where the instrument shell adopts 304 stainless steel design,greatly improving the equipment adaptability in different environments. It can meet the choice of two different schemes for the single point of real-time monitoring or multiple point time-division monitoring, not only meeting the requirements of national laws and regulations, but also saving investment. It is widely used in online monitoring pharmaceutical water (purified water, injection water), electronic industry, food industry, etc.

NADE TA-3.0 Laboratory Portable Online Total Organic Carbon Analyzer TOC Tester in online monitoring pharmaceutical water NADE TA-3.0 Laboratory Portable Online Total Organic Carbon Analyzer TOC Tester in online monitoring pharmaceutical water

Operation Principle

Oxidation organism by UV lamp and convert organic stuff into carbon dioxide, which detection adopted by direct conductivity method. The total organic carbon is the difference of the total carbon (TC)concentration in samples tested after oxidation and not oxidation of the sample total inorganic carbon(TIC), namely: TOC = TC- (TIC).

NADE TA-3.0 Laboratory Portable Online Total Organic Carbon Analyzer TOC Tester in online monitoring pharmaceutical water

1. Delay line

2. Oxidation unit

3. Inorganic carbon conductivity electrode

4. Total carbon conductivity electrode

5. Ceramic pump

The schematic diagram of direct conductivity

Features

1. It adopts the modular design, which can carry out data upload and communication with different water systems and control systems, with a real-time display.

2. It provides customers with two options, for both the single point real time and multiple point time-division online monitoring.

3. It has the waterproof design, which can work in high humidity and temperature environment.

Specification

Model

TA-3.0

Power

120W

Power Supply

100-260VAC 50HZ

Conductivity Detection Range

0.055µs/cm-8.000µs/cm

Measure Range

0.001mg/L~1mg/L(1~1000ppb)

Accuracy

±3%

RSD

Repeatability ≤ 3%

Resolution

0.001mg/L

Response Time

5mins

Measuring Limit

0.001 mg/L

Sample Temperature

1-95

Ambient temperature

5~65

Applied Range

Online

Audit trail, Records

≥ 3years storage

Authority Management

User name and password login

Print Function

External Printer

Data Copy

USB disk to export the data

Display Screen

Color Touch Screen

Weight

8.5KG

Dimension(mm)

300*210*250

More Related Products

NADE TA-3.0 Laboratory Portable Online Total Organic Carbon Analyzer TOC Tester in online monitoring pharmaceutical water NADE TA-3.0 Laboratory Portable Online Total Organic Carbon Analyzer TOC Tester in online monitoring pharmaceutical water NADE TA-3.0 Laboratory Portable Online Total Organic Carbon Analyzer TOC Tester in online monitoring pharmaceutical water

TA-1.0(Offline) TA-2.0(Online & Offline) TA-200(Offline; Large-range)

Packaging & Shipping

Our Packaging Details:

NADE TA-3.0 Laboratory Portable Online Total Organic Carbon Analyzer TOC Tester in online monitoring pharmaceutical water

Our Shipping

NADE TA-3.0 Laboratory Portable Online Total Organic Carbon Analyzer TOC Tester in online monitoring pharmaceutical water

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

NADE TA-3.0 Laboratory Portable Online Total Organic Carbon Analyzer TOC Tester in online monitoring pharmaceutical water

Company Information

NADE TA-3.0 Laboratory Portable Online Total Organic Carbon Analyzer TOC Tester in online monitoring pharmaceutical water

NADE TA-3.0 Laboratory Portable Online Total Organic Carbon Analyzer TOC Tester in online monitoring pharmaceutical water

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
