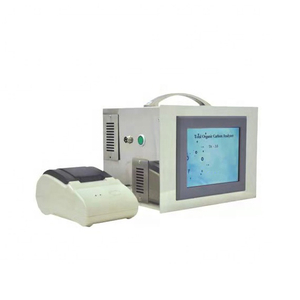

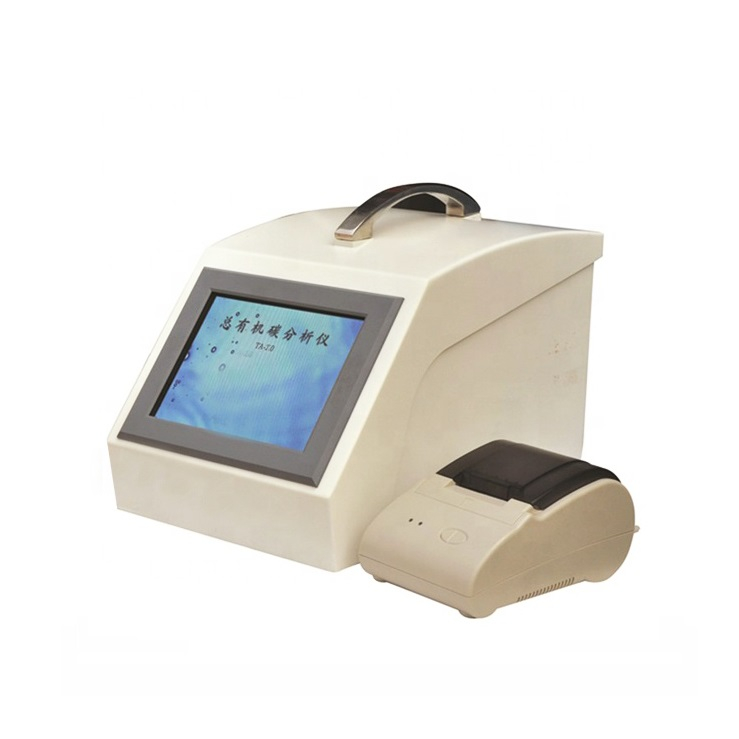

NADE TA-1.0 Laboratory Offline Total Organic Carbon Analyzer TOC Tester used for pharmaceutical water, cleaning validation

  • 1 year

  • CE

  • China

  • TA-1.0

  • 100-260VAC 50HZ

  • 0.055us/cm-8.000us/cm

  • 0.001mg/L~1mg/L(1~1000ppb)

  • 1-99℃

  • Repeatability ≤ 3%

  • 0.001mg/L

  • 5mins

  • Offline in the Laboratory, Cleaning Validation

  • 8.5KG

  • 400*240*270

Product Description

TA-1.0 Laboratory Offline Total Organic Carbon Analyzer TOC tester

Introduction

TA-1.0 Total Organic Carbon (TOC) Analyzer is the high-precision offline total organic carbon analysis instrument. The product uses the electrical conductivity difference detection technology, adopting the principle of ultraviolet catalytic oxidation, with high accuracy and short response time. The instrument completely conforms to the requirements of the national pharmacopoeia, and it can meet the offline testing requirements for the deionized water such as pharmaceutical water (injection water and purified water) and ultrapure water, which is widely used in on line monitoring and laboratory testing of pharmaceutical water (purified water, injection water), and cleaning validation, electronic industry, food industry, etc.

NADE TA-1.0 Laboratory Offline Total Organic Carbon Analyzer TOC Tester used for pharmaceutical water, cleaning validation

NADE TA-1.0 Laboratory Offline Total Organic Carbon Analyzer TOC Tester used for pharmaceutical water, cleaning validation

Operation Principle

Oxidation organism by UV lamp and convert organic stuff into carbon dioxide, which detection adopted by direct conductivity method. The total organic carbon is the difference of the total carbon (TC) concentration in samples tested after oxidation and not oxidation of the sample total inorganic carbon(TIC), namely: TOC = TC- (TIC).

NADE TA-1.0 Laboratory Offline Total Organic Carbon Analyzer TOC Tester used for pharmaceutical water, cleaning validation

1. Delay line

2. Oxidation unit

3. Inorganic carbon conductivity electrode

4. Inorganic carbon conductivity electrode

5. Peristaltic pump

The schematic diagram of direct conductivity

Features

1. There is no need of nitrogen, oxygen, acid reagent, oxidant, so the operation is simple and the cost is low.

2. Designed for testing the total organic carbon content of pharmaceutical water (TOC content below 1000ppb), specifically for testing in offline test mode.

3. The intelligent level is high, as it is equipped with automatic sampler, and the system adaptability validation can be done automatically.

4. Equipped with a large amount of storage space, able to store a large amount of test data.

5. It has the limit alarm design, and when the test sample exceeds the prescribed limit, the instrument makes automatic alarm.

6. The instrument uses scientific user hierarchy management and electronic signature technology.

7. Adopt high-sensitivity CPU to increase the sensitivity of data testing and the repeatability of test results.

8. It is in conformity with the test scheme as specified in the new edition of state pharmacopoeia.

Specification

Model

TA-1.0

Power

120W

Power Supply

100-260VAC 50HZ

Conductivity Detection Range

0.055µs/cm-8.000µs/cm

Measure Range

0.001mg/L~1mg/L(1~1000ppb)

Accuracy

±3%

RSD

Repeatability ≤ 3%

Resolution

0.001mg/L

Response Time

5mins

Measuring Limit

0.001 mg/L

Sample Temperature

1-99

Ambient temperature

5~65

Applied Range

Offline in the Laboratory, Cleaning Validation

Audit trail, Records

≥ 3years storage

Authority Management

User name and password login

Print Function

External Printer

Data Copy

USB disk to export the data

Display Screen

Color Touch Screen

Weight

8.5KG

Dimension(mm)

400*240*270

Audit trail

customization

Comply with new pharmacopoeia regulations, with data integrity and audit trail function!

More Related Products

NADE TA-1.0 Laboratory Offline Total Organic Carbon Analyzer TOC Tester used for pharmaceutical water, cleaning validation NADE TA-1.0 Laboratory Offline Total Organic Carbon Analyzer TOC Tester used for pharmaceutical water, cleaning validation NADE TA-1.0 Laboratory Offline Total Organic Carbon Analyzer TOC Tester used for pharmaceutical water, cleaning validation

TA-2.0 (Online & Offline) TA-3.0(Online) TA-200(Offline; large-range)

Packaging & Shipping

Our Packaging Details:

NADE TA-1.0 Laboratory Offline Total Organic Carbon Analyzer TOC Tester used for pharmaceutical water, cleaning validation

Our Shipping

NADE TA-1.0 Laboratory Offline Total Organic Carbon Analyzer TOC Tester used for pharmaceutical water, cleaning validation

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

NADE TA-1.0 Laboratory Offline Total Organic Carbon Analyzer TOC Tester used for pharmaceutical water, cleaning validation

Company Information

NADE TA-1.0 Laboratory Offline Total Organic Carbon Analyzer TOC Tester used for pharmaceutical water, cleaning validation

NADE TA-1.0 Laboratory Offline Total Organic Carbon Analyzer TOC Tester used for pharmaceutical water, cleaning validation

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
