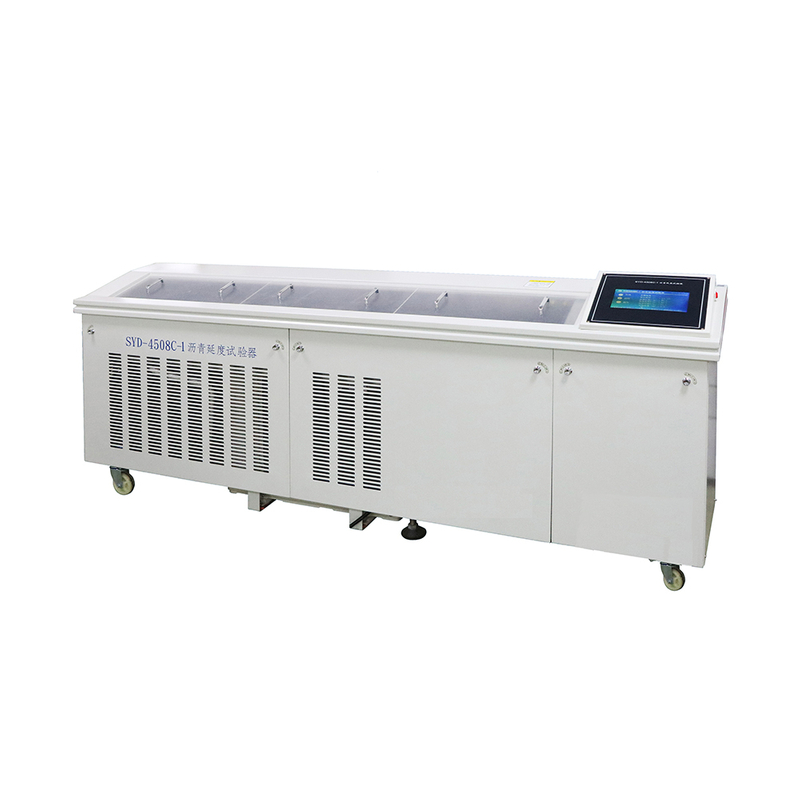

NADE SYD-4508C-1 Laboratory Automatic Asphalt/Bitumen Ductility Testing Machine (Measurement distance 1.5m)

  • China
  • NADE
  • Three phase 380V±10%,50HZ
  • ≤1500mm
  • 1mm
  • 0~50℃
  • ±0.1℃
  • 50mm/min±2.5mm/min or 10mm/min±0.5mm/min
  • (-10~+35)℃
  • ≤ 85%
  • 4100 W
  • 2320mm*620mm*1030mm

Product Description

Product Description

This instrument is designed and made as per national standard GB/T 4508-2010 Standard Test Method for Ductility of Bitumen and T0605-2011 Asphalt Ductility Test in JTG E20-2011 in the Industrial Standard of People’s Republic of China,Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D113 Standard Test Method for Ductility of Bituminous Materials. It is suitable to determine the distance to which it will elongate before breaking when two ends of a briquette specimen of the material are pulled apart at a specified speed and at a specified temperature,Unit:cm.

Feature

1. The the operation controller with independent structure design,large (800×480 dot matrix) color touch screen,two types:wire and wireless operation.

2. English version display screen with many kinds of flexible keys,inner real-time clock,mass memory.It can display and deal with many different detecting data such as temperature,pulse,optoelectronic input.The parameter setting,working status and data are all showed in English,more convenient to read.

3. It adopts the split design 50L water tank to independently cool by the water circulation,heat and control the constant temperature.

4. It use the double water tanks design to make sure the constant temperature accuracy is at ±0.1during the test time(30 mins) and there are no fluctuation in the water tank.It has the automatic reset after the test,and the system work again automatically.

5. With the advanced temperature control technology,short cooling time,good temperature control effect,uniform water bath temperature,At the standard 25℃ room temperature condition,the cooling period time is around 70mins from 25decreased to 5.

6. The stretch system adopts the external lead screw and double track location.The drive motor adopts the variable frequency motor,big torque,wide selection range,reliable and stable work.

7. With two work modes:automatic operation and manual,it makes the instrument operation and daily mantainance much convenient and easy.

Specification

Model

SYD-4508C-1

Water bath temperature control range

0~50℃

Water bath temperature control accuracy

±0.1℃

Maximun measurement distance

≤1500mm

Measurement accuracy

1mm

Tensile speed

50mm/min±2.5mm/min or 10mm/min±0.5mm/min

Tensile motor power

200W

Heating power

3kW

Refrigeration power

2700 kilocalorie

Power supply

Three phase 380V±10%,50HZ

Ambient temperature

(-10~+35)

Relative humidity

≤85%

Maximum power consumption

4100W

Overall dimension

2320mm×620mm×1030mm

Notes:

1. The reagent and equipments for installing the instrument are supplied by end-users themselves.

2. The thermometer needs to be purchased by the end user.

3. The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.

4. PLS read the operation manual and industry standard before using the instrument.

NADE SYD-4508C-1 Laboratory Automatic Asphalt/Bitumen Ductility Testing Machine (Measurement distance 1.5m)

Other models:

NADE SYD-4508C-1 Laboratory Automatic Asphalt/Bitumen Ductility Testing Machine (Measurement distance 1.5m) NADE SYD-4508C-1 Laboratory Automatic Asphalt/Bitumen Ductility Testing Machine (Measurement distance 1.5m)

SYD-4508C SYD-4508G-1

Packaging & Shipping

NADE SYD-4508C-1 Laboratory Automatic Asphalt/Bitumen Ductility Testing Machine (Measurement distance 1.5m) NADE SYD-4508C-1 Laboratory Automatic Asphalt/Bitumen Ductility Testing Machine (Measurement distance 1.5m)

Company Information

NADE SYD-4508C-1 Laboratory Automatic Asphalt/Bitumen Ductility Testing Machine (Measurement distance 1.5m)

NADE SYD-4508C-1 Laboratory Automatic Asphalt/Bitumen Ductility Testing Machine (Measurement distance 1.5m)

Our Services

NADE SYD-4508C-1 Laboratory Automatic Asphalt/Bitumen Ductility Testing Machine (Measurement distance 1.5m)

FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
