NADE SYD-4508C Laboratory Automatic Asphalt/Bitumen Ductility Testing Machine (Measurement distance 1.5m)

  • China
  • NADE
  • AC 220V (-5%~+10%), 50 Hz
  • 1.5m(±10mm)
  • Electric heater
  • 3000 W
  • (5~50)℃,adjustable. Resolution is 0.01℃
  • ±0.05℃
  • (-10~+35)℃
  • ≤ 85%
  • 4100 W
  • 2365mm*520mm*1000mm

Product Description

Product Description

This instrument is designed and made as per national standard GB/T 4508-2010 Standard Test Method for Ductility of Bitumen and T0602-2011 Asphalt Ductility Test in JTG E20-2011 in the Industrial Standard of People’s Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D113 Standard Test Method for Ductility of Bituminous Materials. It is suitable to determine the distance to which it will elongate before breaking when two ends of a briquette specimen of the material are pulled apart at a specified speed and at a specified temperature.

Feature

1. It adopts humanized design philosophy. There is no leading screw, lead rail or other components in the test trough. The sample can be easily installed in and the maximum measurement distance can reach 1.5m.

2. It adopts high-accuracy digital temperature controller.The resolution is 0.01℃ and accuracy is 0.1.

3. It adopts innovative transmission design. The stretching is stable and synchronous. There is no tremble and the speed is uniform.

4. Three specimens. Suitable to the test standard for asphalt ductility.

5. The specimen can return and positioning automatically after the determination.

6. It adopts membrane panel and LCD temperature controller. Water-proof, durable and easy to clean.

Specification

Model

SYD-4508C

Power supply

AC220V(-5%~+10%),50Hz

Measurement distance

1.5m(±10mm)

Heating mode

Electric heater

Heating power

3000W

Liquid circulation

By magnet circulation pump

Temperature control range

(5~50)℃,adjustable. Resolution is 0.01

Temperature control accuracy

±0.05

Tensile speed

10mm/min and 50mm/min, two grades

Measurement accuracy

±1 mm

Ductility display

Digital display after data processed by a single chip machine

Refrigeration

Compressor 1.25P, input power is 950W

Ambient temperature

(-10~+35)

Relative humidity

≤85%

Maximum power consumption

4100W

Overall dimension

2365mm*520mm*1000mm

Notes:

1. The reagent and equipments for installing the instrument are supplied by end-users themselves.

2. The Rod type thermometer needs to be purchased by the end user. Parameters: 0~50℃,scale division 0.1 .

3. The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.

4.PLS read the operation manual and industry standard before using the instrument.

NADE SYD-4508C Laboratory Automatic Asphalt/Bitumen Ductility Testing Machine (Measurement distance 1.5m)

Other models:

NADE SYD-4508C Laboratory Automatic Asphalt/Bitumen Ductility Testing Machine (Measurement distance 1.5m) NADE SYD-4508C Laboratory Automatic Asphalt/Bitumen Ductility Testing Machine (Measurement distance 1.5m)

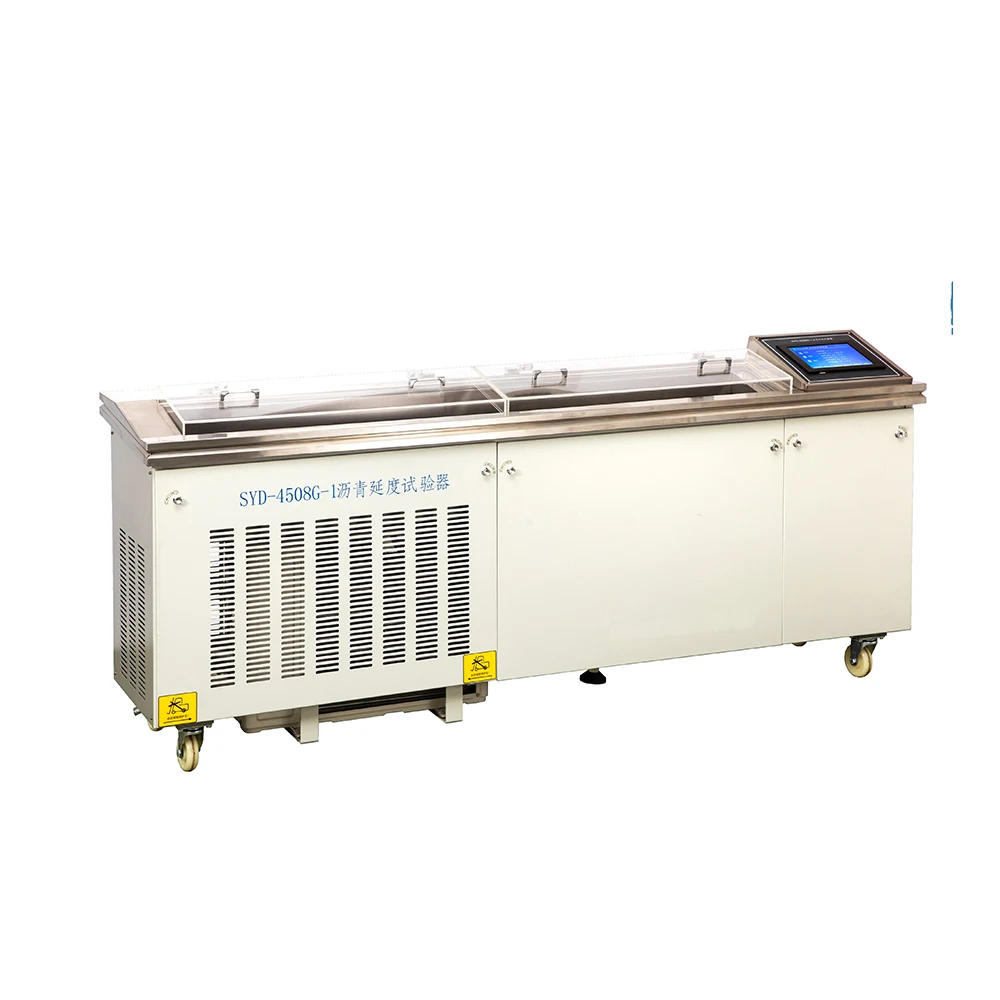

SYD-4508C-1 SYD-4508G-1
