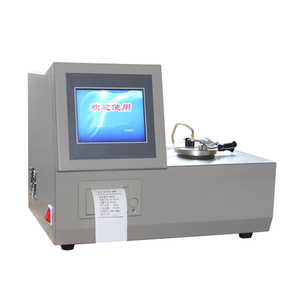

NADE SYD-3536A Cleveland Open Cup Flash Point Tester & Fire Point Tester for Petroleum Products ASTM D92
This instrument is designed and made as per GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland open cup method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.
1. This instrument adopts LCD screen to display and full English man-machine interface. It can preset expected flash point temperature, sample mark number, barometric pressure and other parameters.It has menu prompt and input guide.
2. It adopts simulation tracking to display the function curve of temperature rising and test time. It has the functions of English mis-operation prompt,test date,test time and other parameters.
3. Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value.
4. Differential coefficient detection.Automatically correct the system deviation.
5. Automatically open the lid,detect the flash point and print test data.The test arm automatically rise up and lower down.
6. Reasonable design, safe and convenient to operate.
1. Power supply:AC220(-10%~+5%)V, 50Hz
2. Flash point determination:Range:Ambient to 400℃
3. Heating rate:Correspond with GB/T3536 and ASTM D92
4. Ignition mode:Electric ignition.
Gas flame diameter is 3.2mm~4.8mm
5. Ambient temperature:(10~40)℃
6. Relative humidity:≤80%
7. Maximum power consumption:400W
