NADE Lab liquid transfer equipment pepeater pipettes

Specification:

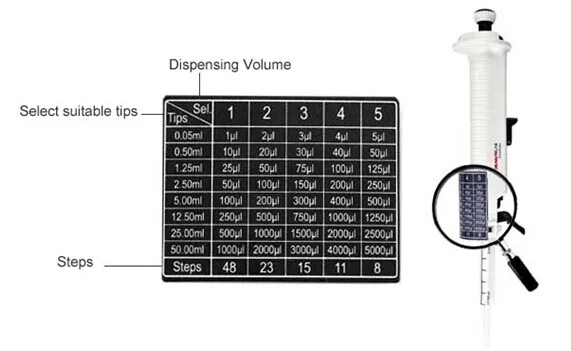

Dial setting	1	2	3		4		5
Number of steps	48	23	15		11		8
Syringe volume (ml)	Sample volume (µl)								A %	P %
0.05	1	2		3		4		5	± 2.5	≤ 5.0
0.50	10	20		30		40		50	± 0.8	≤ 0.7
1.25	25	50		75		100		125	± 0.8	≤ 0.5
2.50	50	100		150		200		250	± 0.8	≤ 0.4
5.00	100	200		300		400		500	± 0.4	≤ 0.3
12.50	250	500		750		1000		1250	± 0.3	≤ 0.3
25.00	500	1000		1500		2000		2500	± 0.2	≤ 0.3
50.00	1000	2000		3000		4000		5000	± 0.2	≤ 0.2

Note: The first and last dispensing liquid should be discarded or back into container vessel.

Features:

1.Lightweight and ergonomic

2.One-hand operation

3.Factory calibrated

4.Volume range of 1μl to 5ml can be dispensed

5.Maintenance free

6.Equipped with durable tip insertion lever

7.Works with seven sizes of disposable, polypropylene syringes from 0.5ml to 50ml

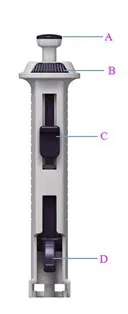

A:Optimized for smooth dispensing of even the smallest volumes

B:Five easy-to-select settings control dispensing volume

C:By pushing the slide upwards, the syringe is filled up

D:The stop lever secures the syringe inserted

Operate direction:

1. Select the Dispensing Volume

2. Find the required dispensing volume

3. Use the adjusting wheel to set the required volume

4. Select and inserting suitable tips

5. Confirm the maximum dispensing steps
