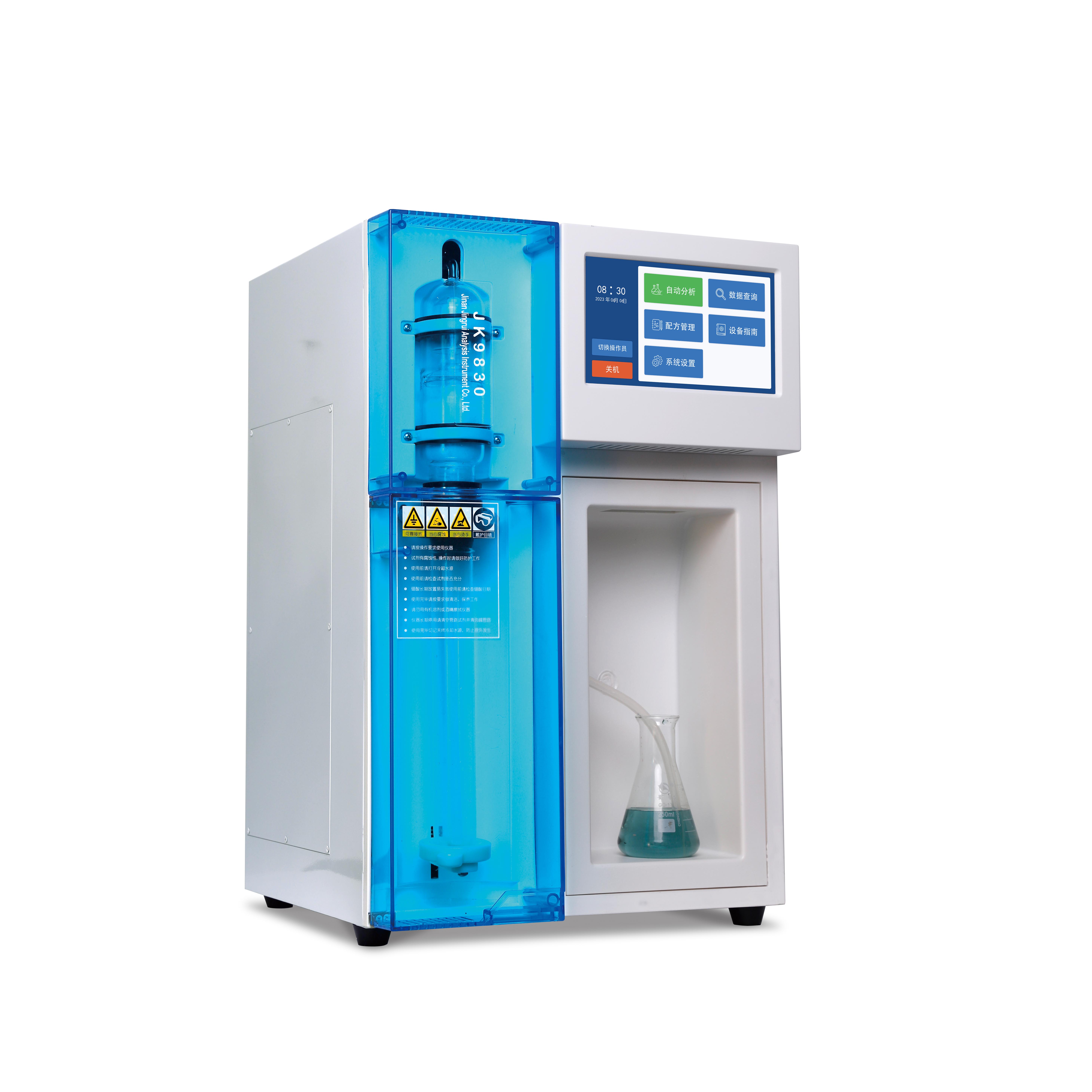

NADE JK9830A Automatic Kjeldahl Analyzer

The Kjeldahl method is a classic technique for determining nitrogen.

It is widely used for the measurement of nitrogen in soil, food, livestock, agricultural products, feed, and other nitrogen-containing compounds. The process for sample analysis using this method involves three main steps: sample digestion, distillation and separation, and titration analysis.

Our company is one of the creators of the national standard GB/T 33862-2017 for "Fully (Semi) Automated Kjeldahl Nitrogen Analyzer." Therefore, the Kjeldahl analyzer series products we develop and manufacture comply with both the GB standard and relevant

international standards.

Analysis range: 0.1–240 mg N

Precision (RSD): ≤0.5%

Recovery rate: 99–101%

Distillation time: Adjustable from 10 to 9990 seconds

Sample analysis time: 4–8 minutes (with cooling water temperature at 18°C)

Titrant concentration range: 0.01–5 mol/L

Touchscreen: 10-inch color LCD touchscreen

Data storage capacity: Up to 1 million data sets

Printer: 5.7CM thermal printer with automatic paper cutting

Digestion tube waste discharge mode: Manual/Automatic discharge

Steam flow adjustment: 1%–100%

Safe alkali addition mode: 0–99 seconds

Automatic shutdown time: 60 minutes

Operating voltage: AC220V/50Hz

Heating power: 2000W

Main unit dimensions: Length: 500mm, Width: 460mm, Height: 710mm
