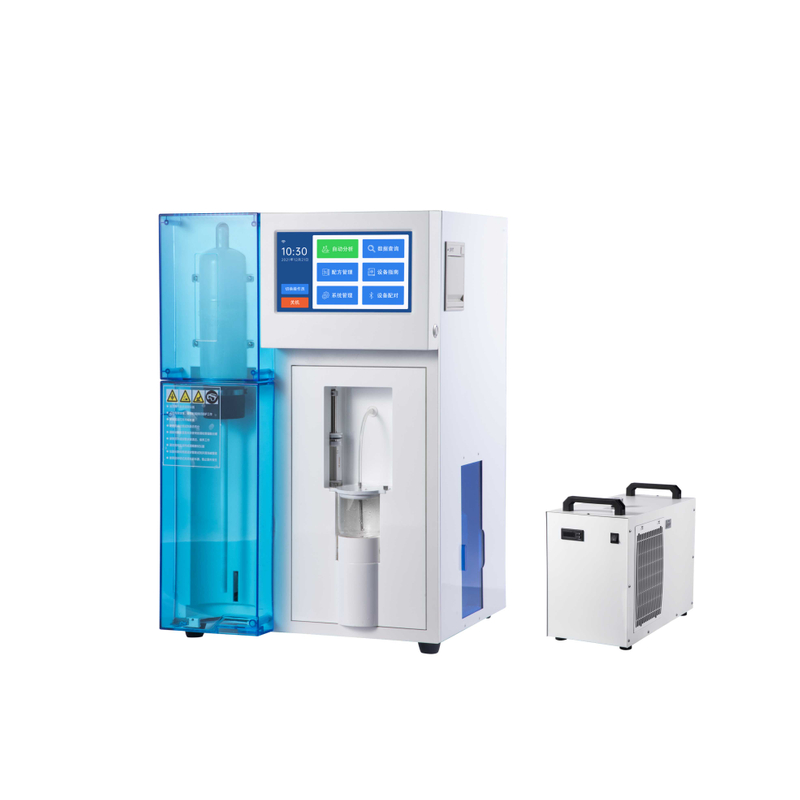

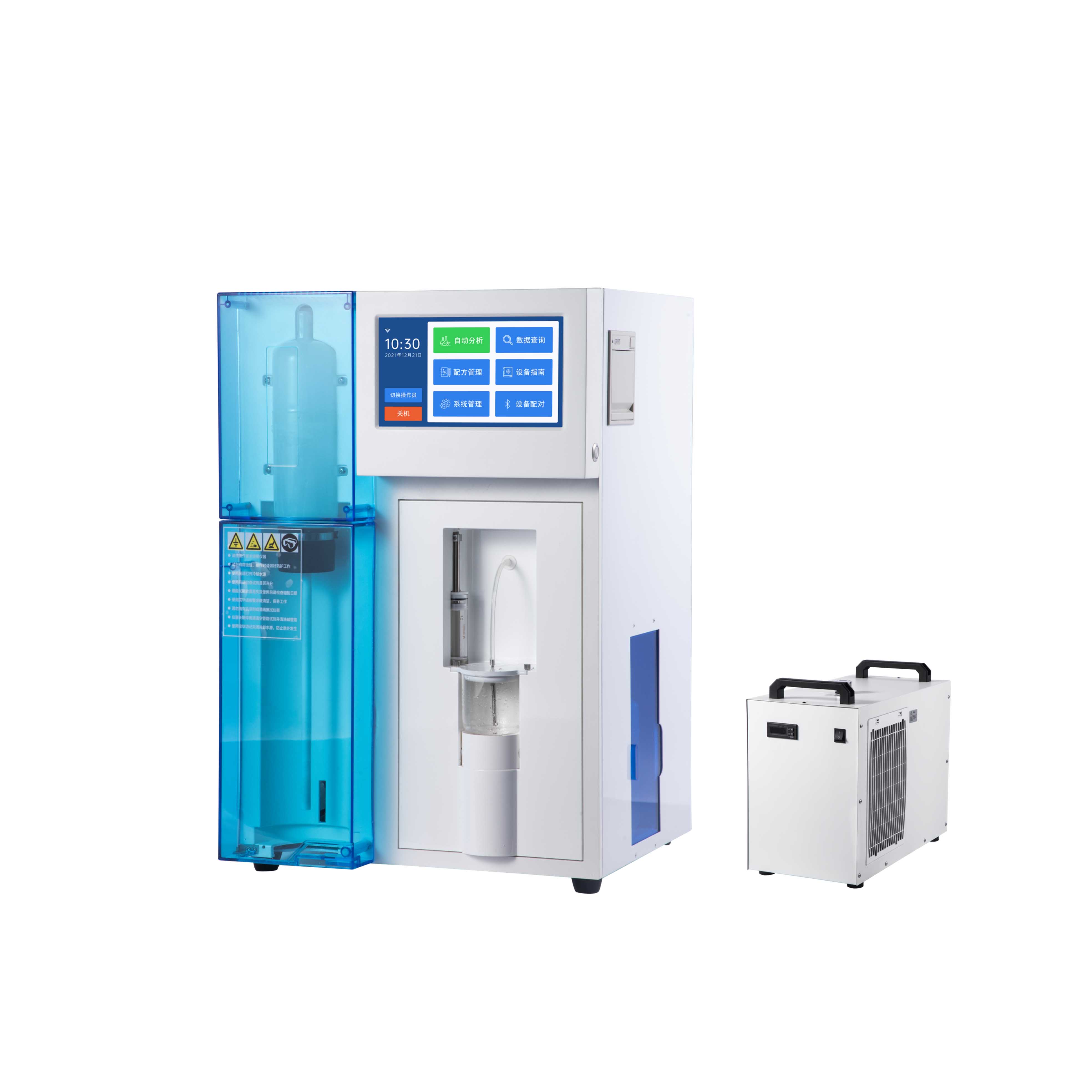

NADE JK9870A Fully Automatic Kjeldahl Analyzer

The Kjeldahl method is a classic technique for determining nitrogen.

It is widely used for the measurement of nitrogen in soil, food, livestock, agricultural products, feed, and other nitrogen-containing compounds. The process for sample analysis using this method involves three main steps: sample digestion, distillation and separation, and titration analysis.

Our company is one of the creators of the national standard GB/T 33862-2017 for "Fully (Semi) Automated Kjeldahl Nitrogen Analyzer." Therefore, the Kjeldahl analyzer series products we develop and manufacture comply with both the GB standard and relevant international standards.

Analysis range: 0.1—240 mg N

Precision (RSD): ≤0.5%

Recovery rate: 99-101%

Minimum titration volume: 0.2 μL/step

Titration speed: 0.05—1.0 ml/s, adjustable

Distillation time: 10—9990 seconds, adjustable

Sample analysis time: 4-8 minutes (cooling water at 18°C)

Titrant concentration range: 0.01—5 mol/L

Titrant concentration input method: Manual input/instrument internal standard

Titration mode: Standard/Simultaneous distillation and titration

Titration cup capacity: 300 ml

Touch screen: 10-inch color LCD touch screen

Data storage capacity: 1 million sets of data

Printer: 5.7 cm thermal printer with automatic paper cutting

Communication interface: RS232/Ethernet/electronic balance/cooling water/reagent bucket level

Bluetooth communication, data transmission, remote monitoring

Digestion tube waste discharge mode: Manual/automatic

Steam flow regulation: 1%—100%

Safe alkali addition mode: 0—99 seconds

Automatic shutdown time: 60 minutes

Working voltage: AC220V/50Hz

Heating power: 2000W

Main unit dimensions: 500 mm (L) x 460 mm (W) x 710 mm (H)

Cooling system temperature range: 5°C-20°C

Cooling tank capacity: 6L

Circulation pump flow rate: 10L/min

Lift: 10 meters

Working voltage: AC220V/50Hz

Power: 850W
