NADE HP-01 Portable oilless-diaphragm vaccum pump

  • NADE
  • HP-01
  • China
  • laboratory, industry, Metering
  • /, Low Pressure
  • Diaphragm Pump
  • --------
  • 110V/220V
  • other
  • Air Pump
  • Pneumatic
  • Standard
  • Vacuum Pump
  • -0.08Mpa
  • 10L/min
  • eco-friendly

Product Description

Product introduction

Oilless diaphragm vacuum pump is the important equipment of enhance the filtration efficiency effect. Usually, oilless diaphragm vacuum pump will be used to prevent the medium be polluted. The pressure of the pump is about 0.08Mpa(single stage). The pump’s flux is a key to enhance filtration speed, especially to a large number of medium or the medium is too thick. The service life of the pump depends on the right operation, a reasonable motor power and the format of disphragm.

Application

HP series vacuum pump is widely used in laboratories. They can be used for vacuum concentration, vacuum filtration and vacuum drying, etc.

Features

1.The pump is efficient and quiet, easy to operate.
2.Firm structure, long using life.
3.The vent valve and pressure adapter are optional.
4.Available for 3-4 hours continuous operation.
5.HPD can offer two heads, the pressure up to 0.1Mpa ( HPD-25A); the max flow can achieve 50L/min (HPD-50).
6.The diaphragm is oil resistant and durable, the frame is firmly which can withstand force of percussion.

Specification
Model
Flow Rate
(L/min)
Pressure
(MPa)
Power
(W)
Dimensions
(mm)
Weight
(kg)
Shell material
HP-01
10
-0.08MPa
20
226*102*220
2.5kg
Plastic
HP-01D
10
-0.04 to -0.08Mpa,
Adjustable
20
HP-02
20
-0.08MPa
30
HPD-25
25
-0.08MPa
50
245*135*245
5kg
Alloy
HPD-25D
25
-0.04 to -0.08Mpa
Adjustable
50
HPD-25A
25
-0.1MPa
60
280*140*220
7.5kg
HPD-50
50
-0.08MPa
60

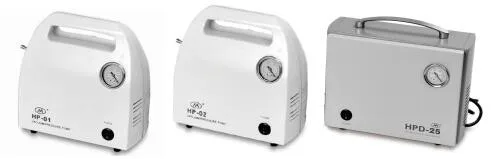

Detailed Images
Our services
Packing & Delivery

Strong carton for export.
