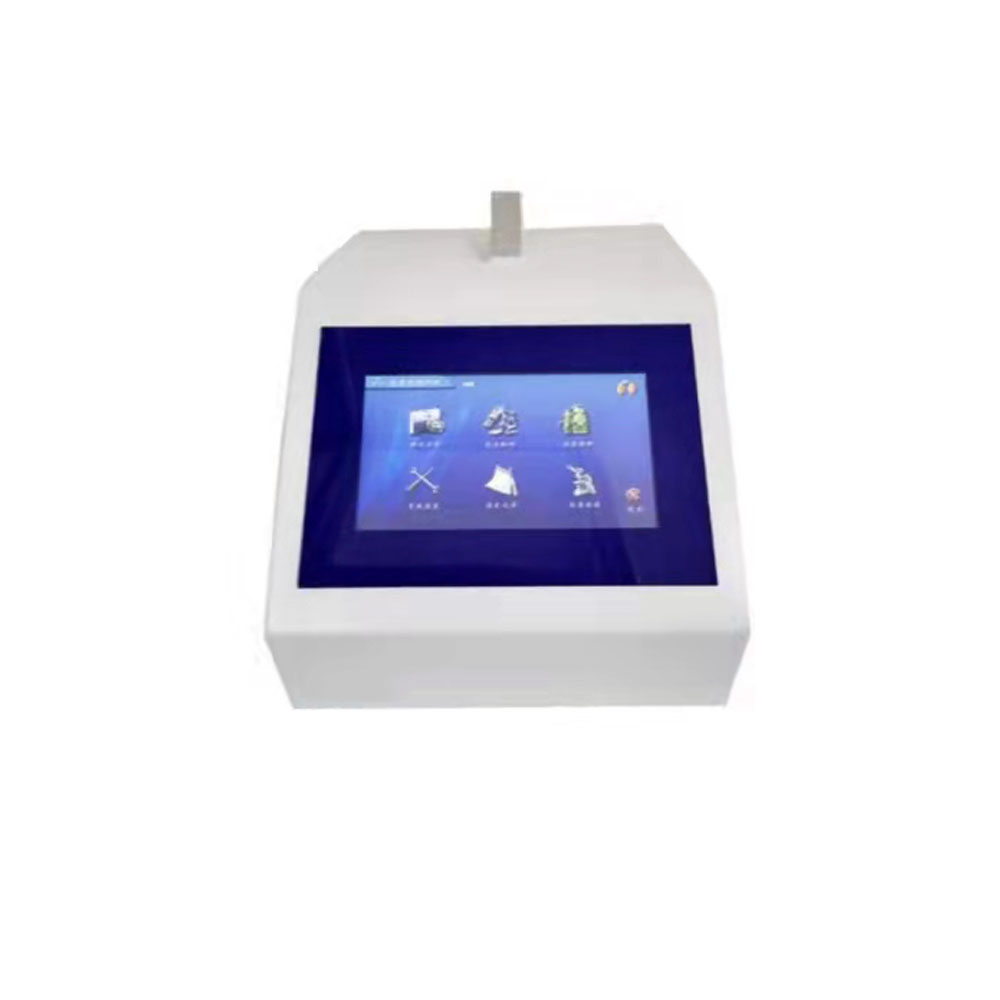

NADE Bubble Point Filter V6.5 Filter Integrity Tester with Audit Trail Function for Water Intrusion Test

  • 1 year

  • /

  • China

  • Nade

  • V6.5

  • 100-10000 mbar (1.5-145psi)

  • mbar

  • Ambient Temperature:+5℃ ~ +40℃;Relative Humidity:10-80%

  • More subject logs

  • Built-in printer

  • More than 15000 sets unlimited sets records

  • RS232/USB

  • Chinese/English

  • Online/Offline

  • 8KG

Product Description

Product Description

NADE Bubble Point Filter V6.5 Filter Integrity Tester with Audit Trail Function for Water Intrusion Test

Features:

1.Powerful functions, covering all the existing test methods for the filter integrity testing;

2.The first domestic implementation of integrity testing for the ultrafiltration system;

3.Scientific authority management design, password, permissions, authority grading, electronic signature, etc.;

4.It can create120 groups of reservation solution, so the instrument is more simplistic and intelligent;

5.With rich data interface, the instrument not only includes the standard configuration of digital and analog interface (RS232/USB), but also can customize a variety of industrial bus and simulation control port according to customer's need, in preparation for the intelligent system upgrade, such as the complete set of online automatic sterilization control system;

6.Independent research and development team can carry out the design of specific solutions according to the needs of customers; Many years of field experience and strong professional services can not only ensure that the customers use the instrument at ease, but also can provide the technical support for the design and configuration of the filter system of the customers;

Specification:

Power Supply

100 – 260 VAC, 50HZ, 120W

Operation Pressure

100-10000 mbar (1.5-145psi) ;

Unit

mbar

Operation Condition

Ambient Temperature:+5℃ ~ +40℃;Relative Humidity:10-80%

Dimension(mm)

400(Depth)*240(Width)*270(Height1)*220(Height2)

Function

Manual Bubble point Test;Basic Bubble Point Test;Extensive Bubble Point Test; Pressure Holding Test;Diffusion FLow Test;Water Intrusion Test;Ultrafitration Membrane Test

Test Accuracy

Upstream Volume Test:± 4%;Bubble Point Test:± 50mbar ;Diffusion Flow Test:± 4% ;Water Immersion:± 0.01ml

Test Scope

BP:100-8000mbar DF:1-600ml/min WI:0.01-100ml/min

Applied Range

Symmetric and asymmetric membrane test, needle filter, filter bag, flat filter, filter cartridge (big filter volume ), ultrafiltration membrane, ultrafiltration column, a variety of irregular filters

Authority Management

User Name and Password to Login

Reservation Solution

120 sets

Audit trail (customization)

More subject logs

Print Function

Built-in printer;

Historical Records

More than1 5000 sets unlimited sets records

Records Copy

Support USB disk to export (Include test curve)

Display Screen

7 inch, color touch screen

Serial Connection

RS232/USB

Language

Chinese/English

Work Mode

Online/Offline

Other functions

One/two-dimension cods ,Scanning gun;Lithium battery(customization)

Applicable Environment

Above Dlevel

Weight

8KG

Anti-liquid level

Front IP65

Signal output

(4-20)MA,RS485,12V Alarm output

More details:

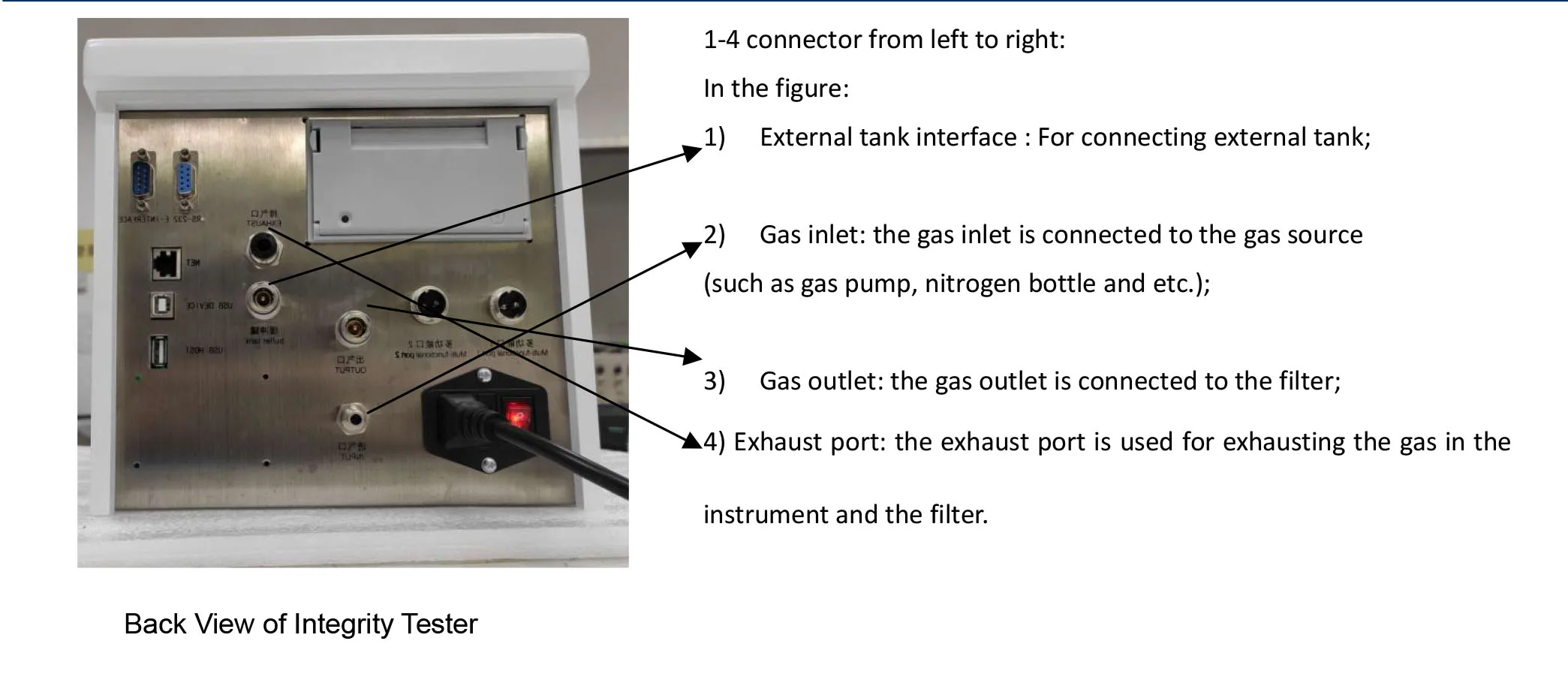

The four gas interfaces of the tester are disposed on the left rear of the instrument, as shown in the figure below.

NADE Bubble Point Filter V6.5 Filter Integrity Tester with Audit Trail Function for Water Intrusion Test
