NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content

  • 1 YEAR
  • OTHER
  • Zhejiang, China
  • NADE
  • AA4530F
  • 86cmx71cmx76cm(Main instrument)
  • 138Kg / 56Kg
  • N/M
  • 190-900nm
  • 190-900nm
  • ≤±0.15nm
  • ≤0.04nm
  • 0.1nm, 0.2nm, 0.4nm, 1.0nm, 2.0nm
  • 0.5%
  • ±0.002Abs/30min
  • ≤ 0.02μg/ml
  • ≤ 0.004μg/ml
  • 8
  • 220V 3A, 50Hz

Product Description

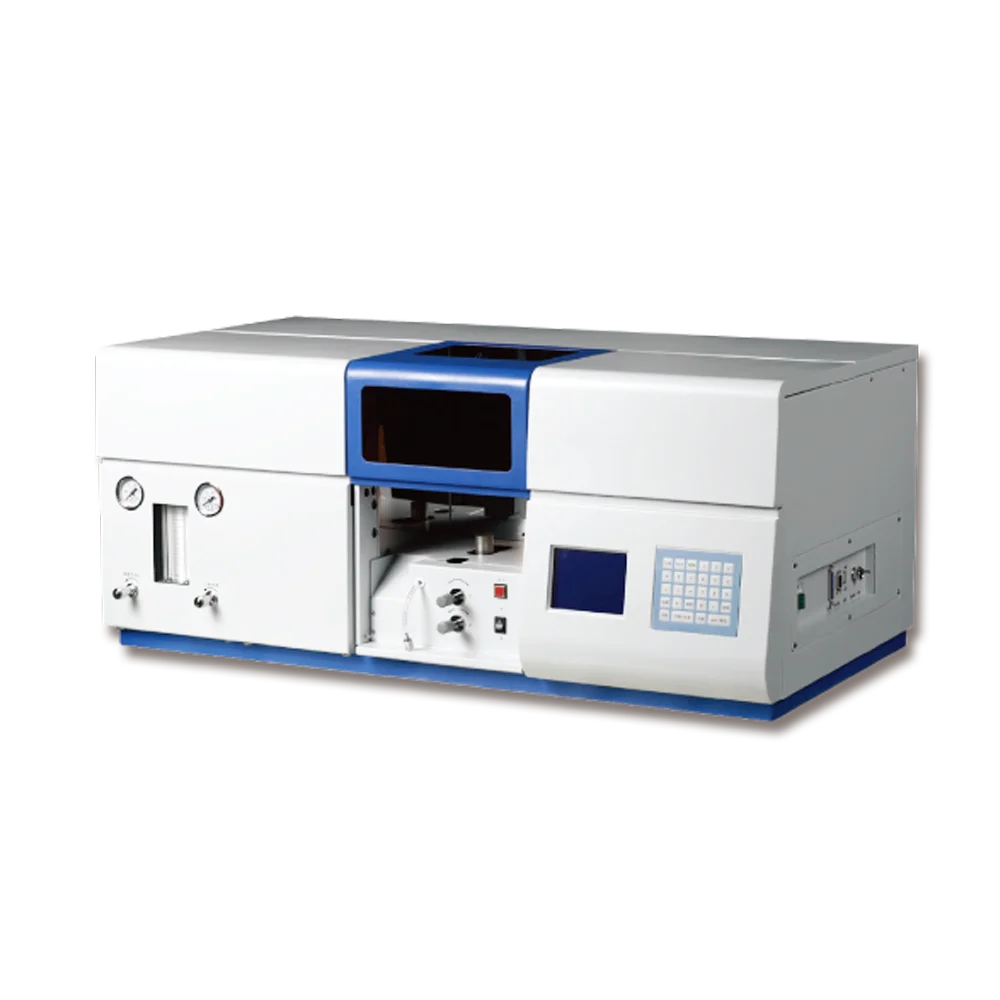

NADE AA4530F AAS Spectrophotometer

Product Description

AA4530F Atomic Absorption Spectrophotometer Integrated floated optical platform design can obviously improve the optical system shock resistance and keep stable though use the optical signal for a long term.

NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content

NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content

Feature

l Completely controlled by PC.

l Integrated floated optical platform design can obviously improve the optical system shock

resistance and keep stable though use the optical signal for a long term.

l Eight light stands can be changed automatically and preheat the eight lights meantime as

well as optimize the working condition of the hollow cathode lamp.

l Position adjusting: the best height of the flame burner and can automatically set the front

and rear positions.

l Fully automated wavelength scanning and peak searching.

l Complete safety chains protection equipment: the function of warning and automatic safety

protection towards the wrong burner, leakage of the gas, under voltage of air and the abnormal

flameout.

l Deuterium lamp and self-absorption background regulation.

l Data processing: super strong database, possesses more than 500 data self-storage and

cut-off storage function, can store the analyzed result with the form of EXCEL and the testing

method and the result can be randomly called.

l Measuring method: flame absorption method and emission method.

l Result printing: parameter printing, data result printing and diagram printing

NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content

Specification

Model

AA4530F

Wavelength range

190-900nm

Wavelength accuracy

≤±0.15nm

Wavelength repeatability

≤0.04nm

Spectrum bandwidth

0.1nm, 0.2nm, 0.4nm, 1.0nm, 2.0nm

Preciseness

0.5%

Base line stability

±0.002Abs/30min

Characteristic concentration of copper:

≤ 0.02μg/ml/1%

Detection limit of copper

≤ 0.004μg/ml

Grating

1800 lines/mm

Inflamer

All-metal titanium burner

Atomizer

Effective glass atomizer

Lamp stand

8

D2 background correction ability

When the background is 1 A, the background ability should be deducted not less than 50 times; self absorption background deduction method

Power supply

220V 3A, 50Hz

G.W.

138Kg / 56Kg

Package size

860mmx705mmx755mm(Main instrument)

545mmx445mmx1385mm ( Accessories )

Standard configuration:

  • Oil-free air compressor
  • Glass Atomizer
  • Cu Hollow cathode lamp
  • Atomizer unit
  • Burner unit
  • Dust cover
  • Water-separating gas filter
  • Titanium burner---10cm

NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content

Oil-free air compressor Cu Hollow cathode lamp

Optional:

  • Hollow cathode lamp
  • Model GA3202 HGA graphite furnace system
  • Graphite tubes
  • Recirculating cooling water system
  • Hydride generator
  • Software

NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content

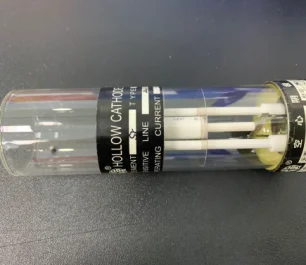

Hollow cathode lamp Graphite furnace GA3202 Hydride generator AAH-1

NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content

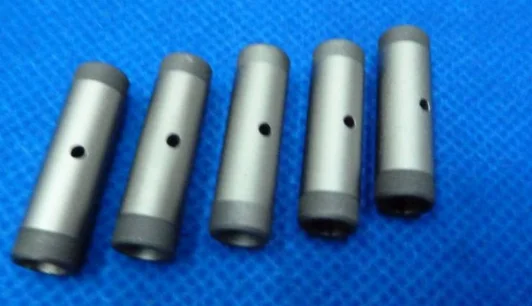

Cooling water circulating device AS800A software uvwin8 Graphite tubes

Other Model:

NADE AA4530F high accuracy AAS Atomic Absorption Spectrophotometer test metal element content AA320N AAS Spectrophotometer
