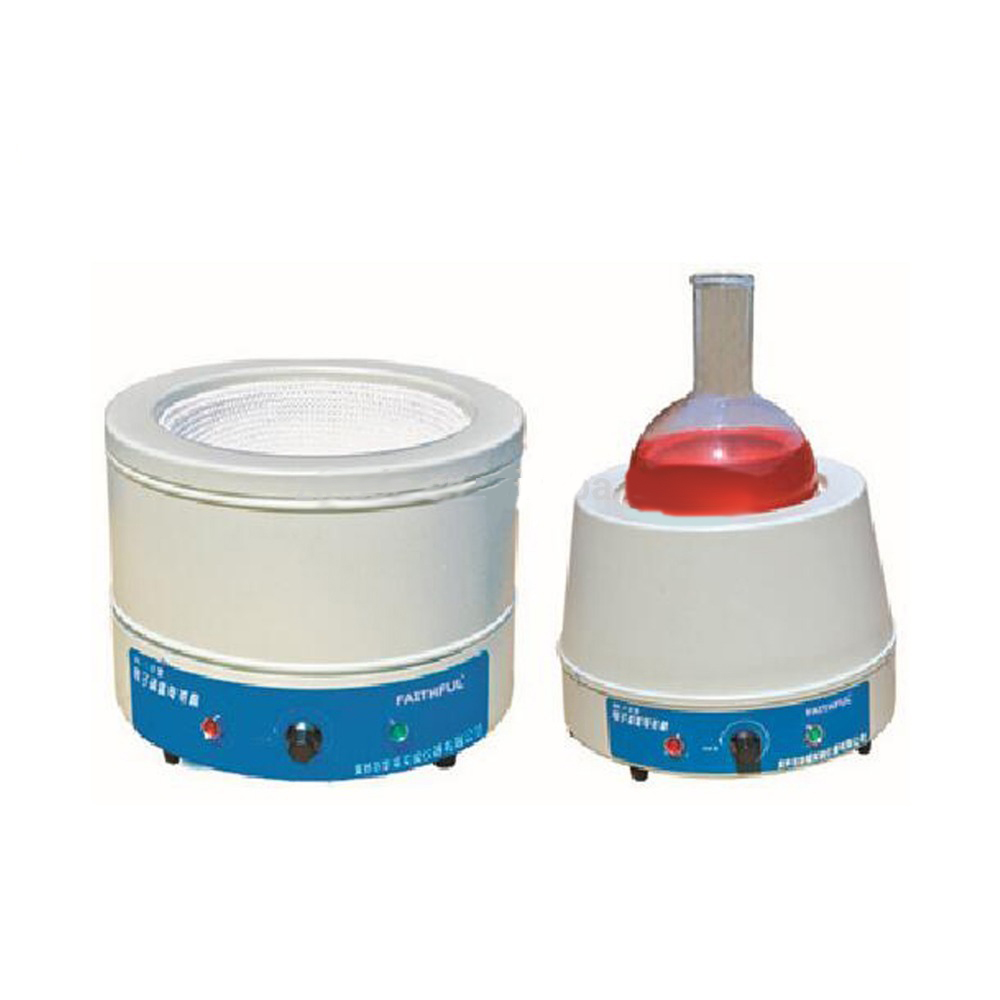

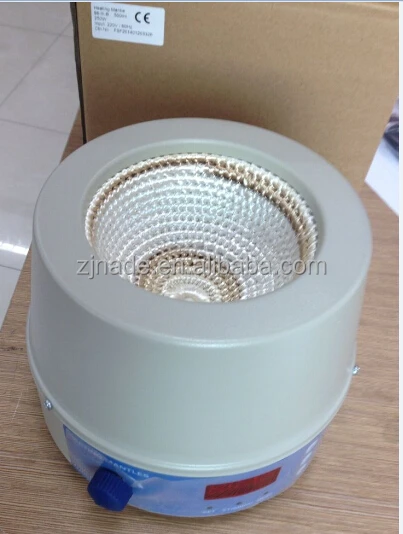

NADE 98-III-B 50ml~20L 1400rpm 450C Digital Magnetic Stirring Heating Mantle

  • China

  • NADE

  • 50ml/250ml/500ml/etc/20L

  • 450 ℃

  • 1400rpm

  • heating, stirring, display

  • round-bottom flask, florence flask

Product Description

Digital display

Magnetic stirring function

Stable performance

Introductions:

This device is widely used for heating and stirring in the school laboratory, industrial and mining, food processing, biochemistry, agriculture for the liquid.

Features:

1. Cold rolling steel stretching and spraying exterior.

2. PID single screen temperature controller with stirring function. Fast heating, temperature uniformity and high precise temperature control.

3. Heating and stirring can be sued simultaneously, stepless speed adjustable.

4. Featured by anti-corrosion, age-resistant, durable and safe.

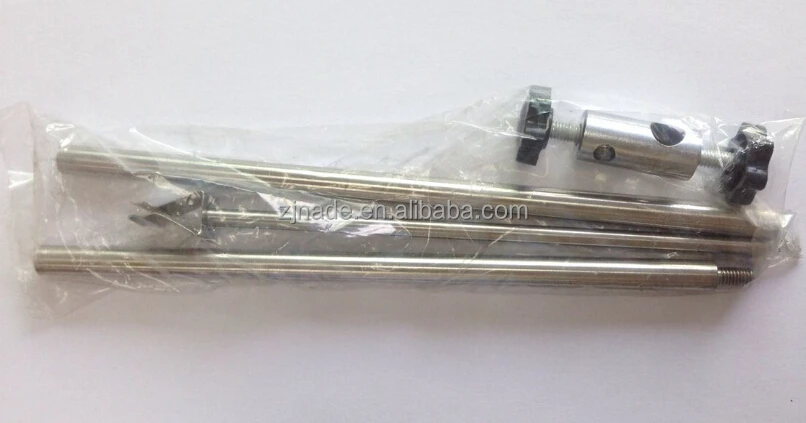

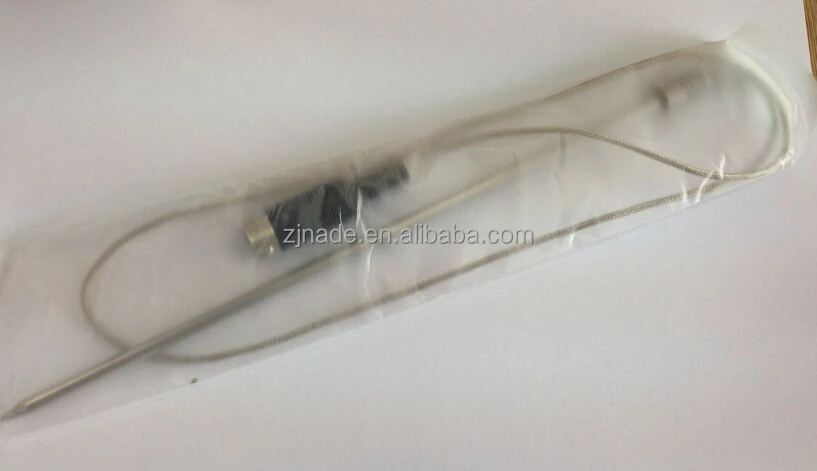

5. PT100 temperature sensor, with adjustable sensor rack and stainless rods.

Specification

Model

98-III-B

Capacity(ml)

100

250

500

1000

2000

Power(W)

100

150

250

350

450

Exterior size(mm)

Ø220×165

Ø280×220

Ø330×230

Packing size

230×215×195

280×280×300

345×290×350

Net weight

2.5

5.5

6.5

Gross weight

2.8

6

7

Voltage

200~240V or 100~120V, 50~60Hz

Speed(rpm)

0-1400

Working time

Continuous

Max use temperature()

450

Model

98-III-B

Capacity(L)

3L

4L

5L

6L

10L

20L

Power(W)

600

700

800

900

1200

2400

Exterior size(mm)

Ø340×245

Ø310×250

Ø350×250

Ø350×270

Ø425×320

550×510×390

Packing size

365×365×295

330×330×270

390× 390× 310

380× 380× 290

470× 470× 380

540× 540× 420

Net weight

7.5

8

8.5

7

9.8

21

Gross weight

8

8.5

9.2

8

12

26

Voltage

200~240V , 50~60Hz

Speed(rpm)

0-1400

Working time

Continuous

Max use temperature()

450

NADE 98-III-B 50ml~20L 1400rpm 450C Digital Magnetic Stirring Heating Mantle NADE 98-III-B 50ml~20L 1400rpm 450C Digital Magnetic Stirring Heating Mantle NADE 98-III-B 50ml~20L 1400rpm 450C Digital Magnetic Stirring Heating Mantle

We have many model of heating mantle at different capacity. pls contact us for more information.
