Fluoride Ion range：Meter：(0.00 to 9.00) pF，connect meter with electrode：(1.00 to 6.00) pF
mV range: -1999.9 mV to 0 to 1999.9mV
Temperature range: -10℃ to 110℃
MP519
NADE
DC9V
1
1 year
China
Product Description

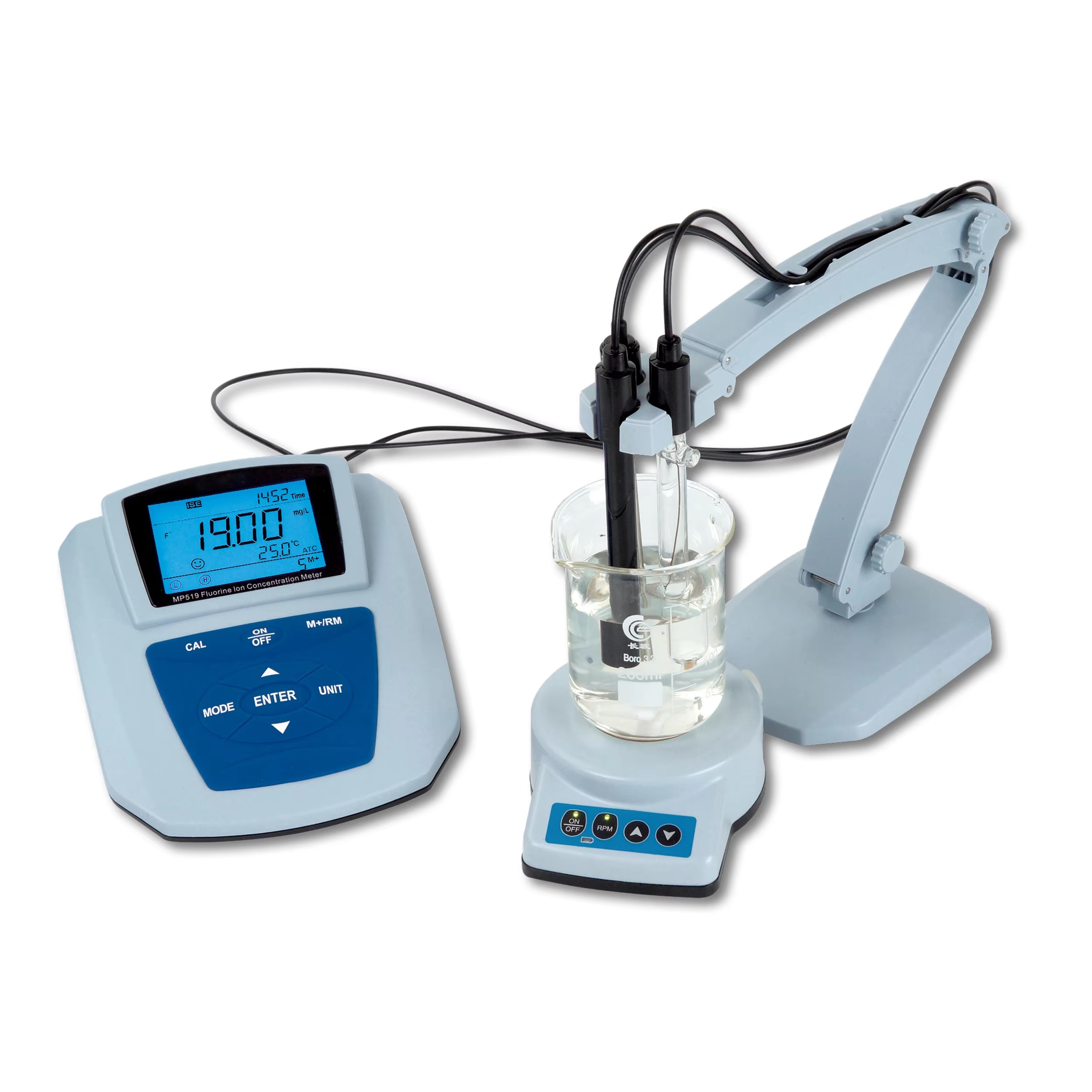

MP519 Fluoride Ion Concentration Meter is a benchtop measuring instrument. It represents the perfect integration of advanced electronic technology, sensor technology and software design, and is among the most cost-effective laboratory-grade fluoride ion concentration analyzers on the market. It is widely used for the testing and analysis of fluoride in drinking water, surface water, seawater, domestic sewage and industrial wastewater, as well as the determination of fluoride ions in mineral materials, organic materials and biological materials.
Specification
Fluoride Ion
Measuring range | Meter：(0.00 to 9.00) pF，connect meter with electrode：(1.00 to 6.00) pF |
Display unit | pF, mol/L, mg/L, ppm |
Accuracy | ±0.01 pF |
Input current | ≤2×10-12 A |
Input impedance | ≥1×1012 Ω |
Stability | ±0.01 pF/3h |
Temp. compensation range | (0 to 50) ℃ ( automatic or manual ) |
mV
Measuring range | -1999.9 mV to 0 to 1999.9mV |
Resolution | 0.1mV |
Accuracy | ±0.1% FS |
Temperature
Measuring range | -10℃ to 110℃ |
Resolution | 0.1℃ |
Accuracy | (5 to 60)℃ range：±0.5℃ other range：±1.0℃ |
Other Technical Parameters
Data storage | 600 groups |
Storage content | Measuring value serial number, measuring value, temperature, ATC or MTC state, measuring date and time |
Power | DC9V/300mA |
Communication connector | RS-232 |
Size and weight | 160 × 190 × 70mm/880g |
Quality and safety certification | ISO9001:2000, CE and CMC |
Working Condition
Environment temperature | (5 to 35) ℃ |
Environmental humidity | ≤85% |
IP grade | IP54 Dustproof and waterproof |
