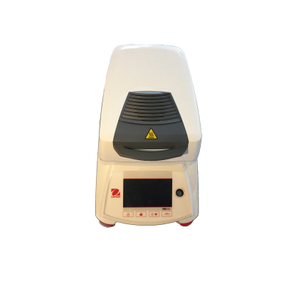

MB23 Infrared heating moisture meter

Capacity (metric): 110g
Readability (metric): 0.01g
Interface: Bidirectional RS-232
Heat source: Infrared
  • MB23

  • 1

  • 1 year

  • China

Product Description


Moisture Analysis Detail:

  1. Easy to setup and operate-The MB45/35 utilize a dot matrix graphic display for quick setup and use. The MB23/25 employ a bright backlit LCD display.

  2.  Halogen or IR heating elements-MB45/35/25 have a fast and even heating halogen lamp, while the MB23 uses a glass free IR heating system.

  3.  Simple or Advanced-The MB45 features powerful software with an integrated date-base to store 50 drying procedures along with the ability to track statistical date. All products feature multiple shutoff criteria to save time and cost


Capacity (metric):110 g
Readability (metric):0.01 g
Repeatibility (Std. Dev.):0.3% (3g sample) 0.2% (10g sample)
Moisture Range:3g to 20g typical, 0.5g min.
Interface:Bidirectional RS-232
Timer:1 - 99 minutes, 30-second increments to 60minutes
Heat source:Infrared (no glass)
Temperature settings:50°C to 160°C in 5° increments
Power Requirements:100 to 240 VAC, 50/60 Hz
Tare range:To capacity by subtraction
Operating Temperature Range:41° to 104°0F / 5° to 40°C
Display:Custom backlit LCD
Information displayed:% moisture or % solids or weight (g), temperature, time
Pan size (Dia.) (in/cm):3.5 inch / 90 mm
Dimensions WxHxD (in/cm):6.5 x 5 x 11 inches / 17 x 13 x 28 cm
Net Wt. (lb/kg):5 lb / 2.3 kg
Shipping Wt. (lb/kg):8.5 lb / 3.9 kg
