MB120
120 or 240VAC 50/60 Hz
1
1 year
China
Product Description
Features:
1.The MB120 provides fast and precise results of 0.01% readability;
2.A large capacity of 120g with a wide variety of materials for a range of applications;
3.Halogen heating provide speed and accurate results;
4.The robust housing and die-cast base guarantee durability;
5.Easy tool-free cleaning with stainless steel drying pan and removable heating chamber;
6.Icon-based menu navigation on the easy-to-read touchscreen display makes operating the MB120 intuitive;
7.With USB and RS232 Ports, data can be simply transferred from moisture analyzer to a USB drive.
8.Four drying profiles offers speed and accurate results for testing.
Function:
1.MB120’s Temperature Guide analyzes a sample and determines the optimal drying temperature;
2.MB120 store up to 1000 Results for All Methods for Statistical Analysis;
3.Three levels of user management set up and lock temperature settings and method parameters with administrator access ensuring data safety;
4.Customize your own test endpoint criteria to automatically end the test once moisture loss is no longer detected;
5.Choose from 7 criteria—Manual, Timed, Auto-Free percent weight loss per second, Auto-Free mg loss per second, A30, A60 and A90.
Optional Accessories:
Pan Handler
In-Use-Cover
Scoop
Temperature Calibration Kit
Anti-Theft Device
Aluminum Pan (set of 80)
Glass Fiber Pads(set of 200)
Cage, Sample
Reusable Pan Set of 3, 7mm High
Reusable Pan Set of 3, 14mm High
SF40A Impact Printer
Specification
| Model | MB120 |
| Capacity | 120g |
| Repeatability(Std Dev)(g) | 0.05%(3g sample) 0.015%(10g sample) |
| Readability | 0.01%/0.001 g |
| Moisture Range | 0.01% to 100% (0.01% to 100% for regain mode) |
| Output | RS232, USB Host, USB Device |
| Heating Element | Halogen |
| Temperature Range | 40-230°C |
| Power | 120 or 240VAC 50/60 Hz |
| Operating Temperature Range | 50-104°F/10–40 °C |
| Display Type | 4.3 in/109mm, QVGA, TFT touch screen |
| Displays Results | %moisture, %solids, %regain, time, temperature, weight, method name, drying curve and statistics |
| Pan Size (Diameter) | 3.5 in/109 mm |
| Dimensions (W × H × D) | 8.3 × 7.7 × 14.0 in/211 × 180 × 355 mm |
| Net Weight | 11.5lb/5.23kg |
| Shipping Weight | 18.4lb/8.35kg |
Compliance
•Product Safety: IEC/EN 61010-1; IEC/EN 61010-2-010; CAN/CSA C22.2 61010-1; CAN/CSA C22.2 61010-2-010; UL 61010-1
•Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments; FCC Part 15 Class A; ICES-003 Class A
Additional Features
ABS top housing, stainless steel pan support, in-use cover, storage up to 2 methods and 100 test results for each method, user-guide, 13 operational languages.

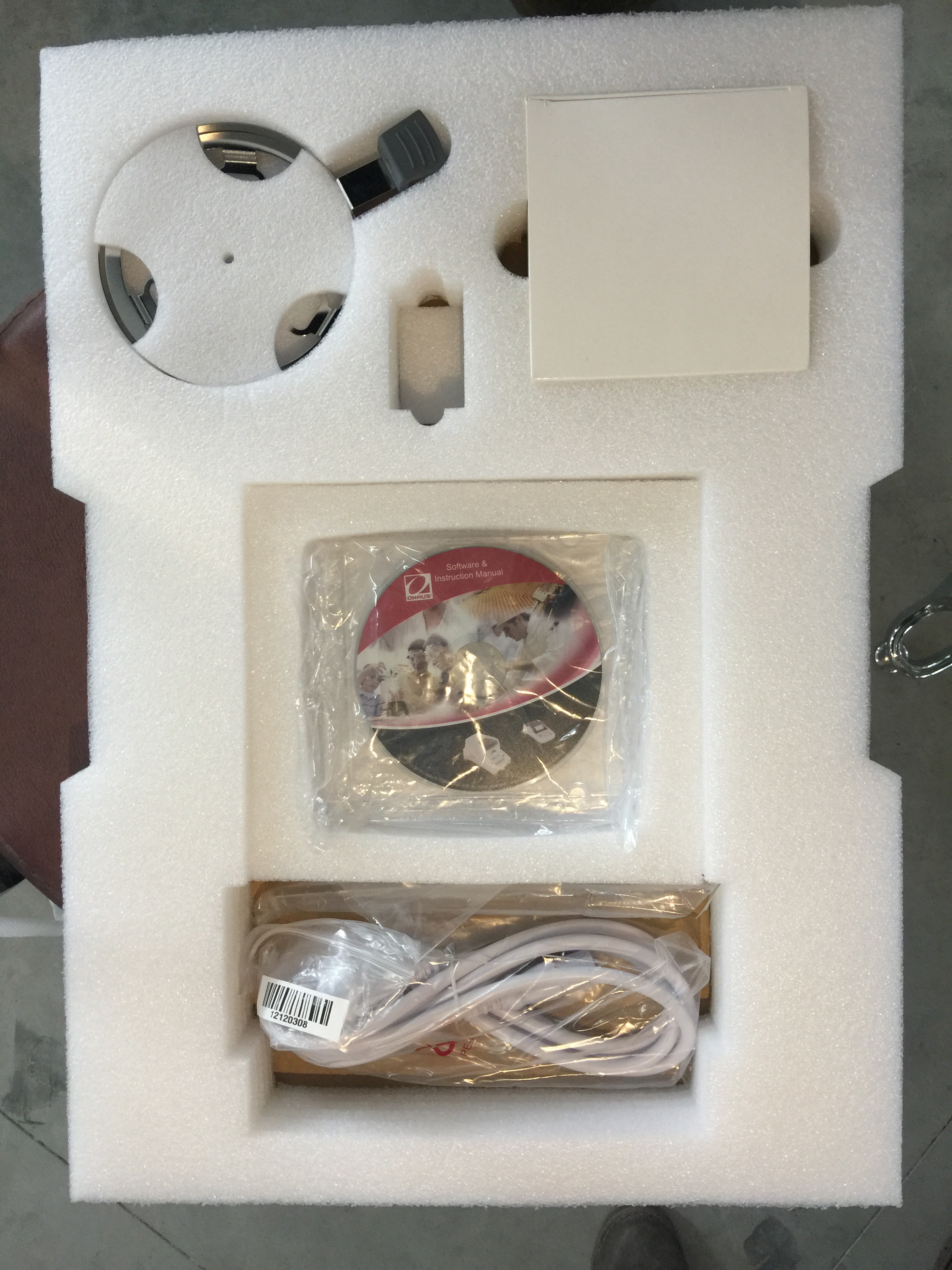

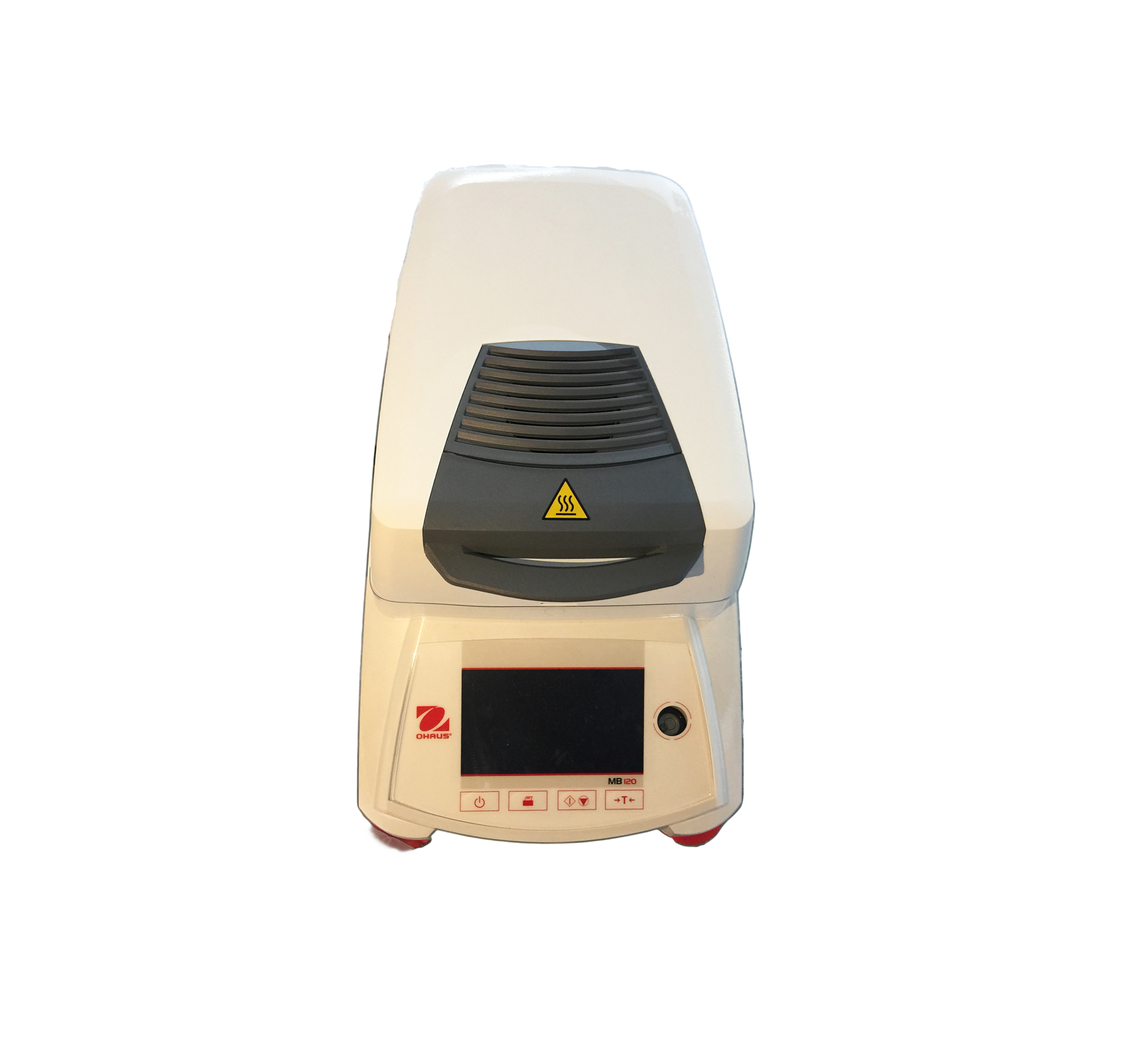

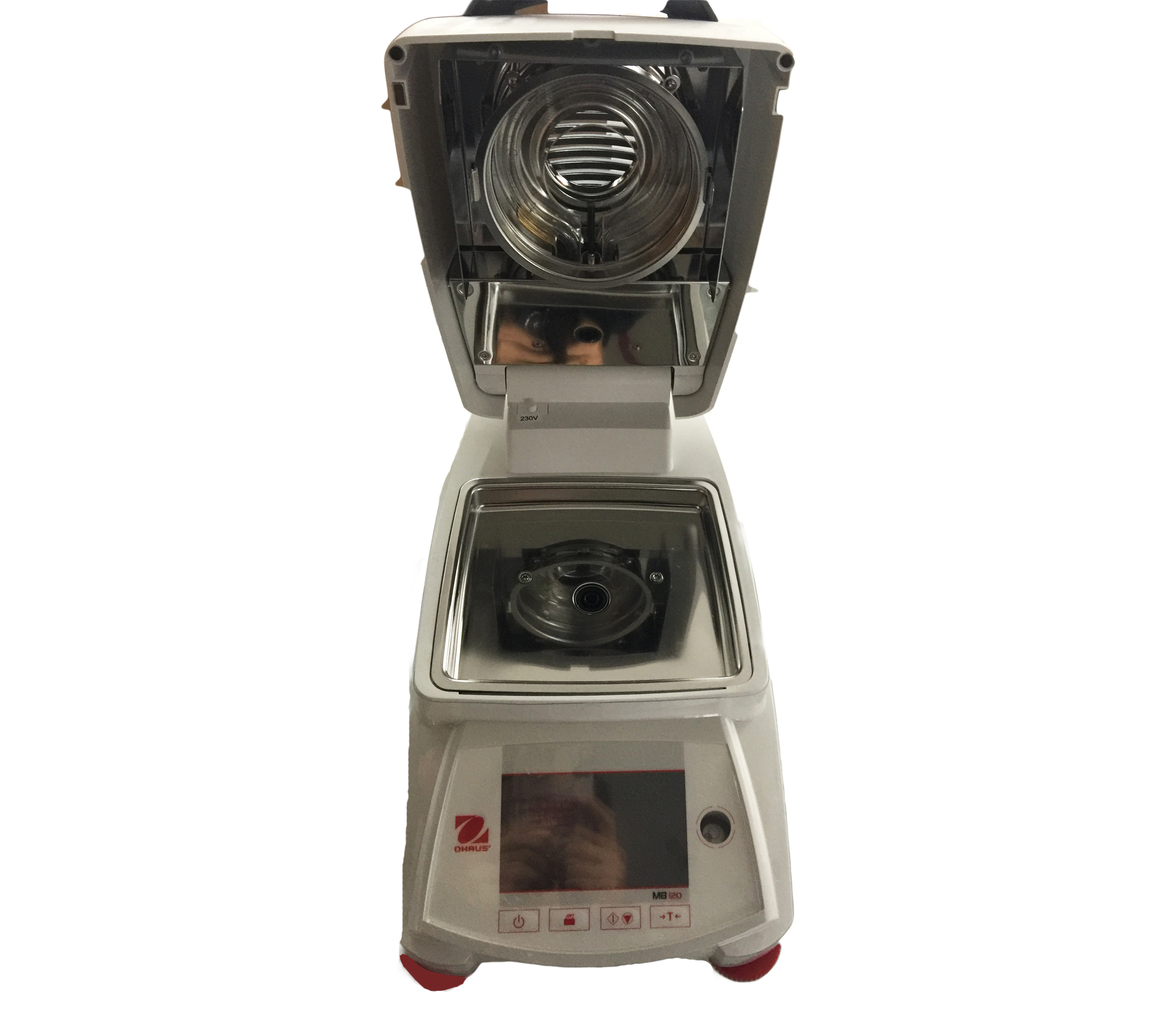

Real photos show
