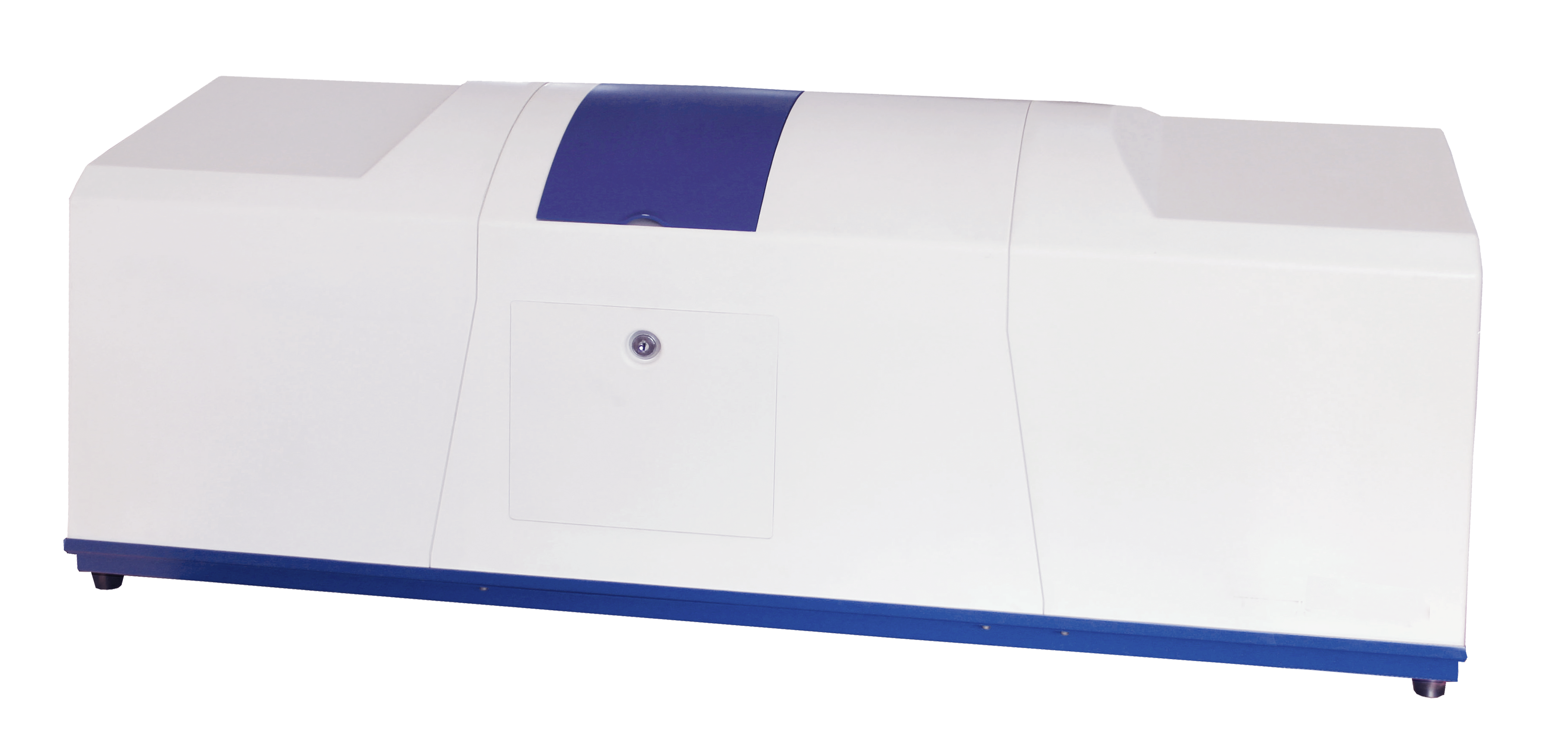

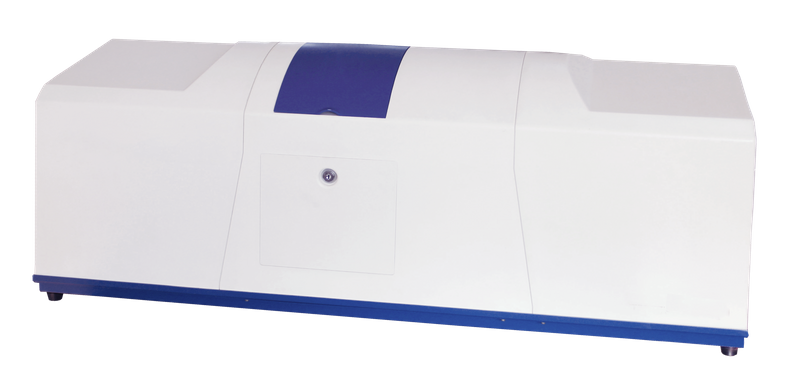

Laser Particle Size Analyzer

The laser particle size analyzer is an instrument based on the principle of light scattering. It obtains particle size distribution data by measuring the scattering signals of particles on laser light and features high precision and rapid detection.

• The laser particle size analyzer is based on full measuring range of Mie scattering theory. On the basis of laser illuminate size and the size distribution regular pattern of scattering light energy that comes from the sample inversely calculate out sample group.

• Meet ISO-13320, widely used in enterprises and institutions such as chemical, pharmaceutical, cement, new materials, ceramics, soil, as well as universities, research departments, and other fields.

• It adopts He-Ne laser make illuminant lasting more than 25000 hours, and the wavelength is 0.6328 micron. Narrow string breadth enhances stability.

• It has one primary detector and many assist detectors presenting non-uniform intercourse and three dimension fan-shaped ranges matrix rank. The largest test examination horn angle attainability is up to 135°.

• Automatic centering and ultrasonic dispersion system.

• Coatings Industry: Controlling the particle size distribution of zinc powder, pigments, and other components in coatings.

• Pharmaceutical Industry: Monitoring the particle size changes of traditional Chinese medicine powders during production.

• Agriculture: Assessing soil texture and fertility through soil particle size distribution; analyzing the uniformity of pesticide spray particles.
