I500T pH/Ion Meter

pH Range: -2.000 to 20.000 pH
mV/ORP Range: -2000.00 to 2000.00 mV
pX Range: -2.000 to 20.000 pX
ISE Range: 1E-9 to 9.999E9
Availability:
  • I500T
  • AC Adapter, 100-240V AC input, DC24V output
  • 1
  • 1 year
  • China

Product Description

I500T

GENERAL FEATURES

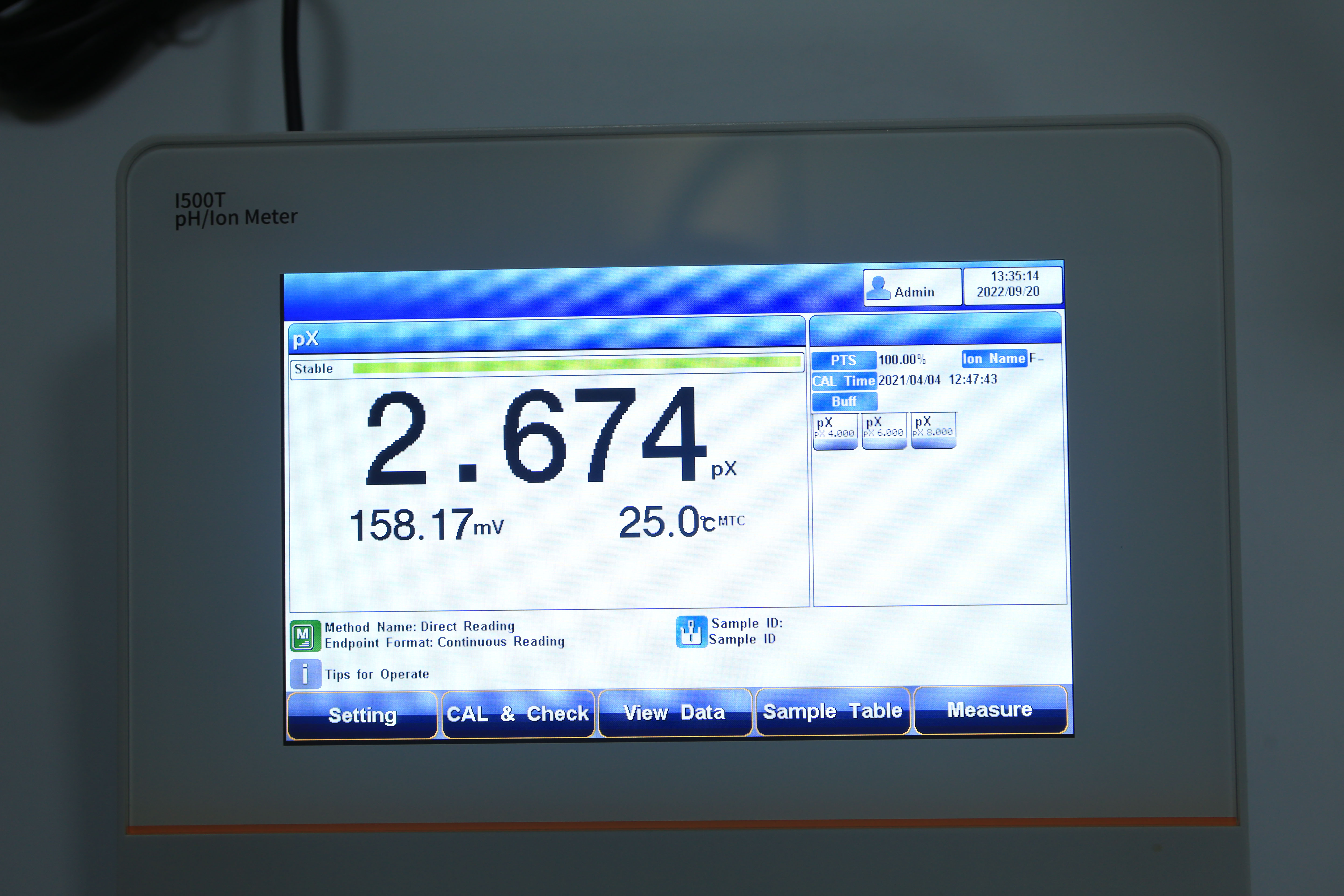

● Color High contrast LCD touchscreen, 7.0 inches.

● Intelligent operation system provides features including user management, calibration management, method management, data management and etc.

● Multi-reading feature allows auto-read, timed-read and continuous-read.

Automatic/Manual temperature compensation ensures accurate results.

● Data Storage 1000 sets for each parameter (GLP-compliant).

● Data analysis feature helps user review, compare and recalculate results.

● Support for USB or RS-232 communication.

● Reset feature automatically resumes all settings back to factory default options.

● IP54 waterproof.



Ion

● 1-6 points calibration

● Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, pX, ppm, etc.

● Multi-measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.

● Over 10 methods are built-in, including F- , Cl- , Br- , I- , NO3 - , BF4 - , NH4 + , K+ , Na+ , Ca2+, Cu2+, Pb2+, Ag+ and etc., user-defined method is supported.



pH

● 1-6 points calibration with Standard Recognition.

● Selectable pH buffer groups, including DIN, NIST, USA, MERK, JIS, GB.

● Support for pH standard group customization.

● Automatic electrode diagnosis with pH slope and offset display.

Specification

Model

I500T

Parameters

pH/ISE/Temp.(mV/ORP/pX)

           pH

Range

-2.000 to 20.000 pH


Resolution

0.1, 0.01, 0.001pH


Accuracy

± 0.002 pH


Calibration Points

Up to 6


Standard Customization

Yes


Calibration Reminder

Yes


Standard Recognition

NIST, GB, DIN, USA, MERK, JIS buffers

Slope Limit

Yes

      mV/ORP

Range

-2000.00 to 2000.00 mV


Resolution

0.1, 0.01 mV


Accuracy

± 0. 1 mV or ± 0.03% of

reading whichever is greater


EH ORP Mode

Yes


ORP Calibration Points

1 custom point (relative mV)

           pX

Range

-2.000 to 20.000 pX


Resolution

0.1, 0.01, 0.001 pX


Accuracy

± 0.002 pX


Calibration Points

Up to 6

           ISE

Range

1E-9 to 9.999E9


Units

mol/L, mmol/L, g/L, mg/L, μ g/L, ppm


Resolution

Up to 4 significant digits


Accuracy

± 0.3%


Calibration Points

Up to 6

   Temperature

Range

- 10 to 135 ºC, 14 to 275 ºF


Unit

ºC, ºF


Resolution

0.1


Accuracy

± 0. 1

Measurement

Reading Mode

Auto Read (Fast, Medium, Slow), Timed, Continuous


Reading Prompts

Reading, Stable, Locked


Temp. Compensation

ATC, MTC

Data management

Data Storage

1000 Groups


GLP Features

Yes


Log Management

Yes

Inputs

pH Electrode

BNC(Q9)


Temp. Probe

4-pin aviation connector

Outputs

USB

USB 2.0 flash memory device, PC


RS 232

printer, scanner, auto-sampler

Display options

Backlight

Yes


Auto Shutdown

1~60 min, off


IP Rating

IP54


Date and Time

Yes

General

Power

AC Adapter, 100-240V AC input, DC24V output


Dimensions

220 × 195 × 68 mm


Weight

950g (2.09 lb)

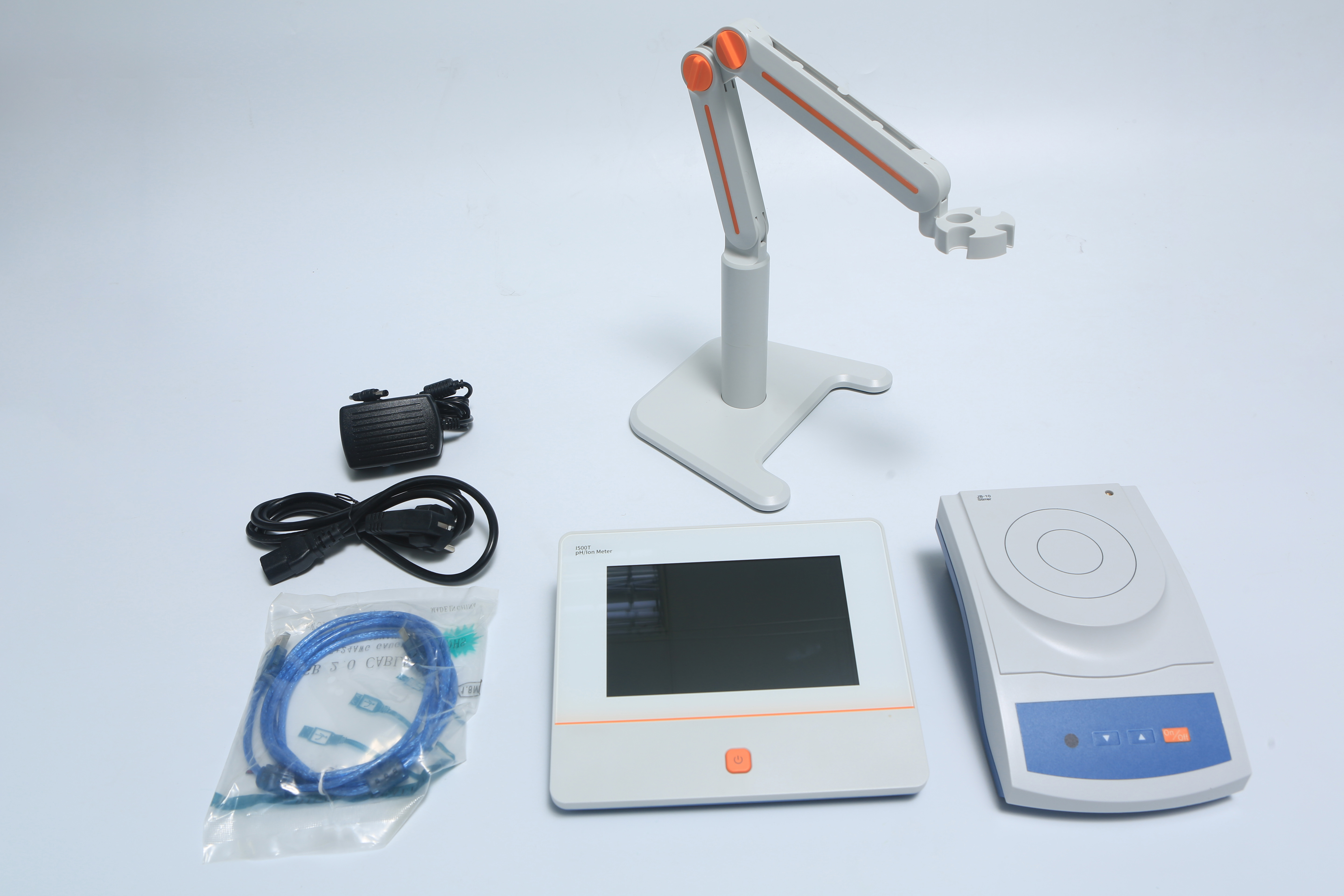

Configuration

JB-10 stirrer

REX-6 Multifunction Electrode Stand

Touch Screen Pen

I500T Configuration

PXSJ-226T
