I400F pH/Ion Meter

pH Range: -2.000 to 20.000 pH
mV Range: -2000.00 to 2000.00 mV
pX Range: -2.000 to 20.000 pX
ISE Range: 1E-9 to 9.999E9
Availability:
  • I400F
  • AC Adapter, 100-240V AC input, DC9V output
  • 1
  • 1 year
  • China

Product Description

I400F

GENERAL FEATURES

● High resolution LCD display, 5.7 inches.

● Multi-reading feature allows auto-read, timed-read and continuous-read.

● Automatic/Manual temperature compensation ensures accurate results.

● Auto-hold feature senses and locks the measurement endpoint.

● Data Storage 500 sets (GLP-compliant).

● Support for USB or RS-232 communication.

● Reset feature automatically resumes all settings back to factory default options.

● IP54 waterproof.



Ion

● 1-5 points calibration.

● Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, PX, etc.

● Multi-measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.

● Over 10 methods are built-in, including F- , Cl- , Br- , I- , NO3- , BF4- , NH4+ , K+ , Na+ , Ca2+ , Cu2+ , Pb2+ , Ag+ and etc., user-defined method is supported.



pH

● 1-5 points calibration with Standard Recognition.

● Selectable pH buffer groups, including NIST, DIN, GB.

● Automatic electrode diagnosis with pH slope and offset display.

Specification

Model

I400F

Parameters

pH/ISE/Temp.(mV/pX)

             pH

Range

-2.000 to 20.000 pH

Resolution

0.1, 0.01, 0.001pH


Accuracy

± 0.002 pH

Calibration Points

Up to 5

Standard Customization

Yes


Standard Recognition

NIST, GB, DIN, USA and MERK buffers

Slope Limit

Yes

            mV

Range

-2000.00 to 2000.00 mV

Resolution

0.1, 0.01 mV


Accuracy

± 0. 1 mV or ± 0.03% of

reading whichever is greater

            pX

Range

-2.000 to 20.000 pX

Resolution

0.1, 0.01, 0.001 pX


Accuracy

± 0.002 pX

Calibration Points

Up to 5

           ISE

Range

1E-9 to 9.999E9

Unit

mol/L, mmol/L, g/L, mg/L, μ g/L, ppm


Resolution

Up to 4 significant digits

Accuracy

± 0.3%

Calibration Points

Up to 5

     Temperature

Range

- 10 to 135 ºC, 14 to 275 ºF

Unit

ºC, ºF


Resolution

0.1


Accuracy

± 0. 1

Measurement

Reading Mode

Auto Read (Fast, Medium, Slow), Timed, Continuous

Reading Prompts

Reading, Stable, Locked


Temp. Compensation

ATC, MTC

Data management

Data Storage

500 results each

GLP Features

Yes

Inputs

pH Electrode

BNC(Q9)


Temp. Probe

4-pin aviation connector

Outputs

USB

USB 2.0 flash memory device, PC


RS 232

printer

   Display options

Backlight

Yes


Auto Shutdown

1~60 min, off


IP Rating

IP54


Date and Time

Yes

General

Power

AC Adapter, 100-240V AC input, DC9V output

Dimensions

242 × 195 × 68 mm


Weight

900g (1.98 lb)





Configuration

JB-10 stirrer

REX-5 Multifunction Electrode Stand

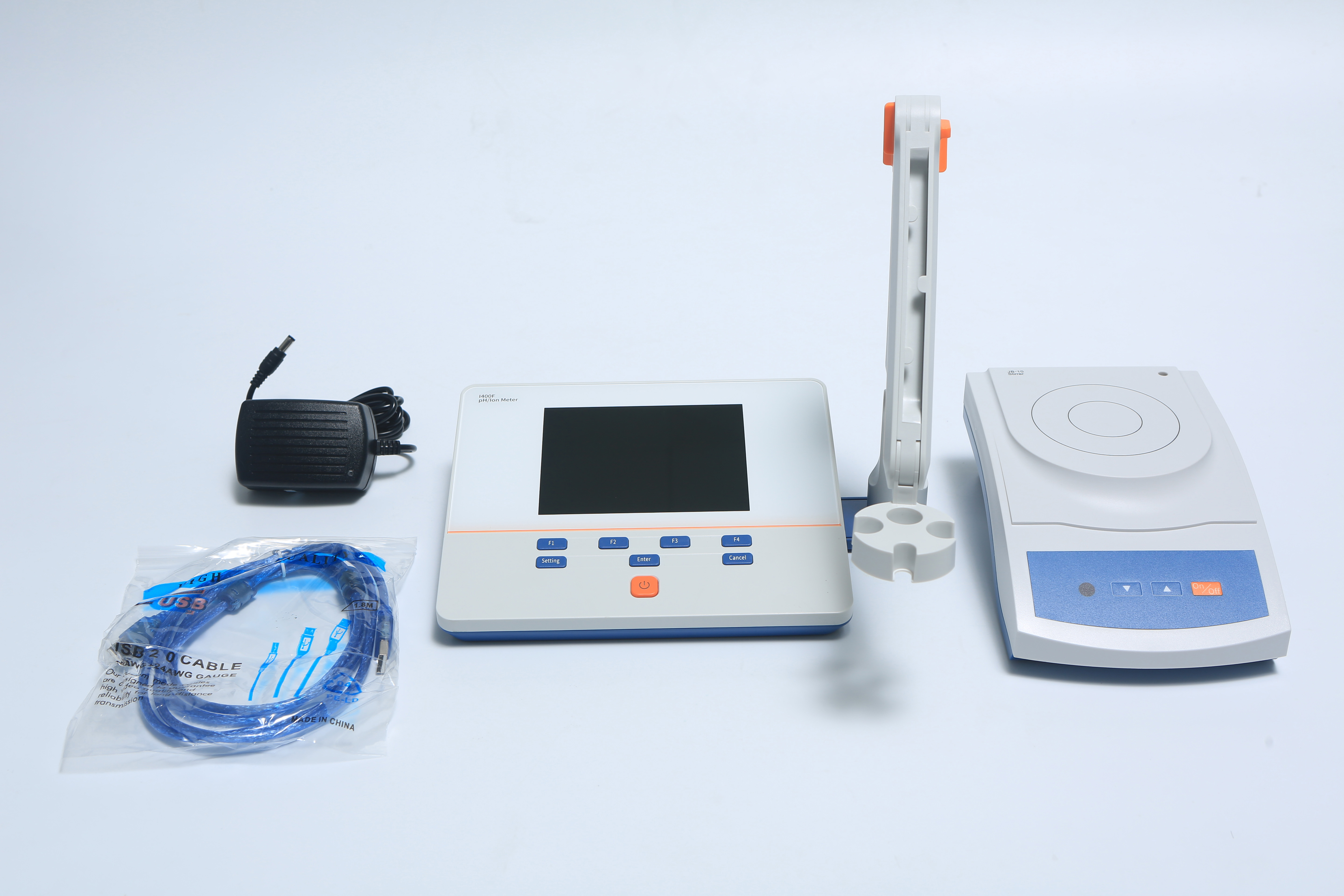

I400F Configuration

PXSJ-216F
