FA2204
NADE
1
OEM
1 year
China
Product Description
NADE Company provides OEM service for balances.

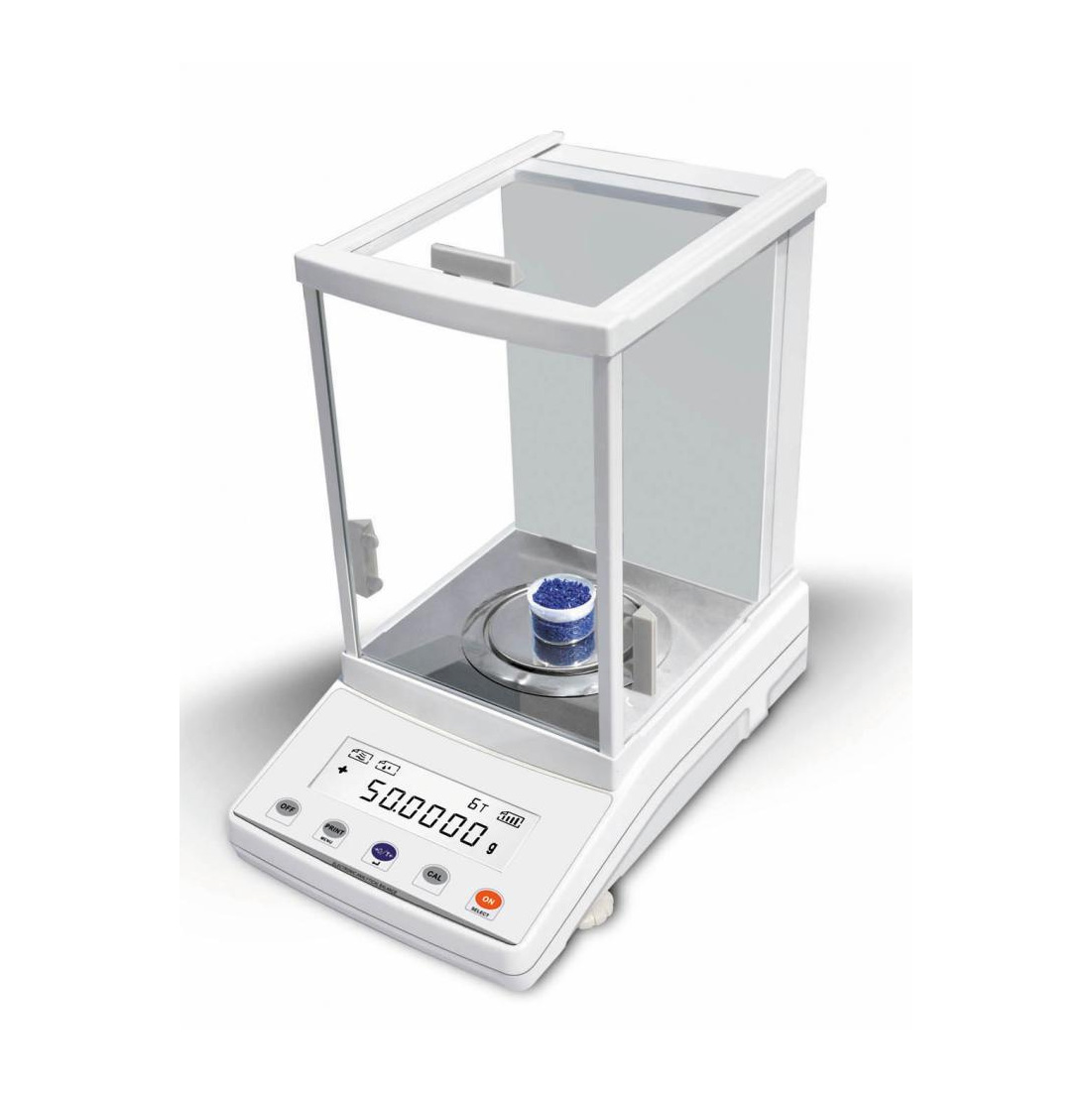

The visual appearance of the product is blent into the simple concept,stylish and generous.Specially makes the fine pouring cast-aluminium outer covering,so as to enhance the balance of the anti-static anti-jamming capability.Touch interface with four operational button Sliding glass windscreen provide big space,insightful vision and operate easily.
FA Features
1.Electromagnetic sensor
2.Aluminum shell Large space wind proof cover
3.LCD(White back light with black font)
4.Tare function/Counting/Unit conversion(g/mg/ct/oz)...
5.Sensitivity/Speed set/Percentage
6.Overload alarm/Fault alarm/Level indicator
7.Option:Under weighing/Printer
Specification
Model (External Calibration) | FA1004 | FA1204 | FA2004 | FA2204 | |
Model (Internal Calibration) | FA1004N | FA1204N | FA2004N | FA2204N | |
Capacity | 100g | 120g | 200g | 220g | |
Readability | 0.0001g | ||||
Min Weighing | 0.0004g | ||||
Repeatability | ±0.0002g | ||||
Linearity | ±0.0003g | ||||
Stable Time | ≤3S | ||||
Pan Size | Ø80mm | ||||
Appearance Size | 340x215x350mm | ||||
Draft Shield Size | 240x190x265mm | ||||
Communication | RS232(Standard) / USB、RJ45 (Optional) | ||||
Temperature | 15-35℃ | ||||
Cal.Weight | 100g | 200g | |||
Option | Printer | ||||
Packing Size | Inner box:415x285x430mm Outer box:475x315x485mm | ||||
