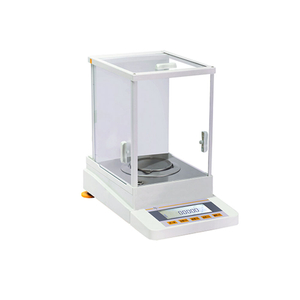

FA1604 Electronic Analytical Balance & Precision Digital Weighing scales

Weighing Capacity (g): 160
Readability (mg): 0. 1
Repeatability (≤mg): ±0.1
Linearity (≤mg): ±0.2
Availability:
  • FA1604

  • NADE

  • 110~220V, 50/50Hz

  • 1

  • OEM

  • 1 year

  • China

Product Description

NADE Analytical Balance FA Series  External calibration

appearance have been updated to below picture:

balance FA FB JA

Electronic Analytical Balance Detail:

1. Modular electromagnetic force sensor

2. Weighing range indicat, white light LCD display

3. High sensitivity light touch buttons

4. Under hook recessed

5. The glass door lock to protecting transportation

6. RS232 interface module, USB interface module, built-in clock

7. Independent Tare and zero button, two-way communication

8. Four level shockproof

9. Dynamic temperature compensation

10. Weighing speed adjustable, showing way adjustable

11. Zero in range ability

12. Automatic trouble diagnosis, Over-loading protection

13. Unit conversion (g / oz / ct / kg / lb)




Specification

Model

FA124

FA224

FA1004

FA1104

FA1604

FA2004

FA2104

FA2104S

Weighing Capacity(g)

120

220

100

110

160

200

210

60/210

Readability(mg)

0.1

0.1

0.1

0.1

0.1

0.1

0.1

0.1/1

Repeatability(≤mg)

±0.1

±0.1

±0.1

±0.1

±0.1

±0.1

±0.1

±0.1/±1

Linearity(≤mg)

±0.2

±0.2

±0.2

±0.2

±0.2

±0.2

±0.2

±0.2/±2

Pan Size( mm)

Ф90

Ф90

Ф90

Ф90

Ф90

Ф90

Ф90

Ф90

Gross Weight( kg)

10

Net Weight (kg)

5

Dimension(mm)

365×223×338

Packing Measurement (mm)

600×400×650
