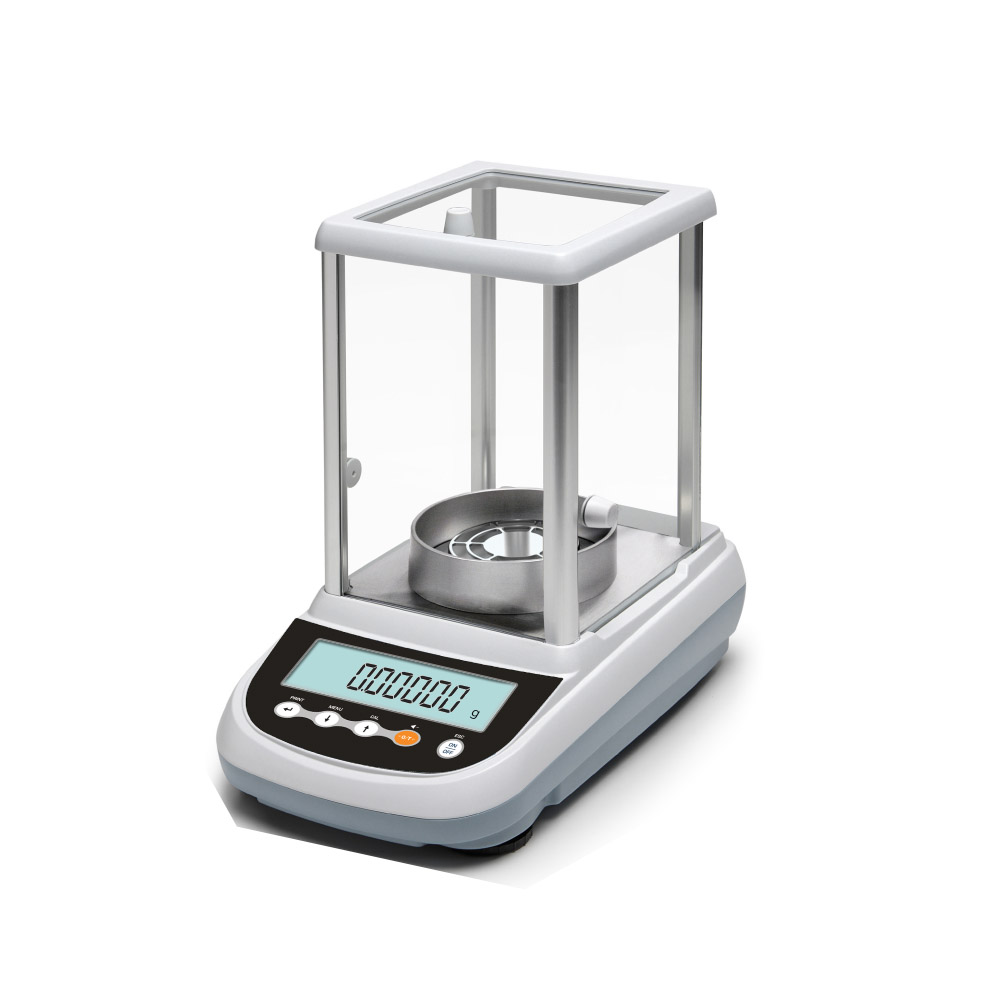

FA125SEM-ION Micro digital analytical laboratory balance

Capacity(g): 122g
Resolution(g): 0.01mg
Min weighing(g): 100mg
Stable Time: ≤6s
Availability:
  • FA125SEM-ION

  • NADE

  • 110-230V 50/60Hz Out DC 12V 1A

  • 1

  • 1 year

  • China

Introduction

The semi-micro balance has an accuracy of 0.01 mg. This series is equipped with a new type of highly integrated electromagnetic sensor, all of its models can be automatically internally calibrated, with the characteristics of high precision and high repeatability. All HPBG-type balances are equipped with a large graphic display for easy operation. The new semiMicro balance has a consistently excellent price-performance ratio.

Features

1.Recipe database: 99 datas can be stored

2.Automatic internal calibration

3.Tare/counting/percentage test/animal weighing

4.Baud rate is adjustable/ Density function

5.unit conversion (g/mg/ct/oz)...

6.Multi-Language : English/ German/French/Italian/   Spanish/Portuguese

7.Keep weight values in GLP/ISO format,Includes date, time,  and serial number

 8.Plastic protection cover for keypad

9.Sensitivity/speed adjustable

10.Overload alarm/fault alarm/level indicator


Specification

Model

FA1265SEM

FA2285SEM

FA22105SEM

FA125SEM-ION

FA165SEM-ION

FA205SEM-ION

Capacity(g)

62g/120g

82g/220g

102g/220g

122g

162g

202g

Resolution(g)

0.01mg/0.1mg

0.01mg

Min weighing(g)

60mg

100mg

100mg

Stable Time

≤6s

Display

LCD(white back light with black font)

Pan size

Φ80mm

Operation temp

5-25℃ 20-80% humidity

Repeat ability

0.03mg/0.1mg

0.05mg/0.1mg

0.05mg



0.05mg



Liner

±0.08/±0.2mg

±0.1/ ±0.2mg

±0.1mg



±0.1mg



Draft shield size

152mm×160mm×225mm

Cal.weight

Internal Calibration

Option

RS232C & RS486,Printer

Dimension

345×215×345mm

G.N . weight

8.25kg/5.8kg

8.3kg/5.85kg

IONISER

Option

Standard

Language

Italian/English/Portugues/Deutsch/France/Espanol

Packing Size

510x400x620mm(No pallet)

Power Supply

110-230V  50/60Hz Out DC 12V 1A
