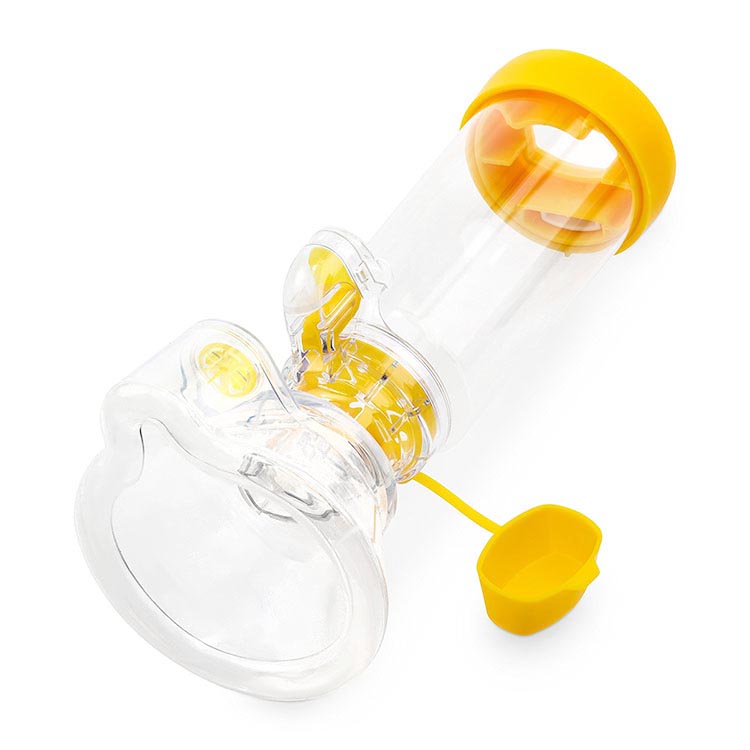

DL-07 PETG Anti static Spacer for Aerosol

Spacer Body Size:  φ52*142mm
Volume: 175ml
Mouthpiece: 22.5*15.5mm
Materials: Anti-static PETG
Availability:
  • DL-07 PETG

  • NADE

  • 100

  • 1 year

  • China

Product Description

DL-07 汇总

Brief description

Transparent, anti static, with flow signal whistle & flow indicator

Specification

Mouthpiece
(5 years+)

Infant Mask

(0-18 months)

Child Mask

(1-5 years)

Large Mask
(5 years+)

Item Code

DL-07 PETG-N

DL-07 PETG-I

DL-07 PETG-C

DL-07 PETG-L

Weight

8363g

83g

87g

107g

Small Mask (0 - 18 months) Anatomically shaped face mask creates a secure seal help parents and caregivers administering aerosol medications to infants.

Medium Mask (1 - 5 years) Slightly larger mask will provide a secure seal as the child grows. Help administer aerosol medications to naughty children and who refuse to inhale the MDIs.
Mouthpiece (5 years+) Guidelines recommend patients be transitioned to a mouthpiece product as soon as they are able – usually around 5 years of age.
Large Mask (5 years+) Suitable for patients who may have difficulty with a mouthpiece, or who prefer the security a mask provides (e.g. elderly or older youth).


The above age range is only for general reference.
You can choose the most suitable one according to the actual situation.


Feature

dl 07 petg 结构

Designed with
Flow indicator is for better count of inhalation times visually. Flow signal whistle for better control
Three sizes of mask
Soft transparent face mask provides superior fit with face. Infants and children feel comfortable with it The superior fit also helps reduce drug loss. The material is latex free liquid silicon rubber.
Medical material adopted.
The materails we used are all medical standard which must be healthy to human body. We are responsible to every patient
Detachable parts
Spacer parts are detachable, soak spacer parts in lukewarm water with liquid detergent for 15 minutes, rinse in clean water, then let air dry in vertical position.


面罩

The Face mask is made of latex free medical silicon rubber. Three sizes of mask (Small, Medium, Large) to fit spacer. Masks are used to ft inhaler mouthpiece spacers.

Specification

Spacer Body Size:

52 x 142mm (bottom diameter x height )

Volume:

175 ml

Mouthpiece:

22.5*15.5mm (top of mouthpiece dimension)

Spacer Body Weight:

63g

Mask Weight:

Small:19.7g  Medium:23.7g  Large:43.8g

Materials:

100% latex free; silicone rubber, anti-static PETG and TPR.

Warranty:

One year for defects in materials and workmanship.

Shipping Carton Size

43*37*43cm

Others:

OEM accepted; body printing avaliable; color alterable(Quantity≥2000)


Packaging

微信图片_20190722094945
