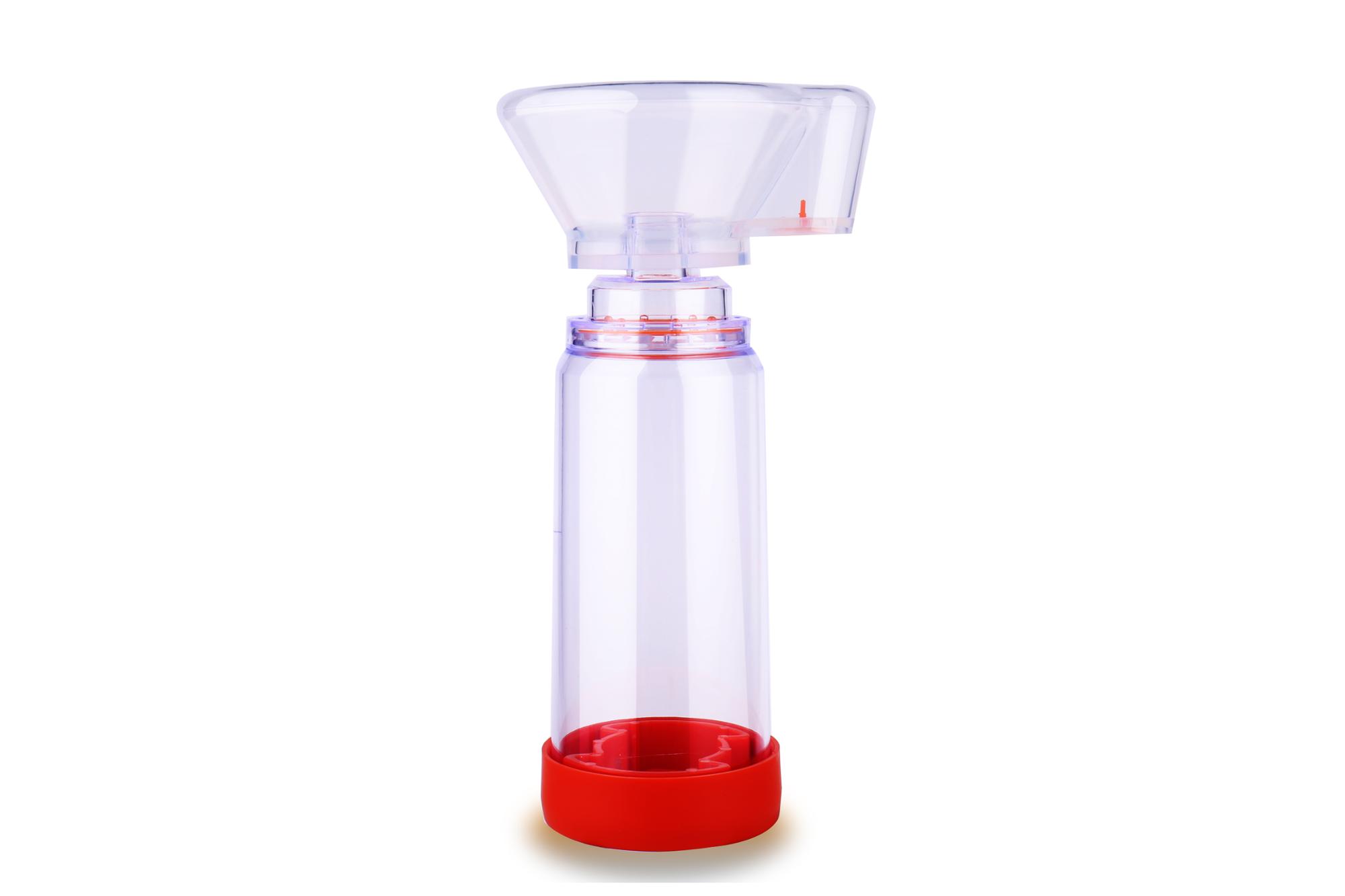

DL-01 PP Anti static Spacer for Aerosol

Spacer Body Size:  φ52*131mm
Volume: 175ml
Mouthpiece: 22.5*15.5mm
Materials: anti-static polypropylene
Availability:
  • DL-01 PP
  • NADE
  • 100
  • 1 year
  • China

Product Description

DL-01 PP 汇总DL-01 PP 汇总包装

Brief description

Simple, portable, anti static, no flow indicator, flow signal whistle is optional

Specification

Mouthpiece
(5 years+)

Infant Mask

(0-18 months)

Child Mask

(1-5 years)

Large Mask
(5 years+)

Item Code

DL-01 PP-N

DL-01 PP-I

DL-01 PP-C

DL-01 PP-L

Weight

40g

60g

64g

84g

Small Mask (0 - 18 months) Anatomically shaped face mask creates a secure seal help parents and caregivers administering aerosol medications to infants.
Medium Mask (1 - 5 years) Slightly larger mask will provide a secure seal as the child grows. Help administer aerosol medications to naughty children and who refuse to inhale the MDIs.
Mouthpiece (5 years+) Guidelines recommend patients be transitioned to a mouthpiece product as soon as they are able – usually around 5 years of age.
Large Mask (5 years+) Suitable for patients who may have difficulty with a mouthpiece, or who prefer the security a mask provides (e.g. elderly or older youth).

The above age range is only for general reference.
You can choose the most suitable one according to the actual situation.


Feature

DL-01 PP 特点

1.  Newly developedvery sensitive visual flow indicator, easily letting you know the correct speed of breathe.
2. Anti-static medical ABS material, improve the MDI delivery and lung deposition rate.
3.  It is more compact and lightweight to put in the pocket so that you can take it with you while on the way.
4.  It is made of shatter-resistant material, which will allow your spacer always keep in good condition.

Specification

Spacer Body Size:

52 x 131mm (bottom diameter x height )

Volume:

175 ml

Mouthpiece:

22.5*15.5mm (top of mouthpiece dimension)

Spacer Body Weight:

40g

Mask Weight:

Small:19.7g  Medium:23.7g  Large:43.8g

Materials:

100% latex free; silicone rubber, anti-static polypropylene and TPR.

Warranty:

One year for defects in materials and workmanship.

Shipping Carton Size

43*37*43cm

Others:

OEM accepted; body printing available; color alterable (Quantity2000)
