WGZ-500B Portable Turbidity Meter

Minimum Principle: 90°scattered light
Minimum readout(NTU): 0.01 NTU
Measuring range(NTU): 0-50, 0-500
Basic error (F.S): ±2%
Availability:
  • WGZ-500B

  • NADE

  • DC 1.5V, 5 AA alkaline dry cells AC 220V/50Hz DC7.5V 0.2A power supply adapter

  • 1

  • 1 year

  • China

Product Description

WGZ-2B

1. WGZ Series scattered light turbidity meter is used for measuring the scattering degree of the lights generated by the insoluble grain matters suspended in water or transparent liquids, with capability to characterize the content of these suspended grain matters.

2. It adopts the Formazine standard solution of turbidity specified in international standard ISO7027, and NTU as the measure unit.

3. It can be broadly applied in the measurement of turbidity in power plants, waterworks, treatment stations of domestic sewage, beverage factories, environmental protection departments, industrial water, wine and pharmacy industries, epidemic prevention divisions, hospitals, and etc.


Features

1. Portable type, AC & DC power supply, low power consumption, suitable for field and lab use.

2. Equipped with multi-functional microcomputer, keyboard, and RS232 serial communication interface can be connected to the printer, and big-screen backlit LCD screen can display date, time, measuring value and unit together.

3. Configured with auto power-off function and low voltage indicating, cuing users to change battery, to ensure exact and effective measurement.

4. Reliable quality: adopting low-drift and high-accuracy integrated circuit, efficient and time-proof light source(100,000 hours life), effectively ensuring long reliable performance.

5. Unique structure and high-accuracy light path system, effectively ensuring exactness and repeatability.

6. Measuring range can be automatically changed or manually setted. Mode: NTU, FTU, EBC, degree(Unit), ppm, mg/L, %. Standard calibration value can be setted as user’s requirement; the equipment can choose one to 7 points auto-correction.

7. The imbedded clock memory & storage system can store the measurement & correction data in real time, and can store and transfer 20 groups of the measurement data for long time, and can be used for the historic reference.

8. The quick automatic correction, with the prompt of the self-diagnosis information, rapid and stable response, reliable maintenance-free operation.

9. According to ISO turbidity measuring standard.

10. Equipped with chrominance compensation system, can effectively avoid the interference from the tested material to get correct measuring result.

11. Light source: LED.


Specification

Model

WGZ-500B

WGZ-2B

WGZ-3B

WGZ-4000B

Minimum Principle

90°scattered light

Minimum readout(NTU)

0.01

0.001

0.01

0.001

Measuring range(NTU)

0~50

0~500

0~10

0~100

0~500

0~10

0~100

0~1000

0~10

0~100

0~1000

0~4000

Basic error (F.S)

±2%

Repeatability

≤0.5%

Zero draft(F.S)

±0.5%(0.02 NTU)

Power supply

DC 1.5V, 5 AA alkaline dry cells

AC 220V/50Hz DC7.5V 0.2A power supply adapter

Meter dimension

22X9X7.5cm

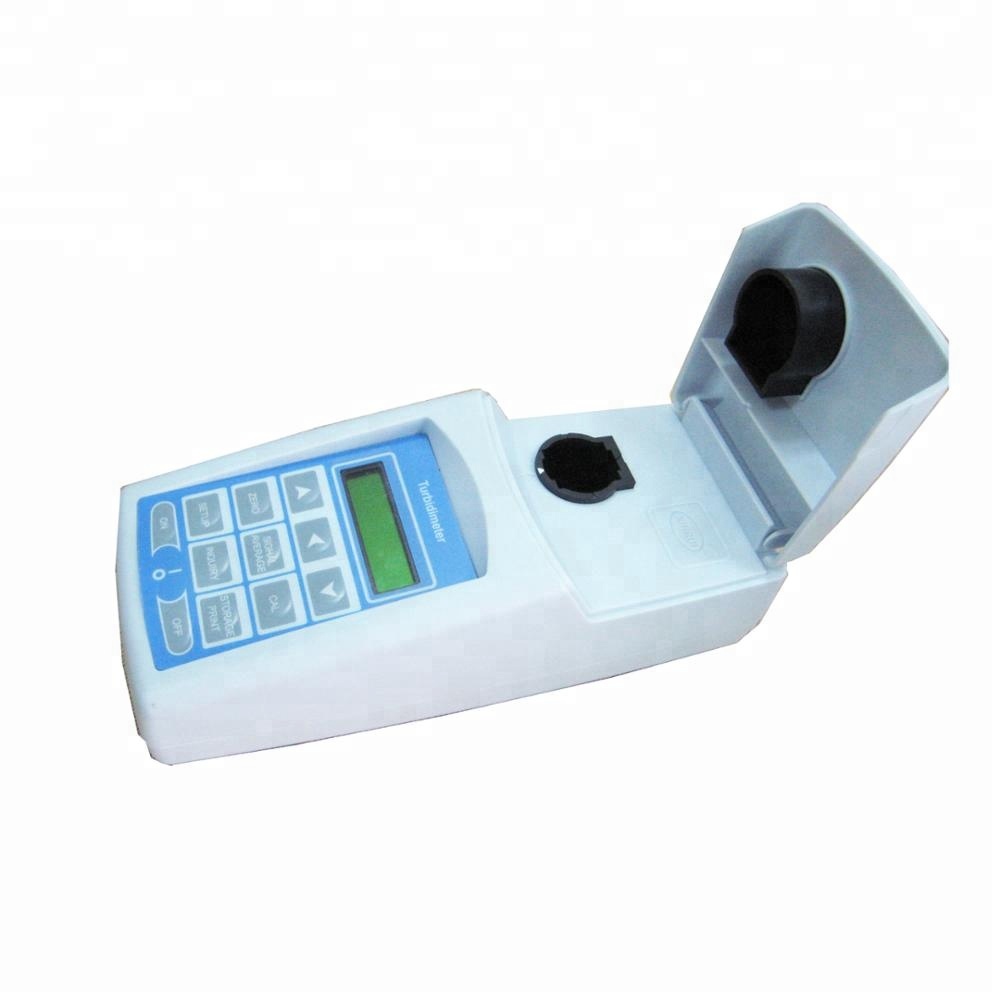

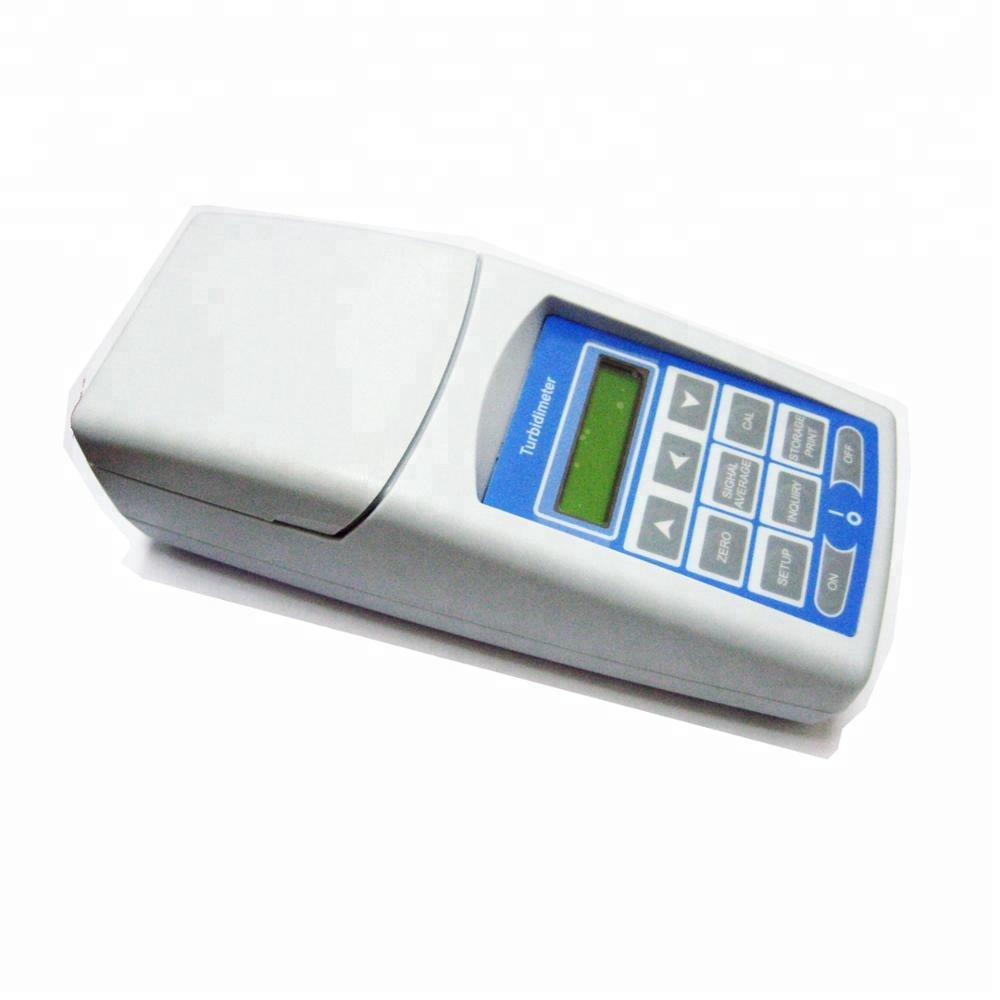

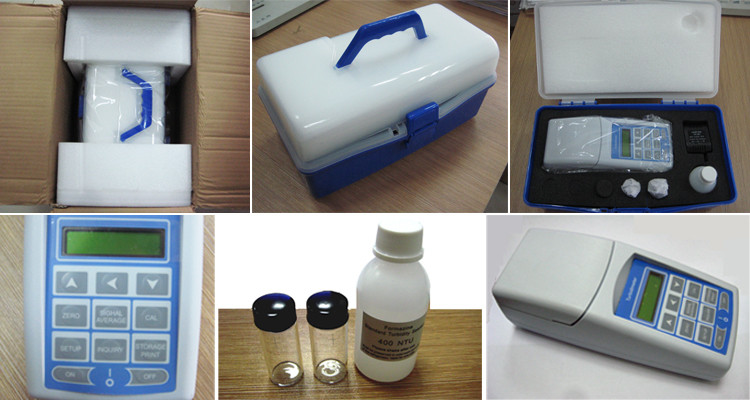

Detailed Images
