SHP-150
NADE
AC 220V/50Hz
1
1 year
China
Product Description
Serve for environmental protection, hygiene and anti-epidemic, pharmaceutical test, workstock and aquatic products etc. Which applied in scientific research institute, college and manufacture department. It is a dedicated constant-temperature equipment for analysis of water body, BOD test, cultivation and storage of bacteria, moulds and microorganisms, plant cultivation and seed-breeding test.
Features
1.Working chamber is made of high quality corrosion-resistant stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Dual-layer toughened glass observation window. The shelf is made of stainless steel, and can be adjustable. It is easy and convenient to use. With a beautiful and novel appearance.
2.The compressors with over-pressure and under-pressure proteced device. Intelligent refrigeration without frost. Have self-checking on-and-off control programme, low noise, long life, low temperature fluctuation.
3.Omnidirectional tridimensional heating technolgy, assure temperature within the working chamber even. With independently-controlled light inside to observe the objects.
4.Reasonable designed air channel structure, breeze airflow circulating designed, to assure the temperature within the working chamber even. Equipped with 220V power socket, it is convenient for BOD test.
5.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
6.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.
7.D Models have 10 segments programs of temperature-controlling, realize temperature’s stepped programme operation
8.F Models have 30 segments programs of temperature-controlling, realize temperature’s stepped programme operation
9.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Optional)
Specification
Model | SHP-80 SHP-80D SHP-80F | SHP-150 SHP-150D SHP-150F | SHP-250 SHP-250D SHP-250F | SHP-360 SHP-360D SHP-360F | SHP-450 SHP-450D SHP-450F | SHP-750 SHP-750D SHP-750F | SHP-1000 SHP-1000D SHP-1000F | ||
Chamber volume(L) | 80 | 150 | 250 | 360 | 450 | 750 | 1000 | ||
Environmental condition | Temperature 5～30℃ | ||||||||
Maximum relative humidity 80% | |||||||||
Altitude up to 2000m | |||||||||
Power | AC220V,50Hz | ||||||||
Range | 0℃～70℃ | ||||||||
Temperature | Resolution | ±0.1℃ | |||||||
Fluctuation | ±0.5℃ | ||||||||
Uniformity | ±1℃ at 37℃ | ±1.5℃ at 37℃ | |||||||
controller | PID microprocessor controls, touch type, numeral manifestation | ||||||||
Sensor | Platinum gold resistor PT100 | ||||||||
Timer | Wait on time,wait off time(Max.99hr,Min.1min) | ||||||||
Material | Internal | 304 mirror finished stainless steels | |||||||
External | 08F | ||||||||
Dimension(mm) | Internal | 400×400 ×500 | 500×400 ×750 | 550×500 ×900 | 650×600 ×950 | 700×650 ×950 | 850×800 ×1100 | 950×900 ×1150 | |
external | 550×645 ×1150 | 650×645 ×1425 | 700×750 ×1575 | 800×850 ×1730 | 850×910 ×1730 | 1000×1050 ×1875 | 1100×1150 ×1980 | ||
Net weight | 82KG | 94KG, , | 119KG | 165KG | 195KG | 247KG | 315KG | ||
Consumption power | 470W | 670W | 830W | 1110W | 1530W | 2260W | 3100W | ||
Shelf dimension(mm) | 334×380 | 434×380 | 484×480 | 584×580 | 634×630 | 784×780 | 880×875 | ||
Shelve(Supply/most) | 2/5 | 2/10 | 2/13 | 3/13 | 3/13 | 3/17 | 3/18 | ||

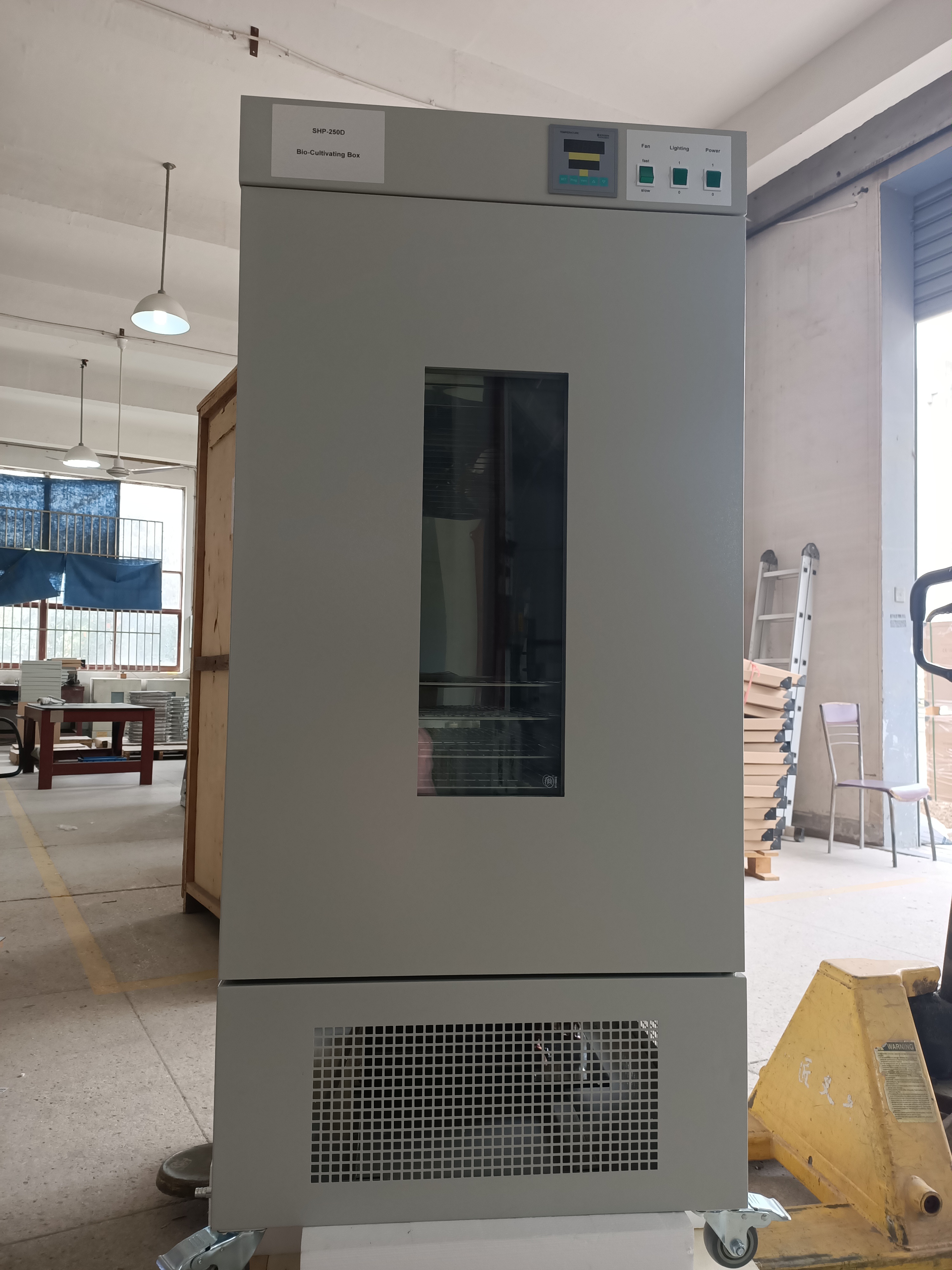

Real photos show
