The instrument is designed and made as per the National Standard GB/T213 “Test Methods for Heat of Coal”, GB/T384 “Test Methods for Calorific Value of Petroleum Products”, the National Measurement and Determination Specification JJG672 “Oxygen Bomb Calorimeter”, as well as the Shanghai Company Standard “Q/YXYY-10 XRY-1 Oxygen Bomb Calorimeter”. It has been widely used to determine heat value of coal, oils, tar, and paraffin, etc. It is the desired instrument for power plants, smelting, cement, and petrochemical, scientific research institutes, and colleges and universities.
1. The instrument adopts a high precision temperature sensor and a high performance A/D converter, so it us precise.
2. It uses a microprocessor to form the intelligent temperature controlling system, so it can accurately control temperature in high accuracy.
3. It can print out test data automatically. It is automatic and it is easy to be operated.
1. Heat capacity: 14000~15000J/K;
2. Temperature measurement range: 10 ~ 35°C;
3. Temperature resolution: 0.001 °C;
4. Repeatability error: ≤0.2 % (Grade C);
5. Endured pressure in oxygen bomb: 20 MPa;
6. Operation environment temperature: 15 ~ 28°C (Ambient temperature); Temperature fluctuation is not more than 1 °C during a test;
7. Ambient humidity: less than 85%;
8. Power supply: AC 220V±5%, 50 Hz;

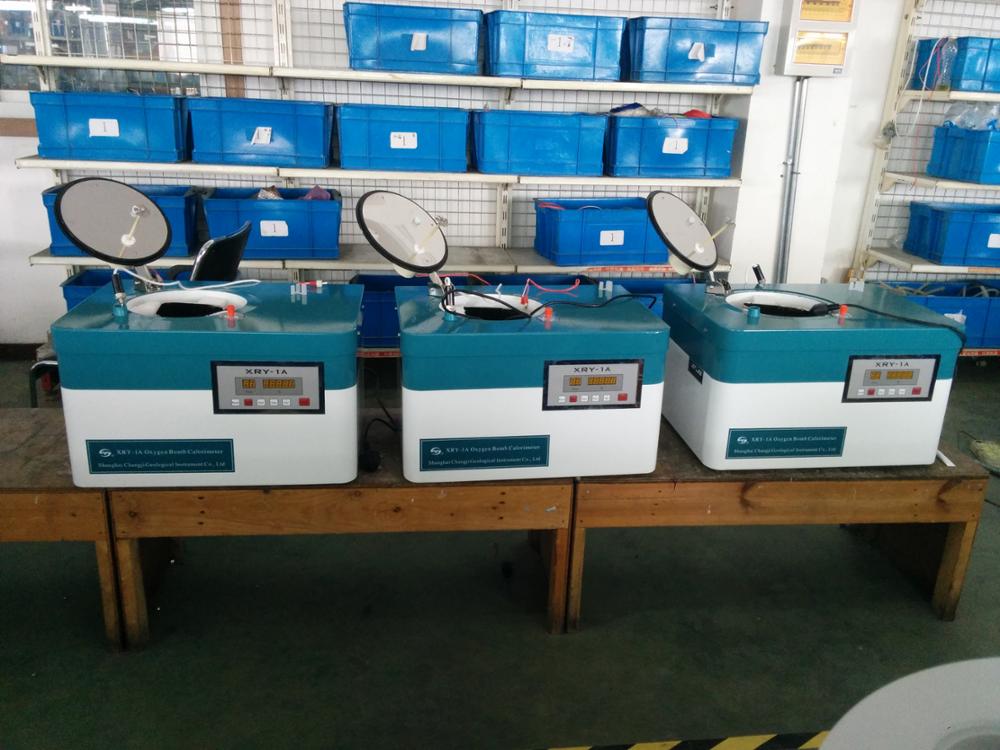

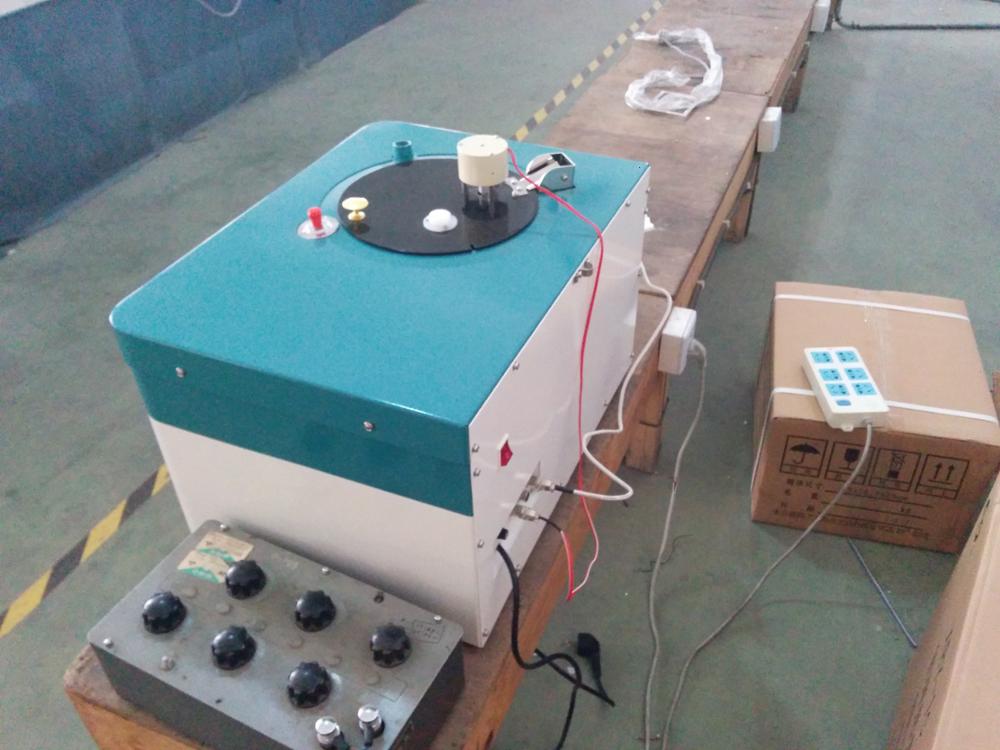

Real photos show

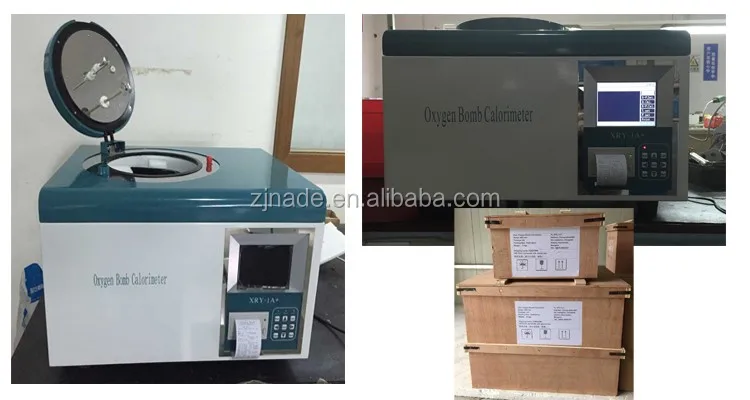

Packaging & Shipping
Our Packaging Details:
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Q: How long is the delivery time? A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment? A: One year. We can provide you lifelong technical support.
Q: What is the payment terms? A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ? A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence? A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
