Nade BYZ-1 Lab fully automatic surface tensiometer with platinum plate method used in petroleum, printing, chemical, textile

  • 1 year
  • N/A
  • China
  • BYZ-1
  • Platinum plate method
  • 0-400mN/m
  • 0-400mN/m
  • ±0.1mN/m(Twice distilled water at 20℃)
  • ±0.1mN/m(Twice distilled water at 20℃)
  • Wide viewing angle backlit LCD display
  • Usually 3-5seconds
  • AC220V
  • CNC-button
  • According to the external thermostatic bath(option): 0℃~110℃

Product Description

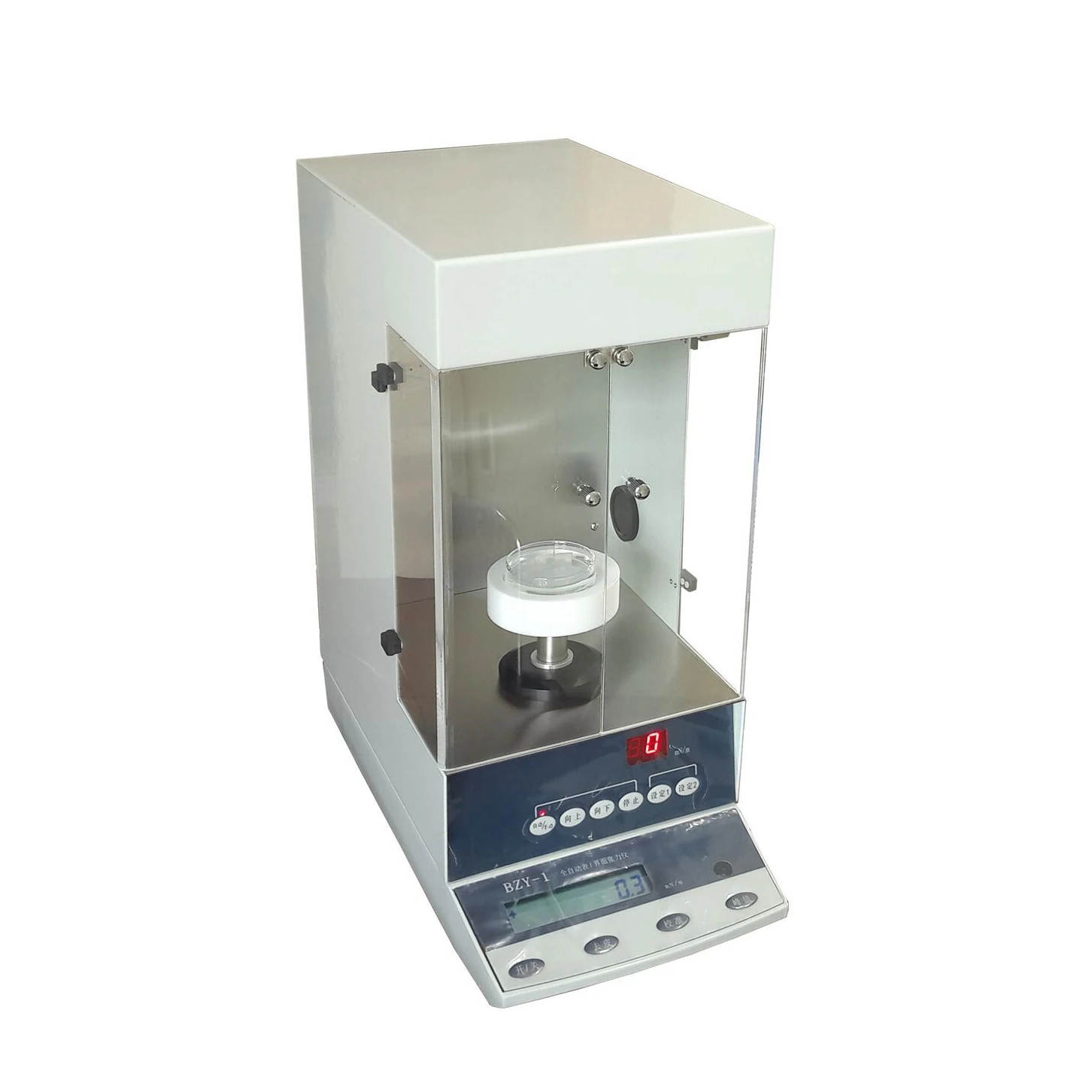

BYZ-1 Fully automatic surface tensiometer

Introduction

BYZ series of automatic surface tension meter is the laboratory measuring instrument that uses physical methods instead of chemical methods to determine liquid surface/interfacial tension. It can quickly and accurately test the tension values of various liquid-gas surfaces and liquid-liquid interfaces, which is widely used in petroleum, chemical, pharmaceutical, printing, textile, electric power and other industries. Besides, it adopts an electromagnetic force closed-loop force measurement system, single-chip microprocessor control, automatic measurement, easy operation, high test result accuracy, high stability, high repeatability, and high linearity.

Nade BYZ-1 Lab fully automatic surface tensiometer with platinum plate method used in petroleum, printing, chemical, textile

Features

Compared with other surface tension meter, BZY series of surface tension meter including but not limited to the following advantages:

1. Automatic measurement,reduce human error to a minimum.

2. Automatic reading of surface tension balance value.

3. One key to reset(any numberbetween0-400mN), absolutely correct.

4. One key to calibrate,with standard weights attached, rapidly and accurately.

5. The platinum plate method,fully comply with the requirement of basic principle of Wilhelmy platinum plate , so as to provide possibility of measuring under the following environment:

² Changes of surface tension due to the presence of surfactants value.

² The measurement of high viscosity liquids (automatically read balance value).

² Interfacial tension is not dissolved between two kinds of liquid, such as oil and water.

6. Sensor has sensitive response, high accuracy, in order to provide possibility of excellent repeatability and comparability of data.

7. Simple operation, without the need for any external computer control.

8. Small machine error, more effective control of all kinds of errors in testing process.

9. Sample temperature cup, sample temperature detection device and the external thermostatic bath can be chosen.

Specification

Model

BYZ-1

Operation Method

The sample table is automatically raised and lowered, and the measurement is fully automatic.

Measurement

Platinum plate method

Measuring Range (mN/m)

0-400mN/m

Clear Range (mN/m)

0-400mN/m

Standard Error (mN/m)

±0.1mN/m(Twice distilled water at 20℃)

Repeatability (mN/m)

±0.1mN/m(Twice distilled water at 20℃)

Display

Wide viewing angle backlit LCD display

Reading Time

Usually 3-5seconds

Power Supply

AC220V

Control

CNC-button

Temperature Range

According to the external thermostatic bath(option):

0~110

Note: 1mN/m=1dyne/cm

With a complete set of matching as below, the equipment will achieve a constant temperature. (external thermostatic bath, temperature sensor and sample temperature cup are the aotional accessories of BYZ-1)

Nade BYZ-1 Lab fully automatic surface tensiometer with platinum plate method used in petroleum, printing, chemical, textile

Packaging & Shipping

Nade BYZ-1 Lab fully automatic surface tensiometer with platinum plate method used in petroleum, printing, chemical, textile

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade BYZ-1 Lab fully automatic surface tensiometer with platinum plate method used in petroleum, printing, chemical, textile

Company Information

Nade BYZ-1 Lab fully automatic surface tensiometer with platinum plate method used in petroleum, printing, chemical, textile

Nade BYZ-1 Lab fully automatic surface tensiometer with platinum plate method used in petroleum, printing, chemical, textile

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
