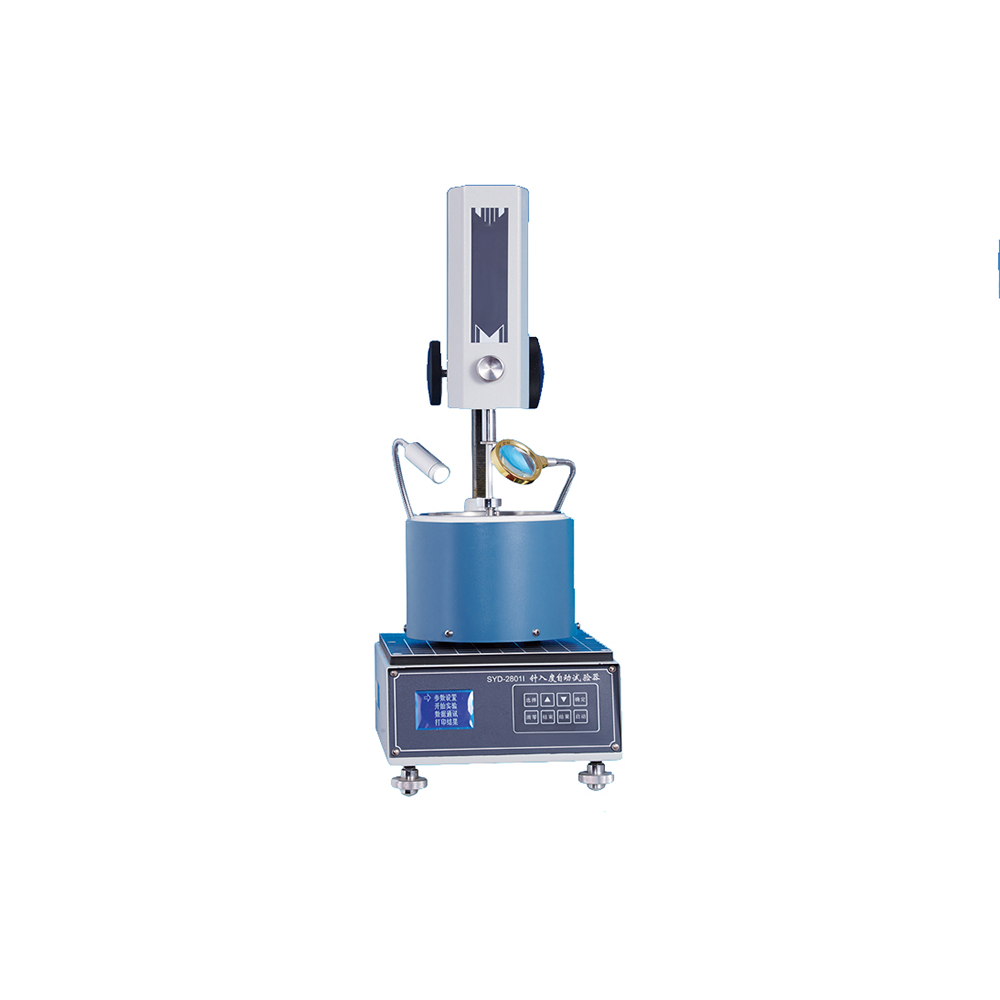

NADE SYD-2801I Automatic Penetrometer(Low temperature) for Asphalt/Bitumen,liquid petroleum asphalt,industry and food materials

  • China

  • NADE

  • AC 220 V±10%, 50 Hz

  • 0 penetration~600 penetrations

  • 0.1 penetration

  • 0s~60 s, and the error is less than ±0.1 s

  • 200 W

  • 5.5L

  • 25±0.1 ℃

  • 30 groups

  • a magnetic stirrer

  • 280mm*350mm*700mm(L*W*H)

Product Description

Product Description

1. The instrument is designed and made as per the standards GB/T4509 Standard Test Method for Penetration of Bitumen, T0604 Bitumen Penetration Test in the standard JTJ052-2000 Specifications and Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering and ASTM D5.

2. The instrument is suitable to determine the penetration of highway bitumen, modified asphalt, as well as liquid petroleum asphalt or residue of emulsified asphalt after evaporation.

3. The penetration of bituminous materials is expressed as the distance that a 100 g±0.05 g standard needle vertically penetrates into the sample without measurable fraction in 5 s at a constant temperature bath of 25±0.1 ℃. It is used for evaluating the consistency of asphalt. The larger the penetration is; the thinner and softer the asphalt is.

4. The instrument can also be used for inspecting industry materials such as solid granule, powder, colloid, as well as food materials such as cream, glycine, etc. It has been widely used in the field of food industry, highway and traffic departments and other departments.

Specification

Model

SYD-2801I

Measurement range

0 penetration~600 penetrations

Resolution

0.1 penetration

Timing range

0s~60 s, and the error is less than ±0.1 s

Heating power

200 W

Temperature controlling accuracy

25±0.1 (Note: the ambient temperature should not be higher than 20 )

Data saved

30 groups

Constant temperature bath: harden glass container

Bath volume

5.5L

Temperature range

(5.0~100.0)

Temperature accuracy

±0.1

Total consumption

less 1800W

Outline dimension

420mm×380mm×900mm(L*W*H)

Power supply

AC(220±10%)V,50Hz

Stirrer

a magnetic stirrer

Standard needle

2.5±0.05 g and it conforms to the requirements of GB/T4509 and T0604

Shifting holder

It has two ways to adjust the height of standard needle, so it is convenient to let the needle tip just touch the sample surface

Power supply

AC 220 V±10%, 50 Hz

Outline dimension

280mm×350mm×700mm(L*W*H)

Notes:

1. The reagent and equipments for installing the instrument are supplied by end-users themselves.

2. The Mercury thermometer needs to be purchased by the end user. Parameter:0~50 ℃, scale division is 0.1 ℃).

3. The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.

4. PLS read the operation manual and industry standard before using the instrument.

NADE SYD-2801I Automatic Penetrometer(Low temperature) for Asphalt/Bitumen,liquid petroleum asphalt,industry and food materials
