1 year
/
China
NADE
MFT-900
±2kpa, error≤0.5%F.S.
0.1pa
Error≤±1%F.S.
-0.1~0.2MPa/-0.1~0.7MPa/-0.1~1.0MPa
2μm
10-inch touch color touch screen
AC100V-240V, 50/60Hz, power ≤200W
Host: about 30kg
External micro printer
≥5 years storage
Product Description

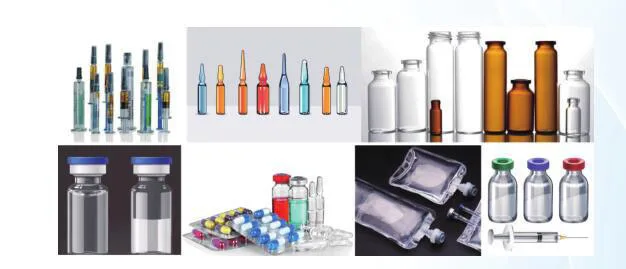

It is suitable for sealing integrity testing of pharmaceutical packaging to prevent moisture, oxygen, and microorganisms from contaminating products. Medicines: bottled, bagged, boxed, ampoules, vials, cartridges, prefilled needles (PFS), (BFS),(FFS), etc.
Spray cans: plunger spray cans; bag-lined spray cans; "energy jacket" spray cans; flexible tube spray cans.
1.Comply with USP <1207>, ASTM F2338 standards.
2.Semi-automatic detection, suitable for small batch and multi-variety testing.
3.Non-destructive non-destructive testing, high accuracy, repeatability, sensitivity.
4.The instrument is used for vacuum pressure difference detection.
5.The leak rate can be automatically converted into defect aperture μm.
6.Database storage of test results for easy quality management.
7Touch-type man-machine interface, simple and quick operation: after setting/selecting the test program, only need to manually put in/take out the test sample.
Advantage function:
1.Automatically test the flow rate and change the aperture size during the whole process.
2.Automatic leak rate calibration function.
3.Equipped with standard leaks (standard positive bottles, with third-party certification).
4.Four-level user authority management .
5.With audit trail function.
6.Split design, the test chamber is located above the host, and various test chambers can be provided according to different product types.
7.We also provide users with supporting services related to tightness testing,including positive bottle production, standard leak rate/annual leak verification, new sample mold customization, sample methodological parameter development and verification, etc.
8.The test cavity is customized according to customer needs to ensure that the test cavity is fully matched with the customer's product, and rapid and sensitive testing.
| Differential pressure sensor | ±2kpa, error≤0.5%F.S. |
| Differential pressure resolution | 0.1pa |
| 0.1pa pressure sensor | Error≤±1%F.S. |
| Test pressure range | -0.1~0.2MPa/-0.1~0.7MPa/-0.1~1.0MPa |
| Minimum detectable aperture | 2μm |
| Display method | 10-inch touch color touch screen |
| Voltage | AC100V-240V, 50/60Hz, power ≤200W |
| Weight | Host: about 30kg |
| Audit trail | ≥5 years of storage Multiple event logs, which can be queried according to time |
| Authority management | Login with username and password, level 4 authority |
| Print function | External micro printer |
| History record | ≥5 years storage |
| Data backup | Support U disk to export data |
| Signal output | (4-20) mA, RS485, 12V alarm output |
| Interface | Ethernet USB RS485 |
Details:
