Other
China
3-12MPa
(big)40cm2
0.6-1.6μm(common 1μm
Helium or nitrogen(helium is more optimized)
Product Description

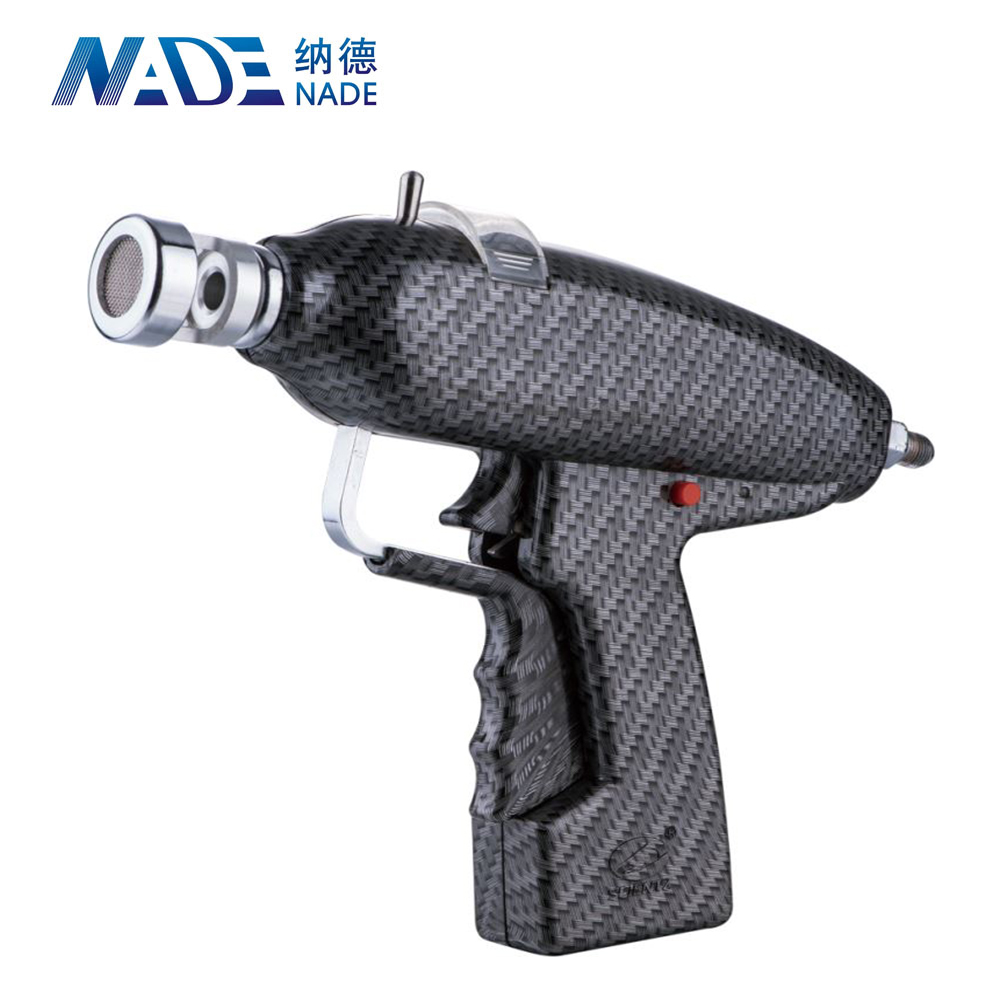

NADE Portable Gene Gun GJ-1000 for Plants , animals and other substance
It is a all-new gene-delivery technical,also a physical method,in which the genetic material or other substances attached to a high-speed microbomb are shot directly into the cells.
It is a more advanced gene-transferred technology internationally.
The pneumatic gas gene gun can make a wide range of cells types instantly stable and highly-efficient transformation.
The gene-gun has a special rupture which generates a gas shock ware.The degree of Helium-pressure that drives the carrier film is determined by the different rupture films used in the process.
Within a proper atmospheric pressure the different rupture films penetrate the DNA-coated microcariers into the target cells at the bottom of the bombardment chamber.
It is applicable in gene-transformation of plants and animals,cell cultures,embryos,bacteria and small animals.
It has fast,simple,safe and efficient features.
A unique circular bombardment transformation room,removeable for easy cleaning and disinfection,low lost.
Standard configuration:host,vacuum pumps,breakage film,carrier film,stainless steel net,tungsten powder.
Experimental conditions:In vitro,from the body,plants(in vitro)
Target region:(big)40cm2
Pressure range:3-12MPa
Targe Type Animals:cell and organ culture
Plants:The smaller of the whole plants,cell culture,explant,yeast,bacteria and other micro-organelles,chloroplast,mitochondria
Voltage:220V/110V
Gas:Helium or nitrogen(helium is more optimized)
Metal Microcarriers:Ø0.6-1.6μm,(CommonØ1μm)
