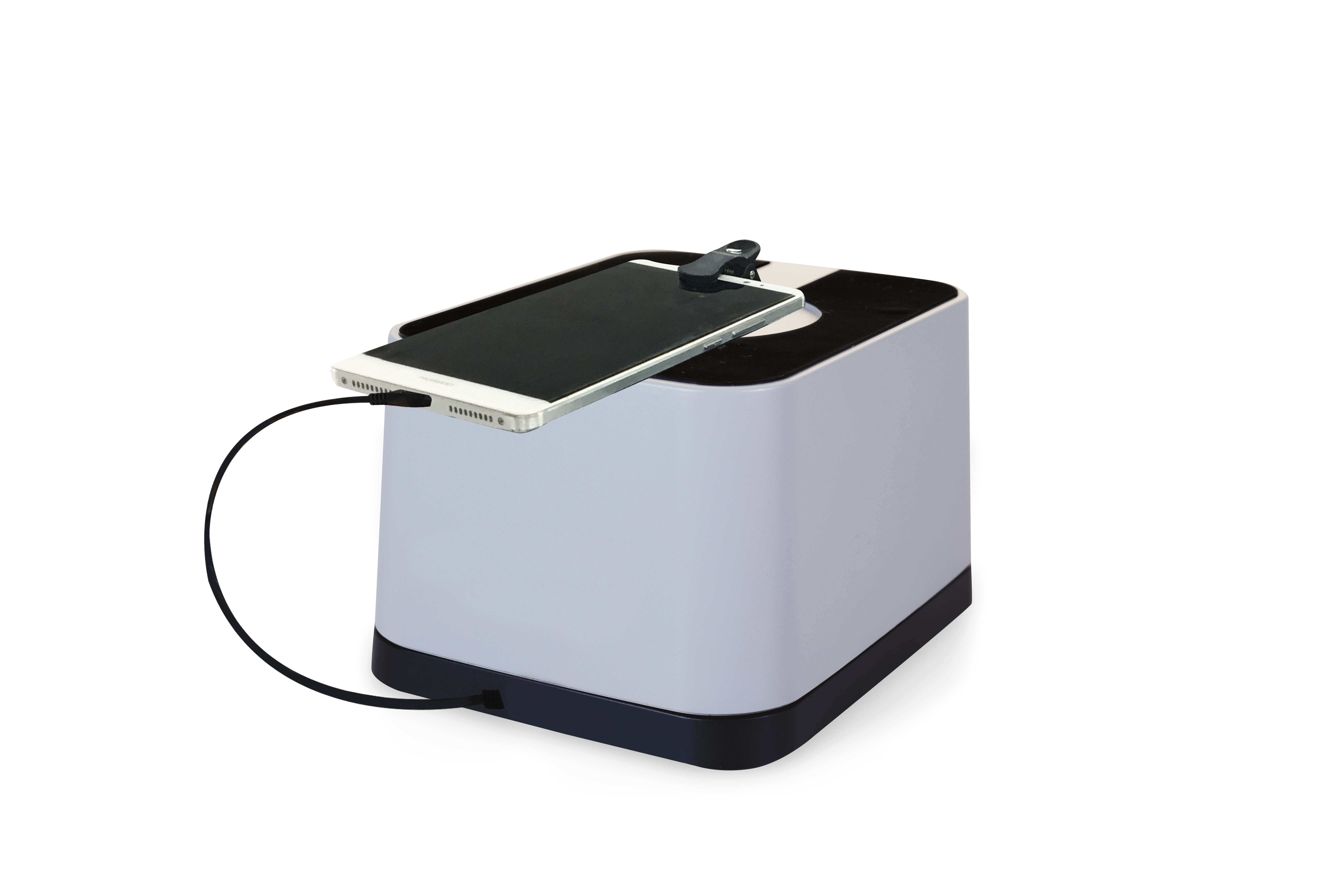

NADE GelSMART Blue Light Gel Document Imaging System

  • China

  • NADE

  • GelSMART

  • 470nm epi blue light

  • Yes

  • 10 x 10cm

  • Amber, using when observing or cutting gels

  • 216 x 168 x 54 mm

  • 211 x 161 x 108 mm

  • 1.2 Kg

  • 12V / 1.5A AC power adapter

  • for Android 4.4 and above or iOS9.0 and above

Product Description

Product Description

NADE GelSMART Blue Light Gel Document Imaging System NADE GelSMART Blue Light Gel Document Imaging System

The GelSMART gel imaging system can be used for qualitative analysis of nucleic acid and protein in purification and /or separation application, or colony counting application.

Functions & Applications

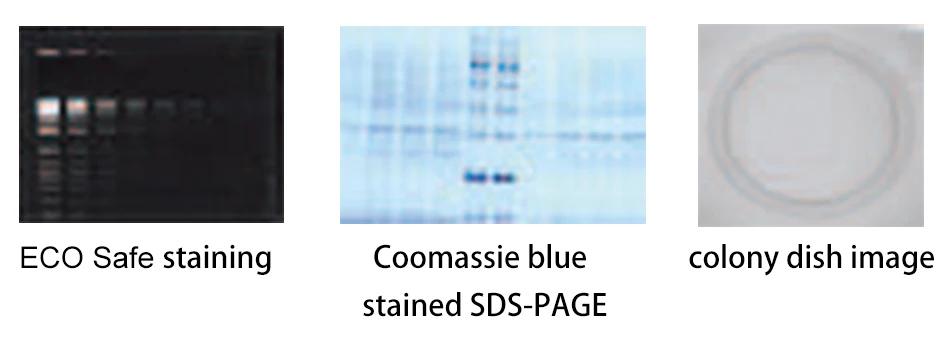

GelSMART facilitates fast access to acquire highquality images of electrophoresis gel or transfer membrane for analysis using smartphone/ tablet. With epi-blue instead of ultraviolet light source, GelSMART is able to safely and efficiently visualize stained DNA signals after gel electrophoresis.In addition, Coomassie blue stained SDS-PAGE and colony dishes can be observed with the light plate

mounted on the GelSMART.Optionally you can control the complete imaging system via an app on your smartphone or tablet.NADE GelSMART Blue Light Gel Document Imaging System

Features:

• Compact foot print with a field of 10×10cm

• Simple operation of experiments and quick acquisition of results

• Epi-blue light diminishes UV exposure to lab personnel and DNA damage in the sample

• Adjustable epi-blue light source emits light with high intensity and minimum heat for better light control

• Filter holders can accommodate most popular smartphones/tablets

• Optional light-weight app

Specification:

Specifications

GelSMART

Light Source

470nm epi blue light

White Light Plate

Yes

Filter Protective Shield

Amber, using when observing or cutting gels

Viewing Area

10 x 10cm

Compatible Bye

DNA: ECO Safe, SYBR Safe, GelGreen Protein:Lightning Red, Silver/ Coomassie blue,SYPRO Ruby

Light Source (L x W x H)

216 x 168 x 54 mm

Light Source Cover (L x W x H)

211 x 161 x 108 mm

Total Size (L x W x H)

216 x 168 x 128 mm

Weight

1.2 Kg

Power Supply

12V / 1.5A AC power adapter

Optional app

for Android 4.4 and above or iOS9.0 and above

Detailed Images

NADE GelSMART Blue Light Gel Document Imaging System

Packaging & Shipping

NADE GelSMART Blue Light Gel Document Imaging System

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

NADE GelSMART Blue Light Gel Document Imaging System

Company Information
FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
