Laboratory Centrifuge
NADE
D1524R
China
200-15,000rpm in 100rpm increments.
21,380xg, step: 10xg
1.5/2mL*24, 0.5mL*36, PCR8*4, 5mL*12, 5mL*18
30s-99 min; HOLD (continuous running)
-20℃- 40℃
≤56dB
DC brushless motor
Single phase, 200-240V, 50Hz, 500W
332(Width) * 553(depth) * 283(height)
30kg
Product Description

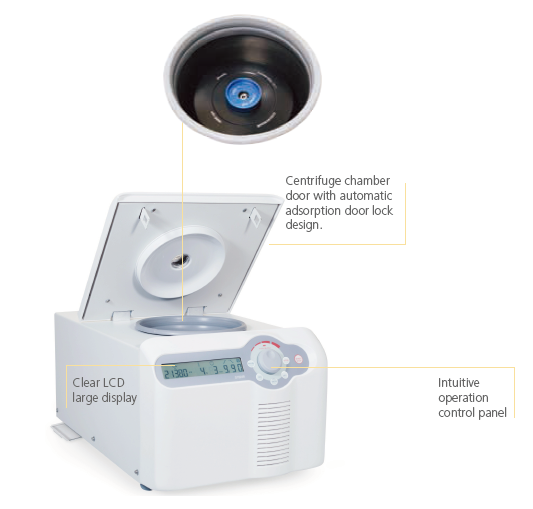

• Centrifuge chamber door with automatic adsorption door lock design, can be closed with a single finger.
• Precooling, the compressor will automatically start cooling as long as the set temperature is lower than the ambient temperature.
• Sound indicator to prompt that the upper cover is closed to maintain the temperature inside the chamber, after centrifugation.
• Advanced R290 fluorine free refrigerant, low carbon and environmental protection.
• Maximum rotation speed can be achieved even at 4℃.
• Up to 9 program storage capacity according to experimental needs.
• Biosafety rotor, three-layer seal for biosafety
• High-strength aluminum alloy, three layered biosafety to withstand numerous high temperature and high pressure sterilizations.
• Five rotors with 0.2mL, 0.5mL, 1.5mL, 2mL and 5mL centrifuge tubes/ PCR tubes capacity.
• An external condensation tank prevents condensate within the centrifuge chamber.
| Specifications | D1524R |
| Max. Speed | 15,000rpm (200-15,000rpm) in 100rpm increments. |
| Max. RCF | 21,380*g, step: 10*g |
| Capacity | 1.5/2mL*24, 0.5mL*36, PCR8*4, 5mL*12, 5mL*18. |
| Temperature setting | -20℃- 40℃ |
| Timing | 30s-99 min; HOLD (continuous running) |
| Motor Type | DC brushless motor |
| Safety Performance | Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system. |
| Power Requirements | Single phase, 200-240V, 50Hz, 500W |
| Dimensions(mm) | 332(Width) * 553(depth) * 283(height) |
| Weight | 30kg |
| Acceleration and deceleration time | 25s↑25s↓ |
| Noise | ≤56dB |
| Other functions | Rotation speed/RCF switchover, inching operation, running process indicator, sound alert. Acceleration/ deceleration in 9 steps, program storage capacity. |
Detail image:
