NADE 0.5~50ml High precision Replaceable PP material Repeater Pipettor Tips

Share to:

NADE 0.5~50ml High precision Replaceable PP material Repeater Pipettor Tips



Inquire

Classification:
Other, Other
Brand Name:
NADE
Model Number:
NO
Place of Origin:
Zhejiang, China
Tips volume:
0.5-50ml
Tips material:
PP
Suitable equipment:
StepMate Stepper
Package:
2pcs/bag, 5pcs/bag

Product Description

Product Description

Introduction

The TIPS are optional accessory for our StepMate stepper.

When placing order, please inform us the required capacity and ordering quantity.

Capacity	Cat. No.	Description
0.5ml	17900032	0.5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing
1.25ml	17900033	1.25mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing
2.5ml	17900034	2.5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing
5.0ml	17900035	5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing
12.5ml	17900036	12.5ml, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing
25ml	17900037	25mL, piston PE-HD, cylinder PP, 1 packing, 2pcs/packing with 1 pc adapter
50ml	17900038	50mL, piston PE-HD, cylinder PP, 1 packing, 2pcs/packing with 1 pc adapter
25/50ml adaptor	17400083	1 packing, 10 pcs/packing

Applications

StepMate stepper tips are particularly suitable for dispensing of fluids with high viscosity, high vapor pressure etc.
Tips are made from high-quality materials(cylinder: PP, Piston: PE-HD) without soft lubricants or other additives.

Based on the principle of positive displacement, stepmate stepper is designed for trouble-free and reliable dispensing of liquids, especially for high viscosity, high density and high vapor pressure.
The 48-step dispensing allows for enhanced accuracy and usability.

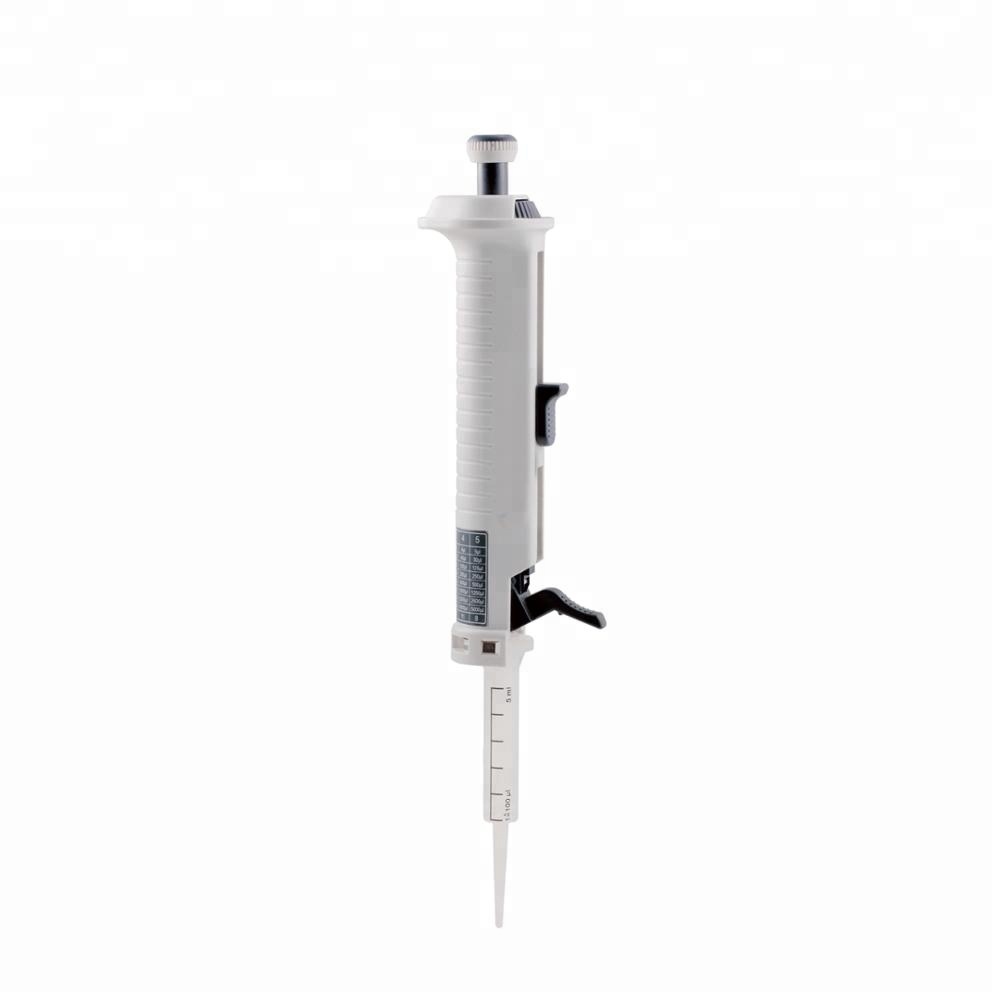

Features of StepMate

• Light and ergonomic solution provides easy usability
• Single-handed operation
• Volume range from 10μL to 5mL
• Up to 48 dispensing steps
• Maintenance free
• Equipped with durable tip
• insertion lever
• Fits seven sizes of disposable polypropylene syringes from 0.5mL to 50mL

Specification

Structure

A: Optimized for smooth dispensing of even the smallest volumes
B: Adjusting wheel, Five easy-to-select settings control dispensing volume
C: By pushing the slide upwards, the syringe is filled up
D: The stop lever secures the syringe inserted
E: Replaceable tips

Operation guide:
1.Find the required dispensing volume in the table.
2.Using the adjusting wheel to set the required volume.
3.Select and inserting suitable tips.
4.Follow the maximum dispensing steps.
