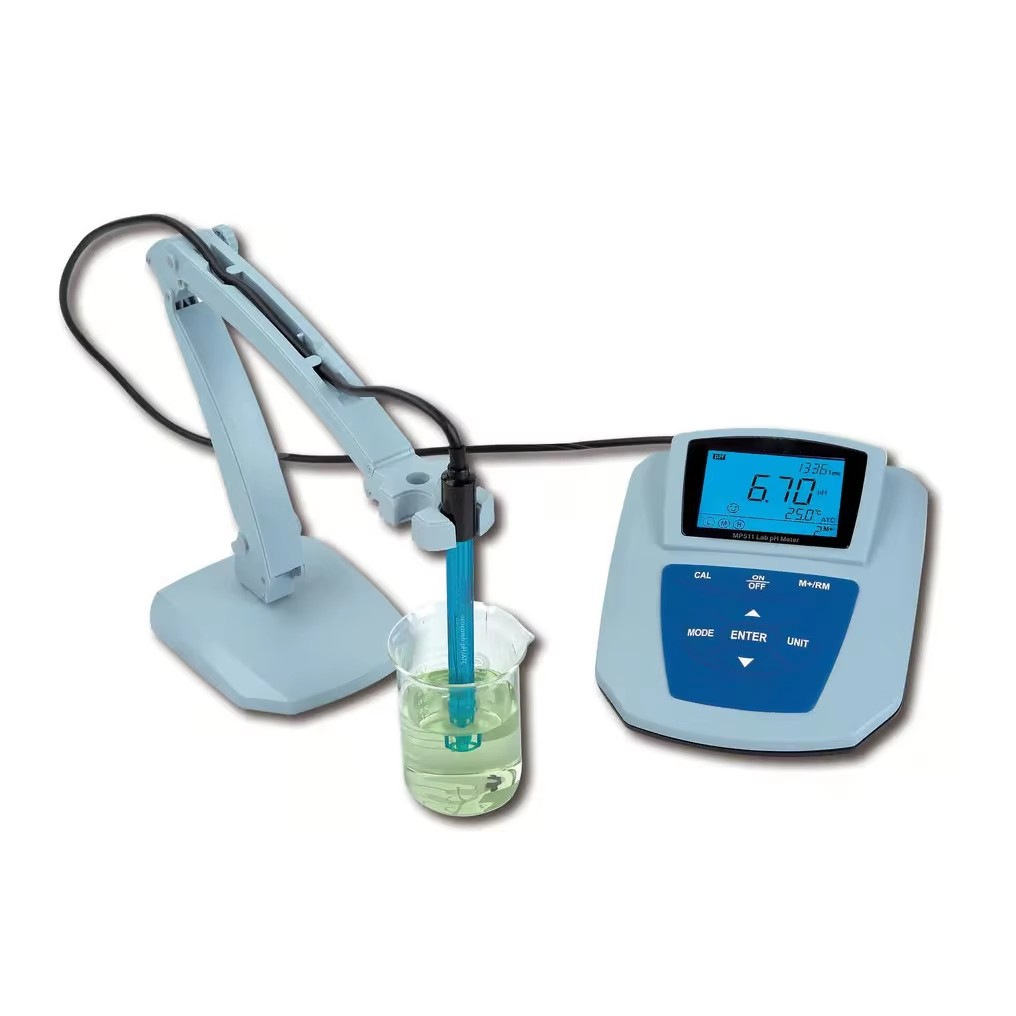

MP511 Laboratory Benchtop PH Meter

pH Range: (-2.00 - 19.99) pH
pH Accuracy: ±0.01pH±1 digit
mV (ORP) Range: -1999mV - 0 - 1999mV
Temp. Range: -10C -110C
Availability:
  • MP511

  • NADE

  • DC9V/0.5A

  • 1

  • 1 year

  • China

Product Description

MP511

MP511 Laboratory pH Meter

The MP511 Laboratory pH Meter is an essential laboratory-grade benchtop pH meter. It is suitable for measuring the pH value of
aqueous solutions with moderate ionic strength, such as surface water, lake water, and industrial wastewater. It can be said that
it is applicable to most water quality analysis fields. Especially in basic laboratory testing and educational scenarios, with its
advanced digital processing technology, it consistently provides fast, accurate, stable, and more precise pH measurement, and is

deeply trusted by users.


Features:

This meter has an outstanding combination of advanced electronic technology, sensor technology and software design. It is suitable for laboratory use to measure pH and ORP value of regular water solutions. With its built-in microprocessor chip, elegant designs and user-friendliness, this meter has the following features:

- Meets international GLP standards, with intelligent functions such as automatic calibration, automatic temperature compensation, data storage, auto. timing measurement, RS232 output, clock display, parameter setting and self-diagnosis.
- With digital processing technology, the response speed and accuracy are greatly improved, :)appears when readings are stable.
- Automatic pH buffer solution recognition. Buffer solution selectable: USA series, NIST series and China series.
- The meter meets IP54 protection level. All of the sockets are protected by the silica gel caps.




Specification

Model

MP511







 pH

Range

(-2.00 – 19.99) pH

Resolution

0.1/0.01 pH

Accuracy

±0.01 pH±1 digit

Input Current

≤2×10⁻¹² A

Input Impedance

≥1×10¹² Ω

Stability

±0.01 pH±1 digit/6h

Temp. Compensation Range

(0 – 100)°C (Automatic or Manual)



mV (ORP)

Range

-1999mV – 0 – 1999mV

Resolution

1mV

Accuracy

±0.1% FS



Temp.

Range

-10°C – 110°C

Resolution

0.1°C

Accuracy

5 – 60°C±0.5°C±1 digit; Other±1°C







 Other Technical Parameters

Data storage

600 groups

Storage content

serial number, date, time, measurement value, temperature value, ATC or MTC state

Communication connector

RS232

Power

DC9V/0.5A

IP rated

IP 54 dustproof and splash-proof

Size and weight

160 × 190 × 70mm/880g

Quality and safety certification

ISO9001:2008 and CE
