Laboratory Multi-branch Glass Vacuum filter Manifolds solvent filtration system

  • Other
  • NADE
  • T-50
  • China
  • 300ml
  • glass
  • 1 branch
  • 47mm or 50mm
  • laboratory liquid filtration
  • can provide together or separately

Product Description

Introduction

Multi-branch Manifolds filter is a solvent filtration equipment of laboratory. Compared with the glass sand core , It is more convenient , efficient for the operator who needs to filtrate several samples at the same time . Because each filter holder have individual control valve , only one set vacuum pump can sustain the single or Multi-branch manifold filter operate together . Production equipments are imported from German DMG numerical control machine .

Material use sanitary stainless steel , acid and alkali resistance , corrosion resistance , high temperature resistance , can tolerate the high temperature of 180℃ , easy to sterilization in high temperature . Under the strict quality control , production process make the product more superior quality guarantee . Advanced production equipment , high-quality production of raw materials , perfect production technology and technical support is the guarantee of excellent products , make our manifolds vacuum filteration domestic professional leading brand .

Features

1.In the filtering process , the integrated solutions , supporting pollution-free diaphragm vacuum pump . A complete set of filter system can work in the laboratory , clean room , ultra clean bench .
2.High temperature resistance , easy to sterilization in high temperature .
3.It is provided with reliability , superior performance , good appearance, environmental protection , high efficiency , energy saving , etc .

Applications

Widely used for chemistry analyse , biochemical , pharmaceutical , sanitation test , environment test , water quality analyze , food , beverage and science research and so on . The product conforms to the United States pharmacopoeia standards , can test three or six samples at the same time , high sensitivity , and simple operation , according to the needs of the operator , choose different material of membrane filter , filtering of different samples , such as suspended solids , bacteria , chlorophyll etc , suitable for solids filtration of laboratory .

Specification
Model
Funnel valve
pore size
Connection
Holder
1-Brandch, glass
300ml glass
20um
Ground Joint
SS316L
3-Brandch, glass
300ml glass
20um
Ground Joint
SS316L
6-Brandch, glass
300ml glass
20um
Ground Joint
SS316L
1-Brandch, SS316L
300ml SS316L
100um
Integral SS316L
SS316L
3-Brandch, SS316L
300ml SS316L
100um
Integral SS316L
SS316L
6-Brandch, SS316L
300ml SS316L
100um
Integral SS316L
SS316L
The type of the membrane filter Ø47 or Ø50

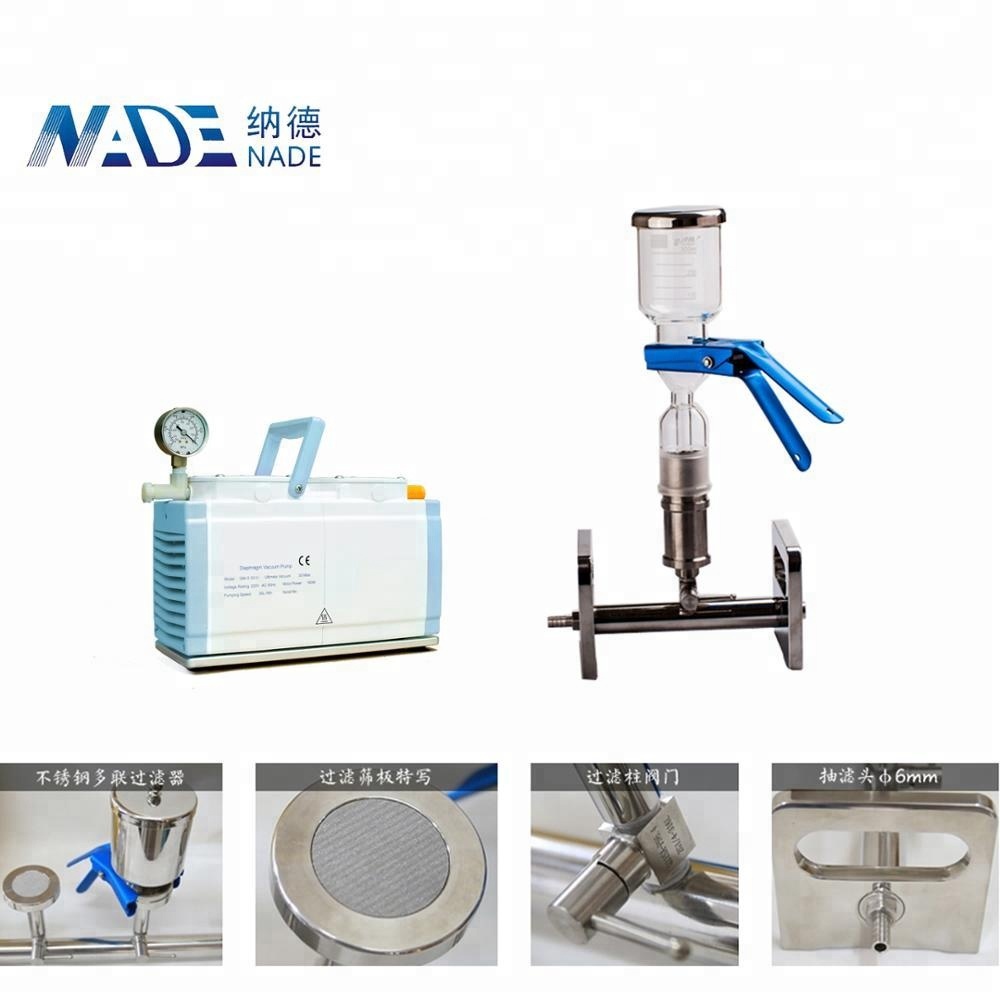

Detailed Images

Filter include:

1.Glass funnel (300ml) / Stainless steel funnel(300ml) SS316L

2.Borosilicate glass filter head / Stainless steel filter head SS316L
3.Stainless steel holder ( SS316L)
4.PTFE valve
5.Clamp of aluminum alloy
6.Lid

Filter system solvent consists of solvent filter components and vacuum pump and microporous membrane.

User may prepare vacuum pump and microporous membrane at local place or purchase from us. Pls click blw picture to see more information.
