LGJ-18E
NADE
Product Description

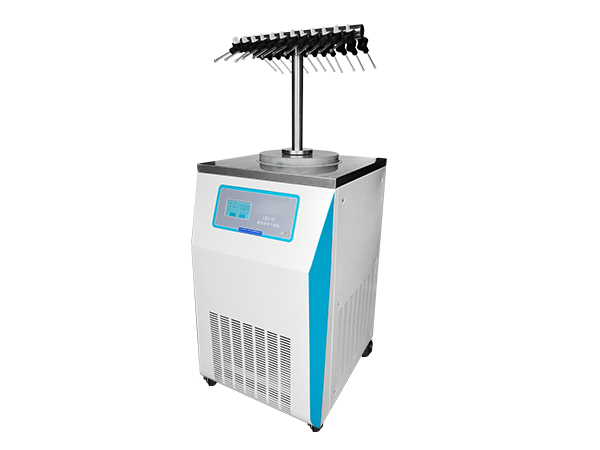

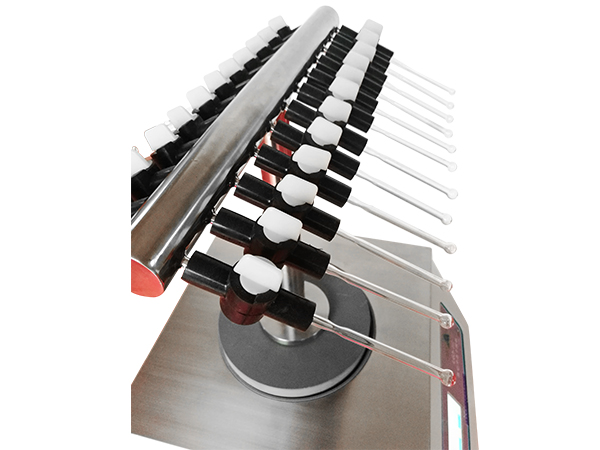

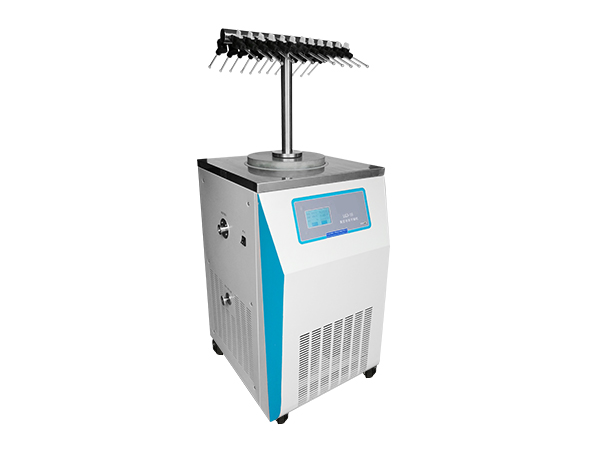

LGJ-18E T-type Experimental Freeze Dryer has 24pcs standard rubber sealing valves and 24 ampules can be mounted. Special requirements can be customized. It is suitable for the preservation of bacteria, fungi and other microbial strains in the ampoule tube. The ampule sealing method is often used in the laboratory. The samples are sealed in small ampoules after freeze drying. It has the advantages of long preservation period, small variation, ease of large-scale preservation and wide applications.
It is suitable for the preservation of bacteria, fungi and other microbial strains in the ampoule tube. The ampule sealing method is often used in the laboratory. The samples are sealed in small ampoules after freeze drying. It has the advantages of long preservation period, small variation, ease of large-scale preservation and wide applications.
1. All-in-one structure , small size, no external flange, easy to use, no leakage.
2. All materials in contact with the product use inert materials to meet the requirements of the GLP.
3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.
4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.
5. With sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.
6. Patented gas diversion technology, and strong ice holding ability.
7. World- known brand compressors, high efficiency, long life, low noise.
8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.
9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.
10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.
11. Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.
Specification
Model | ND-18E |
Specification | T-type |
No. of tray | 24pcs |
Cold trap temperature | ≤-60℃，optional≤-80℃ |
Cold trap dept | 400mm |
Cold trap dia. | Ф270mm |
Ice collecting capacity | 6kg/24h |
Pumping speed | 4L/S |
Ultimate vacuum | ≤5pa |
Power | 1400w |
Weight | 105kg |
Overall dimensions | 630×580×970mm |
-80℃ overall dimensions | 810×580×950mm |
T-trype frame dimensions | 430×480mm(H*L) |
Flask frame sizes | 610×600mm(H*L) |
Cooling mode | wind cooled |
Defrosting mode | air cooled |
Optional accessories and functions | flask frame(suitable for wide-mouth bottle or flask) |
cold trap temperature -80℃ | |
vacuum pump anti-returned oil device | |
cold trap electrical heat defrosting | |
oil mist filter system | |
ampule sealing device | |
imported vacuum pump |
