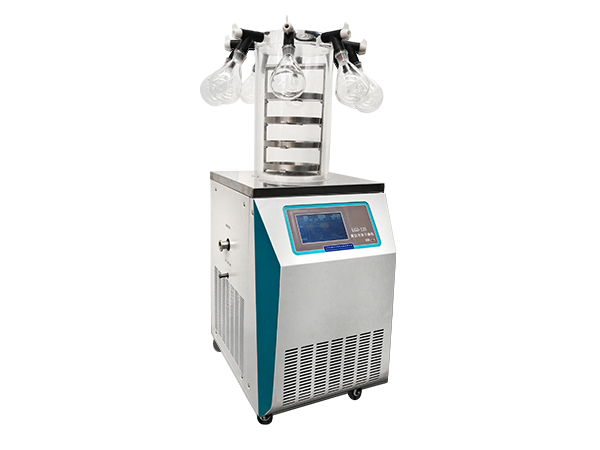

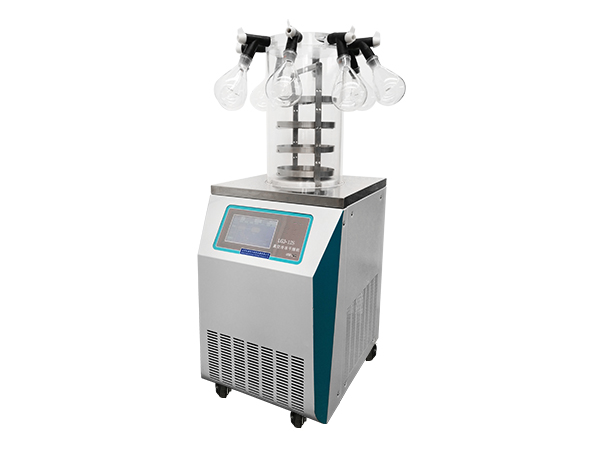

LGJ-12SC Multi-Manifold Standard Type Experimental Electric-heating Vacuum Freeze Dryer

LGJ-12SC Multi-Manifold Standard Type Experimental Electric-heating Vacuum Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and mantain their chemical and biological characteristics after being watered. It is a kind of the small vertical freeze-drying unit with shelf heating and programmable functions.

Applications:

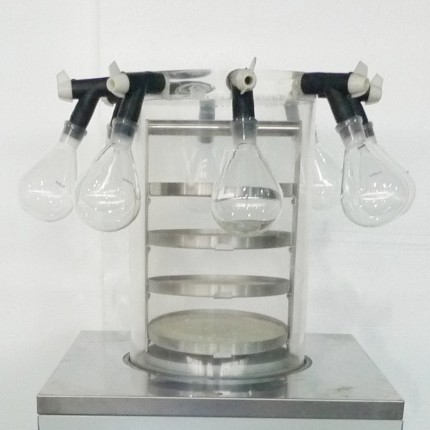

Suitable for freeze-drying of bulk (liquid, pasty, solid) conventional materials. It can be equipped with a flask outside the drying chamber to dry the frozen material on the inner wall of the bottle. At this time, the flask is connected to the manifold as a container. The material in the flask is heated by room temperature, and the multi-manifold switch can be used to remove or install the flask at any time without downtime.

1. All-in-one structure , small size, no external flange, easy to use, no leakage.

2. All materials in contact with the product use inert materials to meet the requirements of the GLP.

3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.

4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.

5. With sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.

6. Patented gas diversion technology, and strong ice holding ability.

7. World- known  brand compressors, high efficiency, long life, low noise.

8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.

9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.

10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.

11. Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.

12. The shelf electric heating safety .The control systemvoltage (36V) temperature can control the heating rate.

13. Flexible manual + automatic control method, manual exploration process, automatic batch production.

14. Real-time alarm display and historical alarm query function to facilitate fault diagnosis and equipment maintenance.

15. You can set the user level and password, decentralized operation management.

16. Powerful sensor calibration function ensures the long term accuracy of the measured value.

Optional accessories and functions

• cold trap temperature -80℃

• eutectic point tester

• vacuum pump anti-returned oil device

• cold trap electrical heat defrosting

• oil mist filter system

• Vacuum adjustment system

• LYO-MEGA Software System

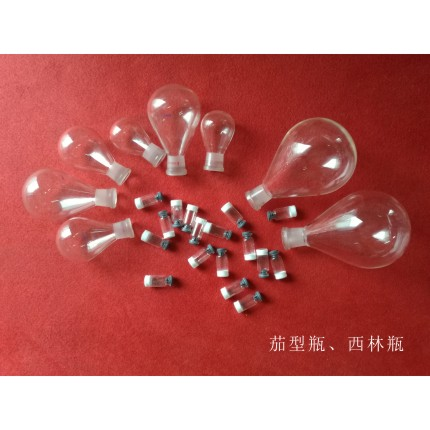

• 50ml flask

• wide-mouth bottle device（600ml/1200ml）

• air filter

• imported vacuum pump
